|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20 sets per month|
|Movement:||Three Dimensional Vibration||Drive Device:||Double Horizontal Vibrating Motor|
|Purpose:||Used For The High Production Capacity Of Coarse Screening, Very Suitable For The Dry Materials Security Screening With Less Large Particles||Material:||Stainless Steel 304, 316L Etc.|
|Discharge Port:||The Fine Material Outlet Is Under The Machine||Advantage:||Large Capacity, Compact Structure, Low Occupancy Height|
Flour Vibro Screen Machine,
3D vibro sieve separator,
Flour multi deck vibrating screen
Stainless Steel Vibro Screen Machine Flow Thru Separator For Flour Impurity Removal
Overview of Low Profile Flow-thru Separator:
Low profile flow-thru separator is also called low-profile vibrating sieve, low profile separator, flow-thru separator, vibro flow-thru separator, inline screen, vibration in-line screen, inline vibro screen, vibrating control screener, direct discharge screen, low profile circular separator, straight-flow separator, flow through inline sifter, flowthru vibrating separator, flow-thru rotary vibrating separator, flow-thru vibro separator , flow- thru vibro screen, flour sifter etc.
The flow-thru separator is a kind of sieving machine with unique purpose, which is developed by our company's t technical personnel after absorbing Japanese technology. It can be widely used in the sieving of flour in the production of instant noodles, the classification of particles in the production of washing powder, the grading of particles in the production of starch, and other industries which require large screening output.
It has the characteristics of high screening accuracy, large throughput, good sealing, easy to combine with the production line, automatic materials and slag discharge, continuous production and so on.
There are two power arrangement modes: single motor and double motors.
Working Principle of Low Profile Flow-thru Separator:

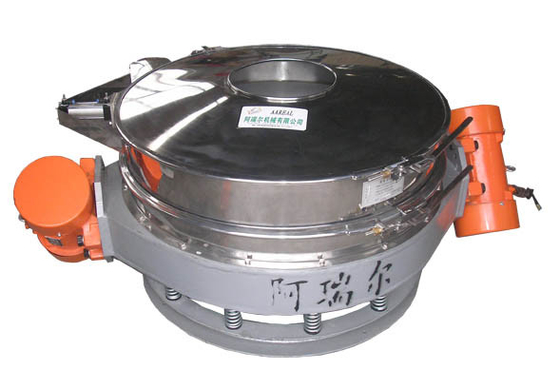

The double motor type is driven by two horizontal vibration motors, which produce three-dimensional vibration. It not only makes the material more evenly distributed, but also removes large particles, keeping the screen surface clean and smooth. And the screening effect is better.
The single motor type adopts single horizontal vibration motor, simple and convenient.
Features of Low Profile Flow-thru Separator:
1. Compact structure, low occupancy height (can be as low as 340mm)
2. Material flow adopts direct-current design.The product is discharged directly from the bottom of the sieve machine, easy to connect with the production line.
3. It is used for the high production capacity of coarse screening, very suitable for the dry materials security screening with less large particles.
4. Small and light.
Technical Parameters of Low Profile Flow-thru Separator:
Application of Low Profile Flow-thru Separator:
Flow-thru separator is often used in flour, starch, washing powder, metal powder, additives, chemical industry, non-mining and other industries for particle and powder’s coarse screening and fine screening.
It can be used in the feeding system of instant noodles, dried noodles, small food, solid drink and so on, to separate the foreign objects in the raw materials, such as flour, starch, milk powder, additives etc.
Standard Dimension Drawing of Low Profile Flow-thru Separator:
Double Motor type, with Pneumatic Gate Valve
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
