Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System

Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System

  • Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System
  • Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System
  • Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System
  • Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System
Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood wooden case (fumigation-free) for small size machine, and plastic film for big size equipment
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel 304, 316L Etc. Available Sieve Machine: 450 Type Filter Sieve Machine, Rotary Vibrating Screen, Vibrating Control Sieve
Function: Screening With Rotary Brush System To Reduce The Clogging Of Sieving Screens Due To Lumped Particles Advantage: The Rotary Brush System Ensures Precise Distribution Of Materials So That They Can Evenly And Equally Flow Across The Screen Mesh
Application: Suitable For Screening Products Like Sugar, Wheat Flour, Spices Like Turmeric, Powder Cosmetics, Active Pharmaceutical Ingredient (API) And Excipients Etc. Work Principle: Particles Too Large To Pass Through Are Brushed Aside To Prevent Clogging Of The Screen
High Light:

920mm Vibrating Screen Machine

,

1120mm Vibrating Screen Machine

,

1420mm single deck vibrating screen

Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System

Overview of Single Deck and Multi-deck Vibro Screen Machine with Rotary Brush System​:
Rotary brush system for single deck and multi-deck vibrating sieve equipment is also known as scraper system. The rotary brush system is designed to keep the screen clear from clogging during operation, and break up any lumps of particles.
  The rotary brush system can be used for multi-screen round separator, single-layer low-profile separator and noiseless high performance vibrating separator. Rotary brush operates independently to the separator at low speed. Lumps are broken apart by horizontal scraping motions and vertical crushing motions between the brush and screen. Particles too large to pass through are brushed aside to prevent clogging of the screen, improving efficiency and productivity of easily clustered material.

It is suitable for materials with the following characteristics:
1. High water content, high moisture level.
2. High oil content.
3. Unrefined products with a mix of impurities and higher size distribution.
4. Products that form lumps easily.

Working Principle of Single Deck and Multi-deck Vibro Screen Machine with Rotary Brush System​:
  The vibrating screen with rotary brush system combine kneading, extrusion, cutting, screening into one.
  Scraper vibrating screen, as its name implies, is to accelerate the screening effect and speed that materials through the screen mesh by giving the material an external force, improving the screening capacity of the vibrating sieve.

Application of Single Deck and Multi-deck Vibro Screen Machine with Rotary Brush System​:
  The rotary brush system for single deck and multi-deck vibrating sieve equipment is used for material that is static, ball shaped and agglomerated during screening. It can shatter these untrue grains, and get a bigger and faster sieving capacity and a higher screening accuracy.
  The screening machine with scraper is suitable for screening of untrue grains which do not meet the requirements after drying, or screening of powder which has the characteristics of adsorptive, easy to reunite, easy to start static electricity and easy to agglomerate, or filtering of the viscous liquid.

Features of Single Deck and Multi-deck Vibro Screen Machine with Rotary Brush System​:
1. Separate and break: suitable for raw, unrefined products with higher size distribution and impurities. Capable of light breaking and separating in one unit, vastly increases productivity.
2. Mobile and adjustable: mobile chassis allows quick relocation. Brush can be raised for fast screen change, cleaning, and maintenance.
3. Simple operation: controlled independently from the separator, via an easily operated control panel.
4. Durable, does not damage screen - brush does not make contact with screen, prevents early wear and tear.
5. Stainless Steel: all contact parts in stainless steel SUS304. Full or partial SUS316L upgrades available.
6. Variable speed brush available on request.

Applicable Models for Single Deck and Multi-deck Vibro Screen Machine with Rotary Brush System​:

TypeNoiseless Vibrating ScreenLow-profile Flow-thru SeparatorMulti-deck Rotary Vibrating Sieve
ModelAY-450AX-600, AX-800, AX-1000, AX-1200AY-600, AY-800, AY-1000, AY-1200

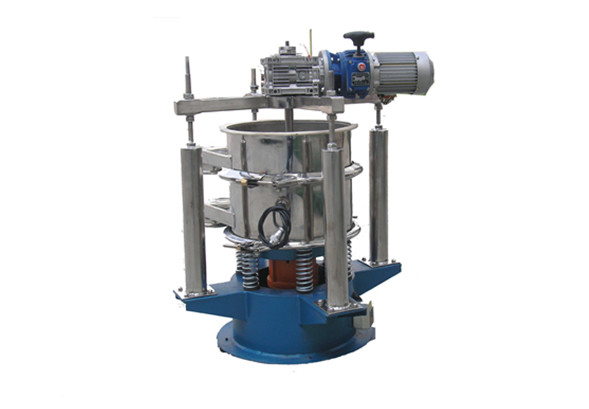

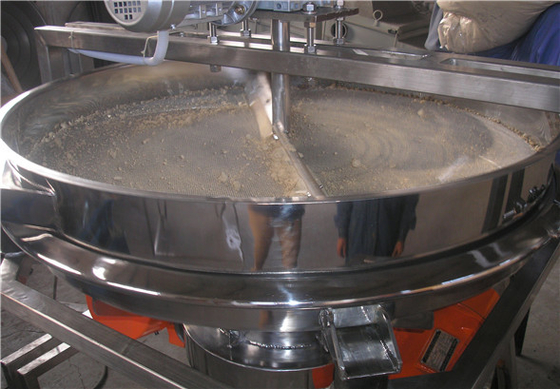

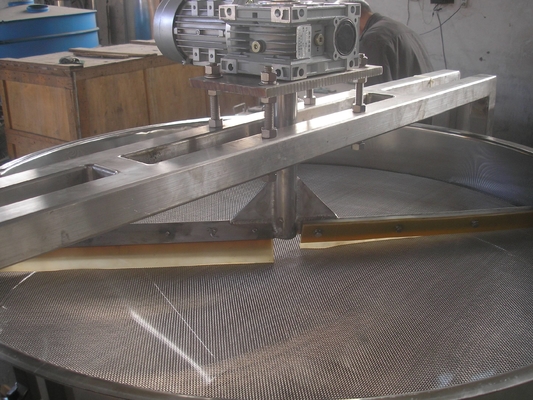

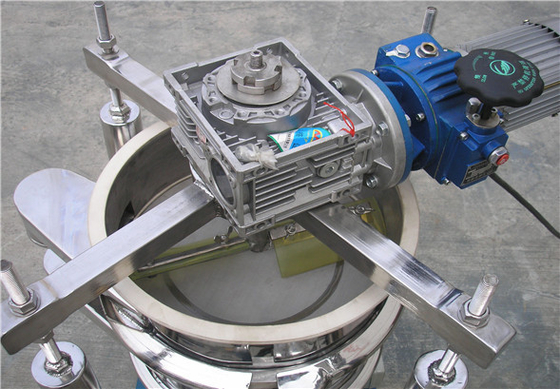

Photos of Some Rotary Brush System for Single Deck and Multi-deck Vibro Screen Machine with Rotary Brush System​:

Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System 0Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System 1
Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System 2Multi Deck / Single Deck Vibrating Screen Machine With Rotary Brush System 3
