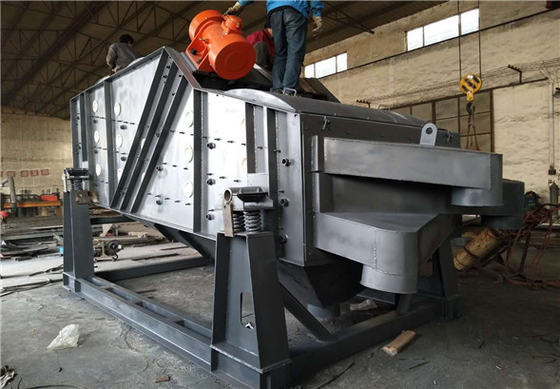

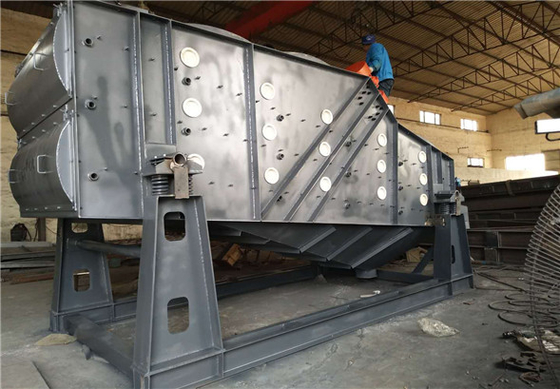

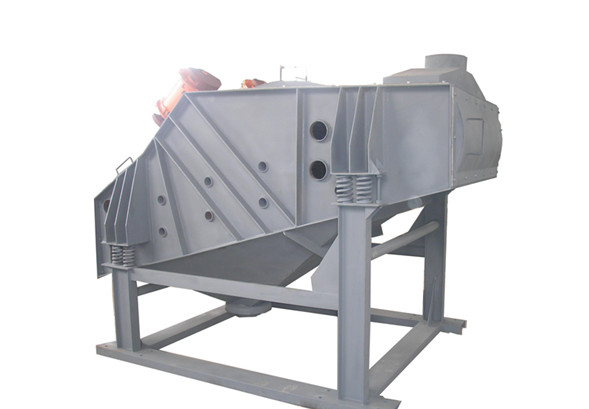

Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve

Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve

    • Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve
    • Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve
    • Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve
    • Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve
  • Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve

    Product Details:

    Place of Origin: China
    Brand Name: AAREAL
    Certification: ISO9001:2015
    Model Number: AG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc.
    Delivery Time: 15~35 work days after order confirmed
    Payment Terms: T/T, L/C
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Movement: Linear Motion Drive Device: Double Horizontal Vibrating Motors
    Screening Features: Use The Principle Of Probability Sieving Material: Carbon Steel, Stainless Steel (optional)
    Alternative Names: Mogensen Screen, Mogensen Sieve, Mogensen Sizer, Mogensen Screener, Mogensen Screening Machine, Probability Sieve Screen Structure: A Group Of Multi-layer Overlapping Screens Whose Gradient Increase From Top To Bottom, And The Mesh Of Which Decrease Progressively
    High Light:

    inclined vibrating screen

    ,

    dewatering vibrating screen

    Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve



    Overview of Rectangular Vibrating Probability Screen Machine​:

    High efficiency rectangular vibrating probability screen machine for dolomite is also called mogensen screen, mogensen sieve, mogensen sizer, mogensen screener, mogensen screening machine, probability sieve, vibration probability screen, vibrating probability screen, vibration probability sieve, vibrating probability sieve and so on. It is a kind of screening machine that actively use the principle of probability sieving.

      The screen surface does linear vibration relying on the vibration excitation device.

      This kind of high efficiency vibration probability screen machine for dolomite has been widely used in metallurgy, building materials, coal and other industrial departments for medium and fine particle size grading.

      Probability vibrating screen adopts multi-layer (usually 3 ~ 6 layer), large dip angle (generally 30°~60°), and large sieve mesh (the screen mesh size is 2~10 times of the separation size) as the screen surface.

      The high efficiency vibration probability screen is a kind of new efficient screening equipment. The moving trajectory of the sieve box is linear. It adopts multi-layer and large inclined angle screen surface. The angle of the screen increases from top to bottom. And using probability theory, the mesh size is larger than the required sieve size, generally 1.2~2.2 times, which greatly improves the screening efficiency and production capacity.

      This series of screening machine is a successful example of the combination of probability theory and engineering practice. Its new design concept, unique structure and screening principle have achieved the perfect screening effect of the probability screen and have a wide application prospect.

      Compared with ordinary screening machine, the high efficiency vibration probability screen machines have a very high screening efficiency and is widely used in medicine, chemical, food and other industries for fine and medium particles screening.



    Working Principle of Rectangular Vibrating Probability Screen Machine:

      The high efficiency vibration probability screen adopts the mesh which is bigger than the sieving granularity. It consists of a frame, two vibrating motors and a group of multi-layer overlapping screens whose gradient increase from top to bottom, and the mesh of which decrease progressively.

      The whole equipment is mounted on a set of elastic elements. High frequency vibration is obtained by the screen through the rotation of vibration motor.

      The mesh size of high efficiency vibration probability screen is generally larger than particle size. As soon as the material enters the screen machine, it disintegrates rapidly, thereby eliminating the mesh clogging phenomenon may caused by the critical particles.



    Features of Rectangular Vibrating Probability Screen Machine:

    1. Uniform material distribution and high screening efficiency.

    2. The production capacity of unit area is large, and the screen mesh is not easy to jam.

    3. Completely enclosed, free of dust, smooth operation, easy to use and maintain.

    4. Several kinds of products with different particle sizes can be produced at the same time

    5. A single high efficiency vibration probability screen machine can separate 2~7 grain size materials at the same time.

    6. The equipment is made of high quality stainless steel, corrosion resistant and long service life.

    7. It is easy to replace the screen. The screen tension is moderate. No cross layer and mesh blockage.



    Selection Tips of Rectangular Vibrating Probability Screen Machine:

    1. The high efficiency vibration probability screen installation method has several forms, such as seating type, hanging type and the combination of the two kinds. Please consider it carefully when selecting.

    2. It has two kinds of vibration source forms: vibration motor and exciter, which are used for different operating environment requirements. When choosing, please determine the voltage system and whether there is explosion-proof requirement or not.



    Main Dimensions of Rectangular Vibrating Probability Screen Machine:

    Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve 0

    Model L L1 L2 B B1 H
    AG-0818 1800 1100 260 820 1160 1800
    2AG-0818 1800 1100 260 820 1160 1900
    AG-1020 2000 1250 300 1020 1380 1850
    2AG-1020 2000 1250 300 1020 1380 1980
    AG-1024 2400 1550 300 1020 1380 2050
    2AG-1024 2400 1550 300 1020 1380 2150
    3AG-1024 2400 1550 300 1020 1380 2400
    AG-1030 3000 2000 300 1020 1380 2200
    2AG-1030 3000 2000 300 1020 1380 2350
    AG-1224 2400 1550 380 1230 1620 2050
    2AG-1224 2400 1550 380 1230 1620 2200
    3AG-1224 2400 1550 380 1230 1620 2450
    AG-1230 3000 2000 380 1230 1620 2200
    2AG-1230 3000 2000 380 1230 1620 2350
    3AG-1230 3000 2000 380 1230 1620 2600
    AG-1236 3600 2350 380 1230 1620 2350
    2AG-1236 3600 2350 380 1230 1620 2500
    AG-1530 3000 2000 450 1530 1930 2200
    2AG-1530 3000 2000 450 1530 1930 2350
    3AG-1530 3000 2000 450 1530 1930 2600
    AG-1536 3600 2350 450 1530 1930 2350
    2AG-1536 3600 2350 450 1530 1930 2600
    AG-1836 3600 2350 500 1830 2300 2400
    2AG-1836 3600 2350 500 1830 2300 2550
    3AG-1836 3600 2350 500 1830 2300 2810
    AG-1842 4200 2800 500 1830 2300 2560
    2AG-1842 4200 2800 500 1830 2300 2720



    Main Technical Parameters of Rectangular Vibrating Probability Screen Machine:

    Model Layer

    Screen Area

    (m2)

    Screen Aperture

    (mm)

    Feed Size (mm)

    Capacity

    (t/h)

    Double Amplitude (mm)

    Shake Frequency

    (r/min)

    Power (KW) Max. Vibration Force (KN)
    AG-0818 1 1.44 0.25-6 ≤40 1.5-20 6-8 980 0.75×2 10×2
    2AG-0818 2 1.44 0.25-12 ≤40 2-40 6-8 980 0.75×2 10×2
    AG-1020 1 2 0.25-6 ≤50 2-30 6-8 980 1.1×2 16×2
    2AG-1020 2 2 0.25-12 ≤50 2.5-60 6-8 980 1.1×2 16×2
    AG-1024 1 2.4 0.25-6 ≤50 2.5-45 6-8 980 1.1×2 16×2
    2AG-1024 2 2.4 0.25-12 ≤50 3-80 6-8 980 1.5×2 20×2
    3AG-1024 3 2.4 0.25-12 ≤50 4-100 6-8 980 1.5×2 20×2
    AG-1030 1 3 0.25-6 ≤50 3-60 6-8 980 1.5×2 20×2
    2AG-1030 2 3 0.25-12 ≤50 4-100 6-8 980 1.5×2 20×2
    AG-1224 1 2.88 0.25-6 ≤80 3-60 6-8 980 1.5×2 20×2
    2AG-1224 2 2.88 0.25-12 ≤80 4-100 6-8 980 2.2×2 30×2
    3AG-1224 3 2.88 0.25-12 ≤80 5-120 6-8 980 2.2×2 30×2
    AG-1236 1 4.32 0.35-6 ≤80 6-100 6-8 980 2.2×2 30×2
    2AG-1224 2 4.32 0.35-12 ≤80 8-150 6-8 980 2.2×2 30×2
    AG-1230 1 3.6 0.25-6 ≤80 4-80 6-8 980 1.5×2 20×2
    2AG-1230 2 3.6 0.25-12 ≤80 5-120 6-8 980 2.2×2 30×2
    3AG-1230 3 3.6 0.25-12 ≤80 6-150 6-8 980 2.2×2 30×2
    AG-1530 1 4.5 0.35-6 ≤100 6-100 6-8 980 2.2×2 30×2
    2AG-1530 2 4.5 0.35-12 ≤100 8-150 6-8 980 3.0×2 40×2
    3AG-1530 3 4.5 0.35-12 ≤100 10-180 6-8 980 3.0×2 40×2
    AG-1536 1 5.4 0.35-6 ≤100 8-120 6-8 980 3.0×2 40×2
    2AG-1536 2 5.4 0.35-12 ≤100 10-200 6-8 980 3.0×2 40×2
    AG-1836 1 6.48 0.35-6 ≤120 12-150 6-8 980 3.7×2 50×2
    2AG-1836 2 6.48 0.35-12 ≤120 16-250 6-8 980 3.7×2 50×2
    3AG-1836 3 6.48 0.35-12 ≤120 20-300 6-8 980 3.7×2 50×2
    AG-1842 1 7.56 0.35-6 ≤120 15-200 6-8 980 3.7×2 50×2
    2AG-1842 2 7.56 0.35-12 ≤120 20-300 6-8 980 3.7×2

    50×2

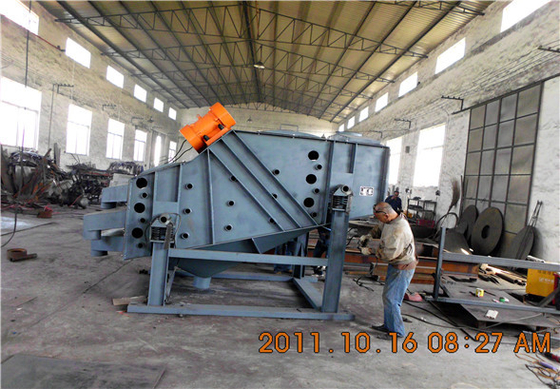

    Working Spot Photos of Rectangular Vibrating Probability Screen Machine:

    Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve 1

    Dolomite Rectangular Vibrating Screen Probability Screen Machine Mogensen Sieve 2
