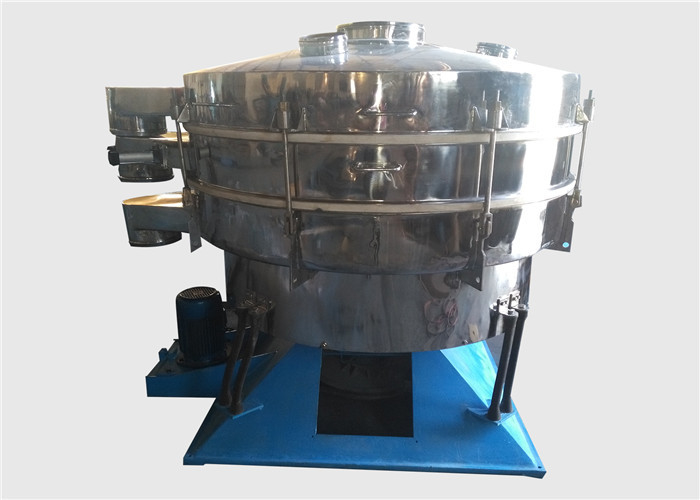

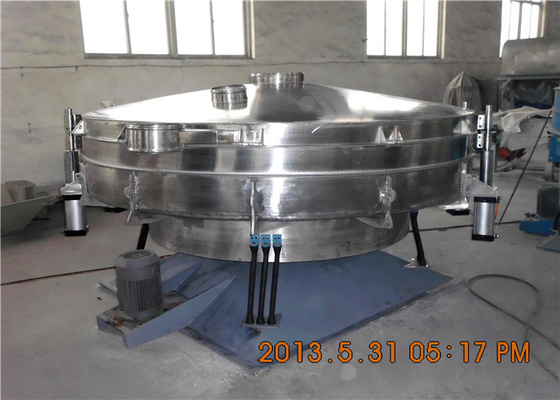

High Efficiency Tumbler Screening Machine Multilayer For Plastic Powder

Multilayer High Screening Accuracy Tumbler Screener for Plastic Powder is a separation method that uses three-dimensional elliptical movement to separate very fine particles from larger ones. It is an important technique applied in many fields dealing with raw materials and building materials for process and reuse. This technique can achieve 99% high efficiency with its circular movement. Machines with tumbler screening techniques are commonly used because of its unique rush design, high life time utility, and the flexible angular velocity the machines can achieve. However, this type of machine requires low feed flow rate and the particles size for separation have to be controlled within a specific range.

Technical Parameters of Multilayer High Screening Accuracy Tumbler Screener for Plastic Powder​​​​​:

Working Principle of Multilayer High Screening Accuracy Tumbler Screener for Plastic Powder:

  Basic rotary motion is similar to manual screening. Eccentricity adjustable from 25 to 40mm, low-speed V-belt drive adjustable from 120 to 360rpm. The residence time of each product can be adjusted in the direction of the drive axis by the radial and cut angles of the oscillating screen. Therefore establish level and throw 3D tumbling motion. The material is evenly dispersed across the entire screen surface from the center to the outer edge, so that it propagates axially in a spiral motion. Fine particles thus complete the entire screening process. The horizontal and vertical accelerations increase with the movement of the particles, and the particles close to the mesh size are successfully separated; the larger particles are transported to the exit, and the flow is controlled by an adjustable guide at the exit. The guide is controlled. Another factor of material residence time. This process is repeated between each sieve layer.

Important Information About Multilayer High Screening Accuracy Tumbler Screener for Plastic Powder:
