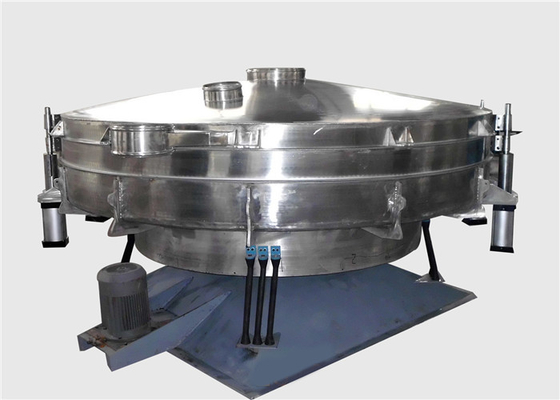

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device

  • Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device
  • Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device
Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Features: Soft Rock Screening Does Not Destroy The Particles Original Structure Of The Material And Not Easy To Produce Static Electricity Movement: Simulate Manual Screening Action
Screening Accuracy: Up To 90 ~ 99.9% Screen Structure: Whole Adhesive Screen, Or Splicing Segmented Screen Etc.
Diameter: 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm Mesh Cleaning Method: Balls, Ultrasonic System, Rolling Brush, Air Brush Etc.
Optional: Quick Clamps, Pneumatic Lifting Devices Etc. Application: Used For Material That Is Flammable, Explosive And Easy To Generate Static
High Light:

Pneumatic Sieve Separator Machine

,

Multilayer Sieve Separator Machine

,

Pneumatic vibrating sieve separator

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device



Overview of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

What is the tumbler screening machine? The round multilayer tumbler screening machine with pneumatic lifting device is also called tumbler screen, tumbler screener, tumbler screening machine, tumbler sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc. The simplest sieving is using your hands with the staring of your eyes. Tumbler screening machine is the mechanical simulation for this.

   The tumbler screening machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes.

   Swinging sieve is the most effective screening machine that simulates the principle of artificial screening. The screening accuracy, efficiency and screen service life are 5~10 times of regular round vibrating sieve machine. It conforms to all fine and ultra-fine powder and granular materials, especially suitable for materials which are difficult to classify.

   Multi-deck tumbler screening machine is often used to screen xylitol, food additives, citric acid, EPS, PAA, PVC, glass beads etc.



Motion  involute spiral motion
Screening Accuracy  upto 90%~99.9%
Mesh Cleaning Method  bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air   cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure  whole adhesive screen, or splicing segmented screen etc.
Layers of Screen  1~5 layers of screen
Diameter  600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm,   2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages  soft rock screening will not destroy the particles original structure of the   material and not easy to produce static electricity
Optional  quick clamps, pneumatic lifting devices etc.
Application  can be used for material that is flammable, explosive and easy to   generate static



Features of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

1. High capacity: the unit area capacity is five times bigger than other screen machine.
2. High screening accuracy: it can imitate the screening action and process of manual operation effectively. Make the material walk a long distance on the screen surface, improve the screening accuracy.
3. Ingenuity: circular building block assembly structure, small volume, light weight. Easy to install and disassemble.
4. Long service life: low frequency, small load, so low load to the screen, can be used for long time.
5. No environment pollution: fully closed structure,almost no Let out of material dust.
6. It can add many kinds of the self-cleaning device to the screen surface which can avoid blocking the screen. There are five kinds of self-cleaning device for you to choose: bouncing ball,Rolls brushes,jet type,elastic scraper,ultrasonic.
7. Low noise: noise < 75db
8. Adopt brand motor as power source, with longer service life.



Working Principle of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 0



   The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.

   While the tumbler screening machine is running, its radial inclination ensures that the material being screened moves from the center of the screen outwards, while its tangential inclination makes the material move in circular fashion on the screen. The interaction between the two resulting forces makes the particles being screened move in a spiral pattern on the screen fabric, ensuring that the particles stay a long time on the screen. This, in turn, enables the machine to achieve an optimum level of grading accuracy with respect to the particle size ranges while simultaneously minimizing oversize and fines contamination.

   According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 1

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 2Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 3



Screen Parameter Control Diagram of Multi-deck Tumbler Screening Machine:

Only recording the best running setup parameters, you can reproduce the best operation at any time to ensure the quality of your products.

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 4

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 5



Date:                                   Material: PVC Powder

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 6



Min-1                                   220

Radial Direction     R     8

Tangent Direction  T     2

Eccentricity            E    35



Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 7

                                                BALANCE IS IMPORTANT !!



Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 8

                                                        Pneumatic Lifting Device



Application of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

  The tumbler screening machine can be widely used in chemical, food and spices, plastics and synthetic resin, mining, medicine, wood and plywood, metallurgy, feed, rubber, fodder, fertilizer, sugar, salt, renewable industry and so on.



1. Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power.
2. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
3. Metal, metallurgy mining industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyse copper powder, lithium battery materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.



Mesh Cleaning Method of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

1. Bounce Ball + PU Ring Cleaning

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 9



2. Brush Cleaning Device

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 10Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 11



3. Compressed Air Cleaning Device (Jet Airflow Cleaning)

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 12



4. Jet Airflow + Brush Cleaning

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 13Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 14



5. Elastic Scraper Cleaning

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 15



6. Ultrasonic Technology Cleaning

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 16Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 17



Technical Parameters of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device 18



Model 600 950 1200 1400 1600 1700 2000 2100 2300 2600 2900
Screen Area Per Layer 0.28m2 0.72m2 1.10m2 1.50m2 1.80m2 2.30m2 2.60m2 3.40m2 3.90m2 5.30m2 6.40m2
Net Site Area 0.36m2 1.20m2 1.57m2 2.20m2 2.50m2 3.20m2 3.54m2 4.60m2 5.30m2 6.76m2 8.60m2
Layers 1, 2, 3, 4, 5 1, 2, 3, 4
Cleaning System Options: rubber ball, brush, compressed air, brush and compressed air, ultrasonic, scraper
Motor Drive Power 0.25KW 1.5KW 1.5KW 2.2KW 2.2KW 4.0KW 4.0KW 4.0KW 4.0KW 5.5KW 5.5KW
Height/Weight (mm/kg)
Single Layer

758/

132

987/

350

1223/

420

1359/

810

1484/

820

1371/

900

1534/

920

1441/

1450

1450/

1490

1774/

1525

1488/

1675

2 Layers

837/

142

1106/

400

1381/

480

1498/

880

1642/

890

1510/

980

1692/

990

1580/

1530

1589/

1575

1967/

1660

1627/

1790

3 Layers

916/

152

1225/

450

1539/

520

1637/

950

1800/

960

1649/

1070

1850/

1080

1719/

1650

1728/

1700

2160/

1810

1766/

1940

4 Layers

995/

162

1344/

510

1697/

590

1776/

1030

1958/

1040

1788/

1140

2008/

1150

1858/

1760

1867/

1825

2353/

1960

1905/

2090

5 Layers

1074/

172

1463/

580

1855/

660

1915/

1110

2116/

1120

1927/

1220

2166/

1230

1997/

1890

2006/

1975

2546/

2130

--
