Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly

Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly

    • Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly
    • Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly
  • Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly

    Product Details:

    Place of Origin: China
    Brand Name: AAREAL
    Certification: ISO9001:2015
    Model Number: AM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Fumigation-free plywood wooden case for export
    Delivery Time: 20~35 work days after order confirmed
    Payment Terms: T/T, L/C
    Supply Ability: 5 sets per month
    Contact Now
    Detailed Product Description
    Screening Accuracy: High Upto 90%~99.9% Model: AY-600, 800, 1000, 1200, 1500, 1800, 2000, 2300 Etc.
    Layers Of Screen: 1~5 Layers Of Mesh Screens Mesh Size: Below 400 Mesh
    Mesh De-blinding: Ultrasonic De-blinding System, Bouncing Balls, Rolling Brush, Air Brush Etc. Characteristics: High Accuracy, Large Capacity, Dust-proof, Longer Screen Service Time Etc.
    Motor Brand: Siemens, ABB Etc. Spare Parts: Rubber Balls, Silicone Balls, Rubber Spring, Screen, Sealing Rubber Strip Etc.
    High Light:

    Fly Ash Tumbler Screening Machines

    ,

    Fly Ash tumbler screener

    ,

    800mm Tumbler Screening Machines

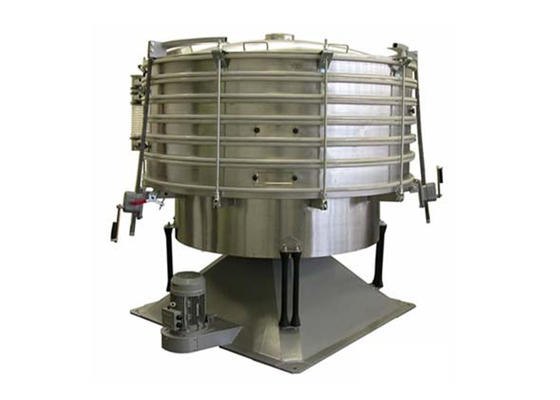

    Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly



    Introduction of Environmentally Friendly Large Capacity Tumbler Screening Machines for Fly Ash:

    Environmentally Friendly Large Capacity Tumbler Screening Machines for Fly Ash are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 7 particle sizes.



    Advantages of Environmentally Friendly Large Capacity Tumbler Screening Machines for Fly Ash:

    1. High Output and Accuracy: The sieve radius of 600mm~2600mm and rotating speed of 120~360RPM
    2. Artificial Oscillation: Using artificial sieving motion
    3. Motors Protection: Motors pefectly wrapped in copper wire
    4. Unique body structure: Unique design based on engineering science
    5. Top 304 Stainless Plate: Machine parts made by top 304 stainless panel
    6. Low working sound: Only 70~75 decibel of working sound



    Technical Parameters of Environmentally Friendly Large Capacity Tumbler Screening Machines for Fly Ash:

    Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly 0

    Model Screen Area (m²) Layers of Screen Motor Power (KW)
    AM-600 0.28 1~5 0.25
    AM-1000 0.72 1~5 1.5
    AM-1200 1.10 1~5 1.5
    AM-1500 1.80 1~5 2.2
    AM-1800 2.30 1~5 4.0
    AM-2000 2.60 1~5 4.0
    AM-2300 3.90 1~5 4.0
    AM-2600 5.30 1~5 5.5
    AM-2900 6.40 1~5 5.5



    Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly 1Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly 2

                   BALANCE IS IMPORTANT !!                              Pneumatic Lifting Device



    Important Information About Environmentally Friendly Large Capacity Tumbler Screening Machines for Fly Ash:

    Motion involute spiral motion
    Screening Accuracy upto 90%~99.9%
    Diameter 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2300mm, 2600mm etc.
    Mesh Cleaning Method bouncing ball cleaning, ultrasonic de-blinding system, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
    Screen Structure whole adhesive screen, or splicing segmented screen etc.
    Layers of Screen 1~5 layers of screen
    Diameter 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
    Advantages soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
    Optional quick clamps, pneumatic lifting devices etc.
    Application can be used for material that is flammable, explosive and easy to generate static
    Motor Brand Siemens, ABB, BEGEMA etc.
    Surface Treatment polishing, sandblast, paint spraying etc.



    Working Principle of Environmentally Friendly Large Capacity Tumbler Screening Machines for Fly Ash:

      The tumbler screen sifting machine is a mechanical with simulation of that. The tumbler screen machine successfully simulates the effective principle of manual screening movement (screening accuracy, efficiency and screen’s work life is 5-10 times than the conventional round screen), and it also conforms to all fine and ultra-fine range of powder and particulate materials, especially for difficult to handle materials.



    Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly 3Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly 4



    Application of Environmentally Friendly Large Capacity Tumbler Screening Machines for Fly Ash:

    1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine power, industrial medicine.
    2. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
    3. Metal, metallurgy mining industry: copper powder, ore alloy powder, welding rod powder, aluminum powder, ceruse, dioxide manganese, electrolyse copper powder, lithium battery materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.



    Fly Ash Tumbler Screening Machines Dust Proof Environmentally Friendly 5
