| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Moving Track: | Three-dimensional Movement | Surface Treatment: | Sandblast, Paint, Mirror Finish, Etc. |
|---|---|---|---|
| Diameter: | 400mm~2000mm | Mesh De-blinding: | Bounce Balls, Ultrasonic, Rotary Brush System Etc. |
| Screen Material: | Stainless Steel, Nylon, Polyurethane, Plastic Etc. | Screen Type: | Perforated Plate, Woven Wire Mesh, Grizzly Bar Etc. |
| Application: | Magnetic Pigment, Spray Paint, Polyester Powder Coating Etc. | Vibrating Motor: | Verticle Arrangement, Explosion-proof Motor Optional |
| High Light: | air classifier machine,rotary sifter machine |
||

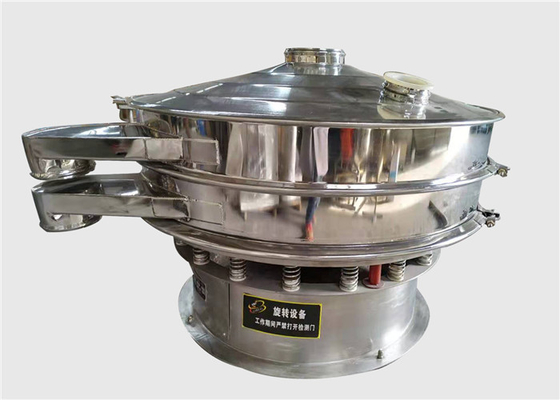

Magnetic Pigment Vibro Sieve Machine Round Vibrating Screen Energy Saving
Introduction of High Output Circular Vibrating Separator Machine for Magnetic Pigment:
High Output Circular Vibrating Separator Machine for Magnetic Pigment is an ideal screening machine for various applications like Sieving, Grading and Sizing of dry Pharmaceutical-Chemical-Food-Dye-Cosmetic Plastic Powder Granules and Particles. It is also known as the round separator, circular vibrating screen, circular vibrating sieve, vibro sifter, vibro shifer, vibro screen, gyro screen, rotary vibrating screen, rotary vibrating sieve, etc.
Advantages and Features of High Output Circular Vibrating Separator Machine for Magnetic Pigment:
1. Quick Screen Replacement-Quick release device is provided to replace the screen with 5 minutes.
2. Automatic screen cleaning-bouncing balls keep screen openings clean and maintain a good efficiency.
3. Customized order- Rotary vibrating screen can be customized according to customer’s demand.
4. Various material separation range- power or particle,wet or dry, heavy or light,coarse or fine, hot or cold.
5. Various size range-available diameter from 400mm to 2000mm,mesh size can reach 500 mesh ( 0.028 mm).
6. Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
7. Unique design-Mature technology,compact and simple structure,convenient installation and maintenance.
8. Wide application-Rotary vibrating screen is applicable to any powder, granule, particle and mucus.
Structure of High Output Circular Vibrating Separator Machine for Magnetic Pigment:
The circular rotary vibrating sieve is made up of dust proof cover, screen frame, vibrating body, inlet and outlet ports, spring buffer, base, vibrating motor, upper and lower heavy hammer, clamp ring,and other parts. The exciting force will generate by the rotation of vibrating motor.
Some Information You May Care About High Output Circular Vibrating Separator Machine for Magnetic Pigment:
| Model | AY |
| Machine Shape | round shape |
| Screen Decks | 1~5 layers of screen with 2~6 discharge ports (outlets) |
| Mesh Size | above 325 mesh (according to the materials) |
| Screen Frame/Holder | adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc. |
| Mesh De-blinding System | bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc. |
| Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm |
| Material | stainless steel 304, 316L, carbon steel, plastic materials etc. |
| Surface Treatment | Paint, sandblast and mirror polish etc. |
| Function | solid-separation, grading, remove the impurity etc. |
| Moving Trajectory | three dimensional vibration motion |
| Damping Spring | carbon steel spring, stainless steel spring, air spring, rubber spring etc. |
| Motor | one set of vibrating motor, verticle arrangement (sufficient power), explosion proof motor optional |
| Motor Brand | AAREAL Made, OLI-WOLONG, Italvibras etc. |
| APO Safety System | Automatic Power Off Safety System is integrated in the motor |
| Quick-wear Parts |
stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc. |
| Optional Design | collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port, etc. |
| Work Level | general grade, food grade, pharmaceutical grade etc. |
Purpose of High Output Circular Vibrating Separator Machine for Magnetic Pigment:
Grading Solid-liquid Separation Impurity Removal
1. Filtration: Remove granules foreign matter in the liquid
2. Classification: Granules/powder accurate classification
3. Removal impurity: Remove the foreign matter or agglomerate
Working Principle of High Output Circular Vibrating Separator Machine for Magnetic Pigment:
The gyratory vibrating sieve machines have vertical type motor as excitation source, and the motor has eccentric block at the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into screen mesh and make the material diffuse outward gradually. Because of that, we call it round vibrating screen machine. The circular vibrating screener has the advantage of long running track and high-usage screen. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.
Technical Parameters of High Output Circular Vibrating Separator Machine for Magnetic Pigment:
| Model | Power | Screen Surface Diameter | Effective Screen Area (sqm) | Decks |
| AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
| AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
| AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
| AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
| AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
| AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
| AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
| AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Note: our company reserve the right to modify the above data.
Overall Dimensions of High Output Circular Vibrating Separator Machine for Magnetic Pigment:
| Model | A | B | C | D | E | F | G | I |
Single Layer Height |
Double Layer Height |
Three Layer Height |
| AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
| AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
| AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
| AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
| AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
| AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
| AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Application of High Output Circular Vibrating Separator Machine for Magnetic Pigment:
1. Ceramic and abrasive: Alumina, quartz sand, mud etc.
2. Chemical industry: PVC powder, resin, pigment, rubber, industrial medicine, cosmetic, coatings, etc.
3. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
4. Food industry: Sugar powder, salt, rice noodles, milk powder, soybean milk, starch, egg powder, sauce, syrup, etc.
5. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, welding rod powder, electrolysis copper powder, electromagnetism materials, ore alloy powder, manganese dioxide, grinding powder, fire-resistant material, lime, heavy calcium carbonate, alumina, etc.
6. Paper making: Paper pulp, paint, wasted water recycling.
7. Pharmacy profession: western medicine powder, liquid, Chinese herbal medicine, particle, etc.
