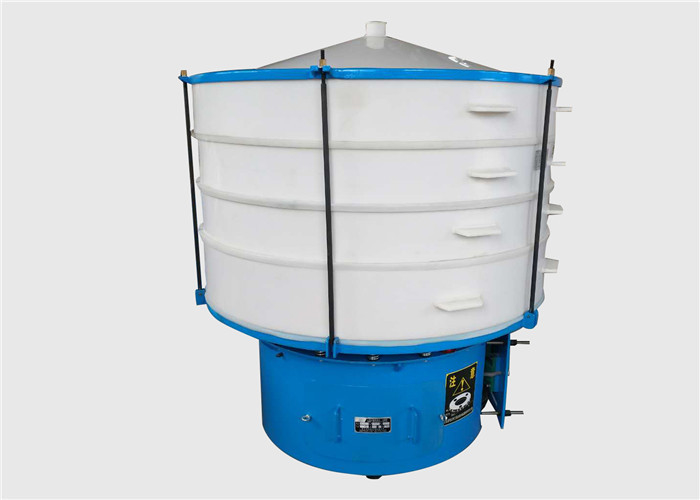

PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator

PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator

  • PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator
  • PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator
PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Material: Contact Parts Are Made Of Polypropylene Or PP Plastic Material Function: Anti-corrosion
Purpose: Grading, Solid-liquid Separation, Remove The Impurity, De-water Etc. Layers Of Screen: 1~5 Layers (suggest 1~3 Layers)
Diameter: 400mm~2000mm (special Size Can Be Customized According To The Situation) Mesh Cleaning Method: Bouncing Balls, Ultrasonic Deblinding Device, Rotary Brush System Etc.
Attention: People Must Remove The Red Transportation Support Before Operation Application: Diamond, Glaze, Clay, Quartz Sand, Glass Beads Etc.
High Light:

vibro sieve machine

,

round separator



PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator



Overview of PP Plastic Material Anti-corrosion Rotary Vibration Sieve Machine​:

The PP plastic material anti-corrosion rotary vibration sieve machine is made by PP or polypropylene or other kinds of plastic materials for the contact parts. It is mainly used for screening corrosive materials.

  The industrial rotary vibrating sieve is also known as the round separator, vibro screen, rotary vibrating screen, rotary vibrating sieve, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator 0

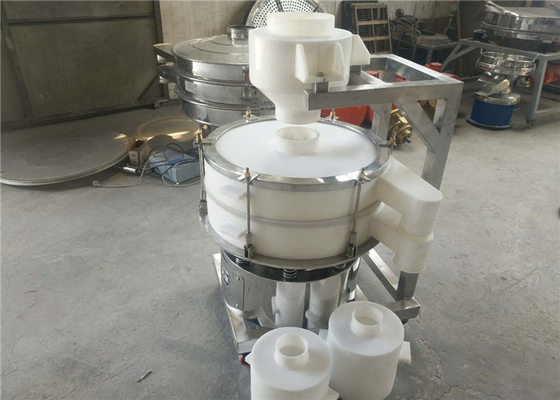

Some Details Of PP Plastic Material Anti-corrosion Rotary Vibration Sieve Machine​​​:

PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator 1PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator 2PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator 3



Working Principle of PP Plastic Material Anti-corrosion Rotary Vibration Sieve Machine:

   The industrial rotary vibration screen machine is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3~5 minutes to quickly change the screen. The rotary screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase angle of upper and lower ends, the movement track of materials on the screen surface can be changed. Materials can be fine screening, probability screening etc.

PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator 4

Important Information About PP Plastic Material Anti-corrosion Rotary Vibration Sieve Machine​​​ You May Concern:

Model AY
Shape round
Layers of Screen 1~5 screen decks with 2~6 outlets
Mesh Size above 325 mesh
Screen Frame flange type, L type (bolt insert type), adhesive glue type etc.
Mesh Cleaning Method bouncing balls, ultrasonic deblinding system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.
Material carbon steel, contact parts stainless steel 304/316L, full stainless steel, contact parts polypropylene or PP plastic material
Function grading, solid-separation, remove the impurity, de-water etc.
Movement three dimensional vibration motion
Damping Spring steel spring etc.
Motor verticle vibrating motor, one unit
Motor Brand China Made, OLI-WOLONG etc.
Optional quick release clamp, magnetic guard, discharge gate, glass viewing port etc.
Attention people must remove the red transportation support before operation



Technical Parameters of PP Plastic Material Anti-corrosion Rotary Vibration Sieve Machine:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Features and Advantages of PP Plastic Material Anti-corrosion Rotary Vibration Sieve Machine​​​:

1. High efficiency, compact design and durability, any powder and mucilage are suitable.
2. Change sieve and clean easy, operate simply.
3. The mesh is not blocked and the powder is not flying, be screened to 500 mesh or 0.028mm.
4. Impurities coarse material discharged automatically and can continuous operation.
5. The unique grid design, sieve for a long time, changing sieve fast just need 3~5 minutes.
6. Small, space-saving, easy to move.
7. The screening machine can achieve the maximum five, we recommended to use three.



Application of PP Plastic Material Anti-corrosion Rotary Vibration Sieve Machine:

1. Chemical industry: resin, coating, industrial drug, cosmetics, paint, and so on.
2. Metal metallurgy mining: aluminium powder, lead powder, copper powder, ore, alloyed powder, kaolin, lime, quartz sand and so on.
3. Food industry: sugar powder, starch, salt, rice flour, milk powder, soya-bean milk, egg powder, soy souce, fruit juice.
4. Pollution treatment: waste oil, wasre water, dyeing waste water, auxilliaries, activaated carbon and so on.



PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator 5



Some Common Used Spare Parts for the Rotary Vibration Sieve Machine:

PP Plastic Material Ultrasonic Sieving Machine Anti Corrosion Round Separator 6
