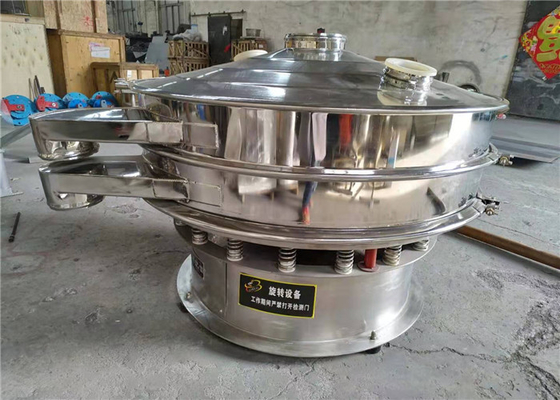

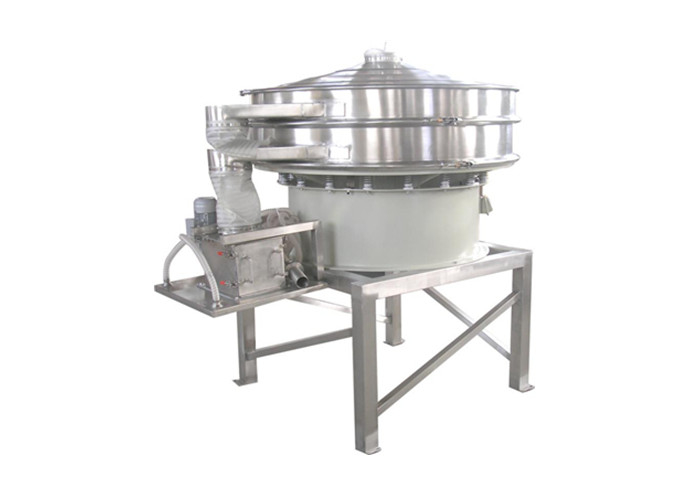

Introduction of Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder is a kind of high precision sieving machine, with low noise, high efficiency, only need 3-5 minutes to replace the screen rapidly, fully closed structure. It can apply to granule, powder and liquid screening, filtering and dewatering.

Some Information About Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

Application of Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

1. Food Industry: sugar, amylum, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.

2. Chemical Industry: colophony, dope, industry leechdom, cosmetic, paint
3. Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.

4. Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese,electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.

5. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.

Features​ of Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

1. Simple and functional design – This makes it run with sustained efficiency. It is also easier to use and has a higher capacity. Further, it is designed so that it can run with minimal supervision. It has a low-maintenance structure. Moreover, it creates lower noise and covers a minimal floor space. Also, it is lightweight and can easily be transferred using a pallet jack or forklift.

2. Consumes lower energy compared to conventional equipment – It does not sacrifice output quality. It not only generates premium outputs but also contributes to minimizing environmental damage.

3. It can work on its own for long hours – It does not entail much manual attention. In other words, its high durability makes it run with minimal supervision.

4. It has superb anti-binding properties – It helps to prevent screen clog neatly. Unlike other equipment, it does not create dust clouds as it operates. Like a robot, it has an automatic capacity to discharge separated materials.

5. It contains up to 5 screens per unit – This makes it capable of conducting multiple operations with just a single unit; This is another feature which makes it cost effective. Moreover, its screen can easily be adjusted or changed in five minutes. Now, that’s quick enough.

6. The rotary vibrating sieve is made up of stainless steel, including all its contact parts – Even better, it can be fully or partially upgraded to SS316. This is to meet arising needs/demands. Likewise, it has various sizes and available modification schemes to suit all types of materials. Among these are different forms of powder and liquids.

Basic Function of Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.

2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.

3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.

Technical Parameters of Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

Working Principle of Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

  By means of the upper and lower hammer mounted on the vibration motor, the sifter can turn the rotary motion force of the motor into three-dimensional motion (horizontal, vertical, inclined). Then this motion will be delivered to the screen surface. Thus, the sifter realizes the purpose of sieving.

  The general characteristics of the vibrator adjustment are described below:

Structure Diagram of Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

Overall Dimensions of Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

Optional Designs for Three-dimensional Rotary Vibro Sifter Machine for Electrolytic Copper Powder:

1. Spring Dust Cover: it is used to provide additional protection against dust and other particles by the strength of the springs, which is determined by the rollers which are also spring-loaded.

2. The APO Safety System (Automatic Power Off Safety System) is integrated in the motor. In case of short circuit, phase loss, electric leakage and unstable voltage, the motor can cut off the power automatically to safeguard the machine and your staff.

3. Quick Release Clamp: it is used for releasing camps rings without the need to use tools. While the other side of the clamp is used for tightening. It is mostly used for cleaning and dissembling purposes.

4. Magnetic Guard: it is used for preventing any contamination and also to ensure that manufacturing is done safely and free from any irregularities. It captures particles with the use of high magnetic strength. The collected contaminants are then unleashed into the discharge chutes.

5. Discharge Gate: it is used to control production flow and speed. This enables a better flow and provides consistent discharge characteristics from even surfaces. However, the discharge rate might differ from the ratio and diameter of the discharge pipe.

6. Customised Dust Cover: it is used to reduce any leaks from the machine. It also helps reduce airborne dust from flowing on the steam or conveyer belt. This device is made custom to fit your production line.
