Name: 600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand
Brand: Xinxiang AAREAL Machine Co.,Ltd
SKU: AM
Price: 50,000,043.00 USD
Availability: InStock

Home Products Tumbler Screening Machine

600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand

Product Details:

Place of Origin:	China
Brand Name:	AAREAL
Certification:	ISO9001:2015
Model Number:	AM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Fumigation-free plywood wooden case for export
Delivery Time:	20~35 work days after order confirmed
Payment Terms:	T/T, L/C
Supply Ability:	5 sets per month

Contact Now

Detailed Product Description

Screening Effect:	Large Screening Capacity And High Accuracy Up To 90%~99.9%	Movement:	Involute Spiral Motion
Optional Device:	Pneumatic Lifting Devices, Quick Clamps Etc.	Mesh Cleaning Device:	Ultrasonic System, Rolling Brush, Self-cleaning Ball System, Air Brush Etc.
Layers Of Screen:	1~5 Layers Of Screen Decks	Dia.:	600mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm Etc.
Applications:	Bakery Yeast, Mineral Powders, Plastic Powders, Plastic Powder, Glass Beads, Xylitol, Citric Acid, Spherical Mineral Granules, Calcium Carbonate, Nickel Ore, Food Additives, Food Flour, Micronised Materials Etc.	Other Names:	Tumbler Screening Machine, Tumbler Screen, Tumbler Screener, Tumbling Screen
Highlight:	glass sand tumbler screen , tumbler screen for glass sand , glass sand screening machine

600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand

Overview of 600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand:

High Efficiency 2000mm Multi-deck Tumbler Screening Machine for Screening Calcium Carbonate is a low-frequency vibrating screen that imitates artificial vibration. The principle is that the instantaneous motion is the synthesis of the circular motion along the radial displacement and the displacement as the axis. Can regulate the vibrator eccentricity produce nonlinear three-dimensional movement, material also can produce the same approximation manual operation movement, so as to achieve the aim of screening, coupled with sieving attachment can get more ideal screening effect.

The tumbler vibrating screen Industrial circular vibrating screen filter sieve is a new and high-efficient sieving machine machine which is designed to meet the requirements of large output and high-density sieving. It make use of artificial sieving movement successfully (its sieving precision,sieve efficiency and sieve life is 5~10 times of common sieve machine), and suitable for all the fine, ultra-fine powder and special materials, particularly suitablefor materials which are difficult to deal with.

Our tumbler screen sieve sifter is widely used in many industries including chemical, food, spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, fodder, fertilizer, sugar, salt, renewable industries etc.

This large capacity tumbler screen uses a operating principle of slow acceleration and a longer residence time on the mesh surface area, the action is extremely gentle on the product being processed and is more suited to handle fragile material.

Application of 600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand:

Tumbler Sievie shaker is used at powder lines, mill discharge or storage tank discharge for separation, purification, grading, refining, dedusting, filtration.

1. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder etc.
2. Medicinal industry: all kinds of medicine.

3. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon etc.

4. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce etc.
5. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder etc.

Important Information About 600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand:

Motion	involute spiral motion
Screening Accuracy	upto 90%~99.9%
Mesh Cleaning Method	bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure	whole adhesive screen, or splicing segmented screen etc.
Layers of Screen	1~5 layers of screen
Dia.	600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm etc.
Advantages	soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
Optional	quick clamps, pneumatic lifting devices etc.
Motor	ABB, Siemens etc.
Application	can be used for materials that is flammable, explosive and easy to generate static

Working Principle of 600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand:

The tumbler screen machine is an artificial imitation of shaking low frequency vibration sieve, working principle is synthesis of transient motion displacement and this displacement in the radial direction of the axis of circular motion (helical motion), can adjust the eccentricity nonlinear three-dimensional motion of the exciter, the material also produces same motion approximation manual jobs, so as to achieve the purpose of screening, combined with sieving attachment can get more ideal screening effect. Suitable for circular, cylindrical, sheet, and even regular shapes easy to block network and require sophisticated screening materials.

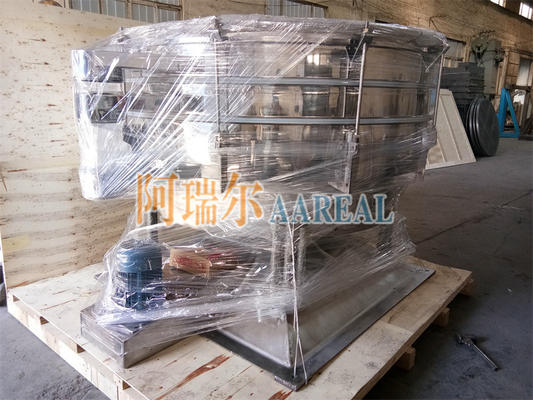

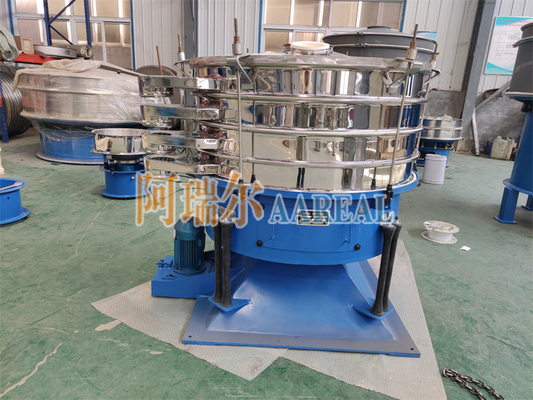

600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand 1

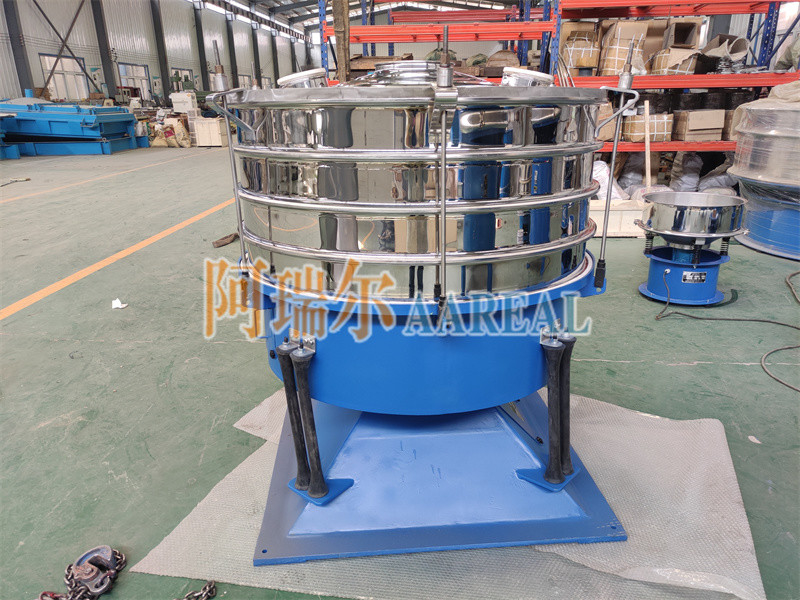

600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand 2

Technical Parameters of 600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand:

Model	AM600	AM1000	AM1200	AM1500	AM1800	AM2000	AM2300	AM2600	AM2900
Area of Screen(㎡)	0.28	0.72	1.10	1.80	2.30	2.60	3.90	5.30	6.40
Number of Screen Deck	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5
Power(kW)	0.25	1.5	1.5	2.2	4.0	4.0	4.0	5.5	5.5
Cleaning System	Options: Rubber Balls, Rotating Brush, Compress Air, Ultrasonic and Scrapper

Features of 600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand:

1. Many options for cleaning system: Rubber Balls, Rotating Brush, Compress Air, Ultrasonic and Scrapper, can effectively maintain sieving.
2. The rubber spring is swinging with soft and noiseless motion.

3. Statics avoided, suitable for screening flammable, combustible and easily to generate static electricity materials.

4. Can maximum loaded to 7 screen layers and produce 8 particle size.
5. As high as five times the unit area output, accurate to level 6 separation, screening efficiency of 95%.
6. Using the silicon rubber ball, ultrasonic, rotary brush and other efficient cleaning system, the screen will not be blocked.

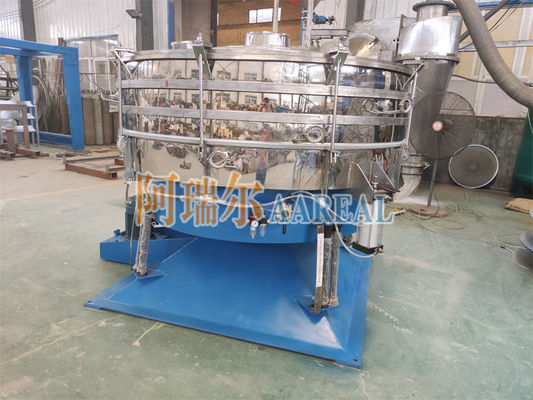

600~2300mm High Efficiency Multi-layer Tumbler Screening Machine for Glass Sand 5

Pneumatic Lifting Device BALANCE IS IMPORTANT !!
