Large Feeding Capacity, Good Heat Insulation Effect, Low Power Consumption, Simple Structure, Easy Debugging, Easy Installation
Application:
Used In Food, Chemical, Building Materials, Metallurgy, Coal And Other Industries
Applicable Material:
Suitable For Feeding All Kinds Of Powder, Granular, Lump And Mixtures With Temperature Below 300℃
Material:
Stainless Steel 304, 316L, Carbon Steel Etc.
Highlight:
High Efficiency vibratory feeder
,
tubular vibratory feeder
,
vibratory feeder for particles

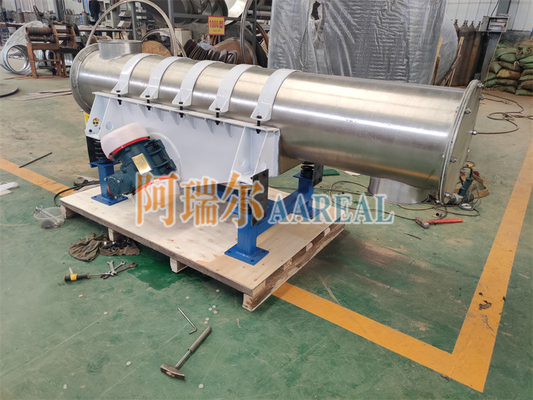

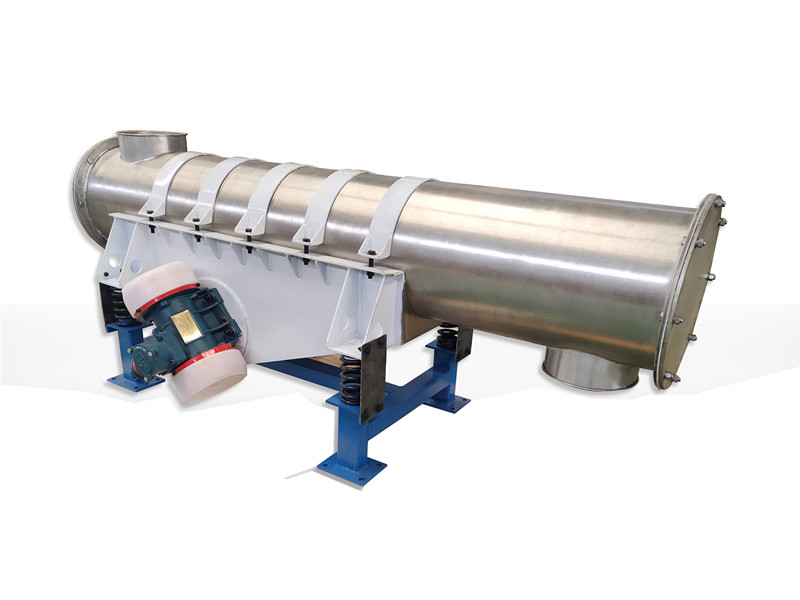

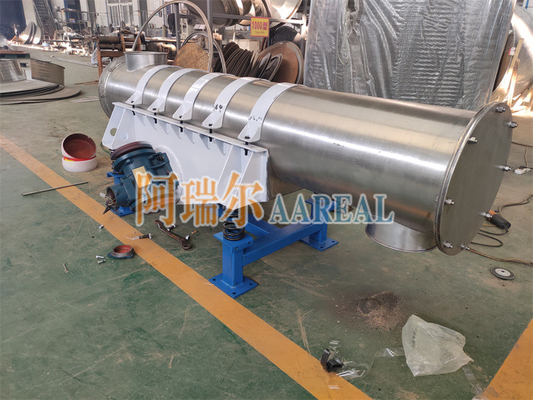

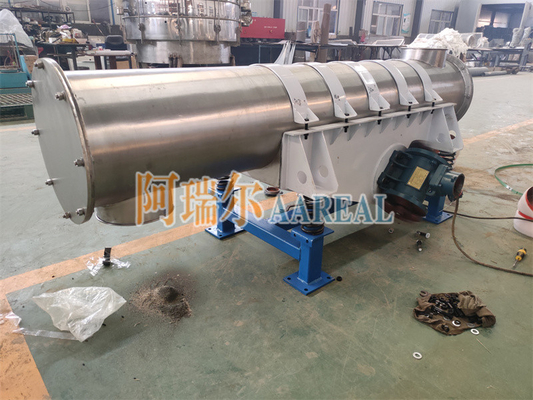

High Efficiency Small Size 400mm Diameter Tubular Vibratory Feeder For Chemical Particles Seat Installation
Overview:
The vibratory feeder is suitable for feeding various powdery, granular, lump and mixtures with a temperature below 300℃. Widely used in building materials, metallurgy, chemical, coal and other industries. For example, transportation of raw materials, intermediate semi-finished products and finished products in the cement industry; transportation of ore, concentrates and tailings in the mining industry. It is a kind of high temperature material vibration conveying equipment with strong universality and advanced structure.
Vibrating feeder is a new type of material conveying equipment. Its maximum conveying distance is about 9 meters. The structure can be made into open, closed, up-vibration, down-vibration and seat-type installation or short-distance hanging installation. It can be made into one-point feed and multi-point discharge, or multi-feed and one-point discharge.
According to the conveying trough, the motor vibrating conveyor can be divided into two types: U-type trough and tubular trough.
The bottom of the trough can be changed to inclined type, and the trough can be covered. Discharge port can be straight, side-tilted or down-bend. A gate can be set at the discharge port. This conveyor can be made into a multi-layer conveyor or add a layer of screen. With frequency converter, it can realize speed regulation during operation.
This kind of vibratory feeder has the advantages of simple structure, convenient installation and maintenance, low energy consumption, no dust spillage, small abrasion of the tank, low noise, etc.
Features:
1. Large feeding capacity, good heat insulation effect, no cooling device required, low power consumption.
2. Start and stop quickly and run smoothly.
3. Simple structure, easy debugging, few types of wearing parts, convenient maintenance; good vibration isolation performance and low noise.
4. Easy installation, no need of special foundation and anchor bolts, easy to move position.
5. It can be loaded and unloaded at multiple points, which is suitable for conveying cement clinker and slag bottom and top.
6. It can be completely closed to eliminate dust pollution or open to transport.
7. The conveying distance of a single machine can reach 20 meters, and the soft connection of multiple machines can be extended as needed.
Main Technical Parameters Trough Vibratory Feeder & Conveyor:
Model
Capacity (t/h)
Conveying Distance (mm)
Power (kw)
Weight (kg)
AS30-250
30
2500
2*0.4
410
AS30-300
25
3000
2*0.4
490
AS50-350
50
3500
2*0.75
650
AS50-400
40
4000
2*0.75
740
AS50-450
30
4500
2*0.75
840
AS50-500
80
5000
2*1.5
1050
AS50-550
70
5500
2*1.5
1150
AS50-600
60
6000
2*1.5
1250
AS50-650
50
6500
2*1.5
1350
AS50-700
40
7000
2*1.5
1450
AS50-750
30
7500
2*1.5
1550
AS70-800
145
8000
2*2.2
2400
AS70-850
135
8500
2*2.2
2550
AS70-900
125
9000
2*2.2
2700
AS70-900
110
9500
2*2.2
2850
AS70-1000
100
10000
2*2.2
3000
For tubular type vibratory feeder, we can desgin the diameter and length according to the client's specific requirement.
Application Range:
The vibrating feeder can be widely used in powder and granular materials transportation in metallurgy, coal, building materials, chemical, glass, electric power, machinery, food and other industries. The delivery volume and structure can also be designed according to user requirements.
