Only The Mesh Vibrates, The Screen Box Does Not Vibrate
Vibration Frequency:
Upto 3000 Times/min, 3600 Times/min Etc.
Control Box:
Included
Vibration Intensity:
8~10g
Inclincation Angle:
20°~45°, And The Angle Is Adjustable
Screen Vibration Amplitude:
1~3mm
Characteristics:
Minimal Dynamic Load, Small Footprint, Safe To Use, Easy To Maintain Etc.
Application:
Sugar, Salt, Frac Sand, Fertilizer Etc.
Screen Width:
1~2m
Screen Length:
1.5~6 M
Mesh Size:
0.07~10mm
Layers Of Screen:
1~4 Layers
Power Source:
Electromagnetic Vibrators Or Unbalanced Motors Etc.
Highlight:
3 Deck high frequency screen
,
Motors Driven high frequency vibrating screen
,
calcium carbonate high frequency screen

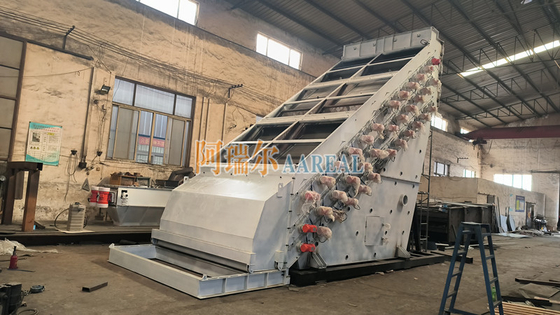

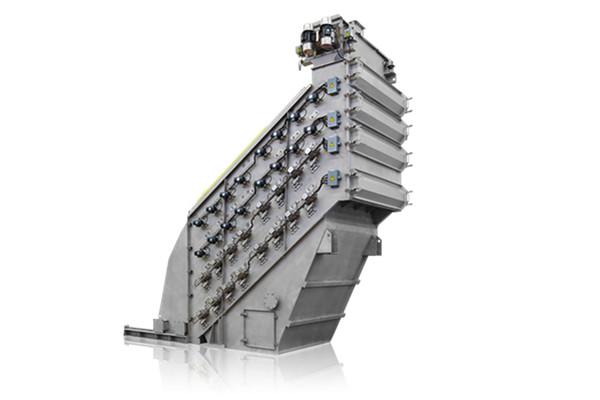

2400*6000mm 3-Deck High Frequency Screen Vibratory Sieve for Marble Calcium Carbonate Particles Precise Separation Driven By Unbalanced Motors
Introduction of 2400*6000mm 3-Deck High Frequency Screen Vibratory Sieve for Marble Calcium Carbonate Particles Precise Separation Driven By Unbalanced Motors:
For high frequency fine screen, the screen surface vibrates, and screen box does not move. It is used for dry and wet screening and dehydration operations of 0.07~10 mm particles.
Features:
1. No clogged screen meshes due to to automatic cleaning;
2. Vibration amplitudes are freely adjustable;
3. No dynamic loads due to static housing;
4. Continued production even if one drive (unbalance motor or electromagnetic vibrator) breaks down;
5. Use end-tension screen structure, quick screen replacement without entering the machine;
6. Motor inspection possible during operation;
7. Optimal separation of aggregates with narrow particle size distribution;
8. Highly efficient energy transmission and therefore low energy consumption.
Working Principle of 2400*6000mm 3-Deck High Frequency Screen Vibratory Sieve for Marble Calcium Carbonate Particles Precise Separation Driven By Unbalanced Motors:
AAREAL high frequency screen uses electromagnetic vibrators or unbalanced motors as the power source, the high frequency vibration directly excites the screen, making the screen work in a near resonance state. The screen surface amplitude is 1~3mm, and the vibration strength is 2~4 times that of the general vibrating screen. Under the action of high-frequency vibration, the screen surface keeps the screen clean. Even difficult-to-screen materials can be screened with high efficiency and accuracy.
The installation angle can be easily adjusted at any time to adapt to different material properties and different screening operations.
Technical Parameters:
Power source: electromagnetic vibrators or unbalanced motors
Fed by a vibrating distributor, the feeding is uniform
Up to 4 layers of screens can complete the production of 2~5 products
Screen Width: 1~2 m
Screen Length: 1.5~6 m
Screen Angle: 20°~45°, and the angle is adjustable
Mesh Size: 0.07~10mm
Models:
WA(WAU WAF)-1015 1025 1035 1040
1220 1230 1240 1250
1530 1540 1550 1560
1840 1850 1860
2045 2060 2560 3060
WAW- 1230 1245 1260 1645 1660
WA model, use electromagnetic vibrators as the power source
WAU model, use unbalanced motors as the power source
WAF (WAUF) model, in addition to the unbalanced motors (or electromagnetic vibrators) as the power source, it is driven by two vibration motors, which can effectively reduce the height of the screening machine
WAD (WAUD) model, it can realize the simultaneous operation of two screening machines
WAW model, use vibrating motors as the power source
Application:

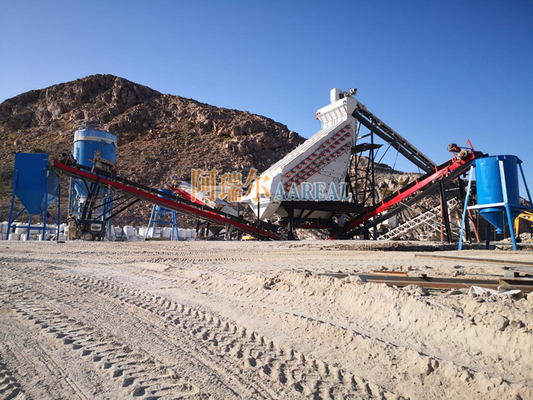

The high frequency screen is suitable for dry and wet screening, classification, dehydration and coarse separation of fine particle materials. It is widely used in the fertilizer and compound fertilizer industry, ore dressing (iron ore, quartz sand, kaolin etc.), dewatering (coal slime dewatering, dry tailings dehydration, gold ore powder carbon recovery dehydration etc.), screening of dry material etc.
