Small Size, Large Capacity, High Screening Accuracy, Low Failure Rate And Convenient Maintenance.
Type:
High-performance Blow-through Type Air Classifier Screening Machine
Layers Of Screen:
Single Layer Of Screen
Optional Device:
Ultrasonic System, Dust Collector Etc.
Advantage:
Can Sift Particles That The Ultrasonic Separator And Common Air Classifier Can Not Manage
Application:
Spherical Graphite, Talcum Powder Etc.
Highlight:
patented turbo screen air classifier
,
stainless steel turbo screen air classifier
,
vortex turbo screen air classifier

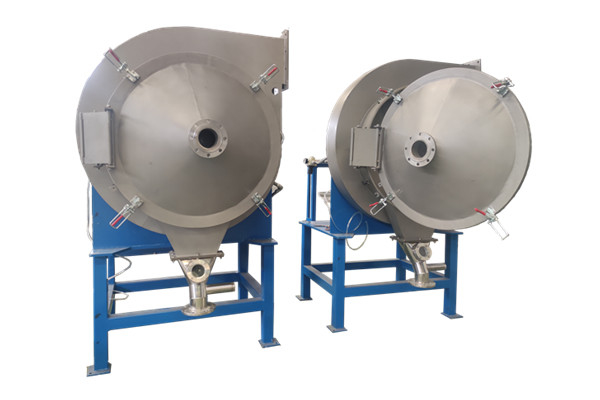

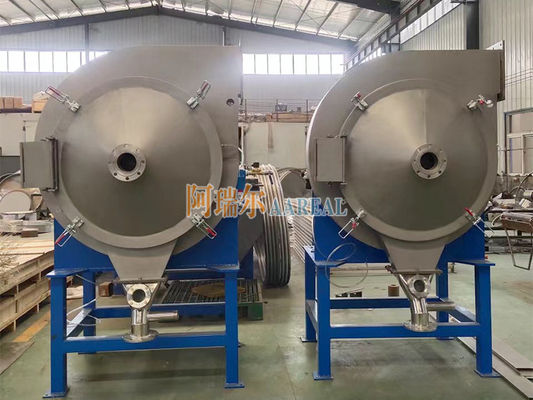

Patented Stainless Steel Vortex Turbo Screen Air Classifier for 500 Mesh Super Fine Lithium Battery Materials
When sieving lithium battery positive and negative materials, people often use ultrasonic vibrating screen for the following reasons:
1. The material is very light;
2. The material is very fine;
3. The material is easy to generate static electricity and easy to agglomerate.
However, if the material is too fine, such as 325 mesh, 400 mesh, 500 mesh etc., the screening efficiency of ultrasonic separator will be very low, the production capacity is small, and the accuracy is not high, which will affect the quality & capacity of the finished products. So, for very fine lithium battery materials, such as graphite, NCM ternary cathode material (lithium nickel cobalt manganese oxide), lithium iron phosphate etc., how to effectively sieve it?
AAREAL vortex turbo screen air classifier can solve this problem very well !!
Overview:

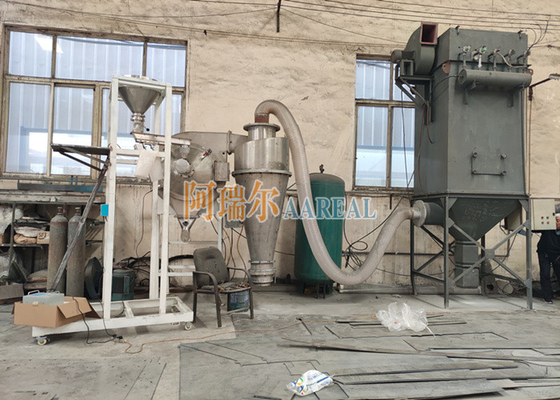

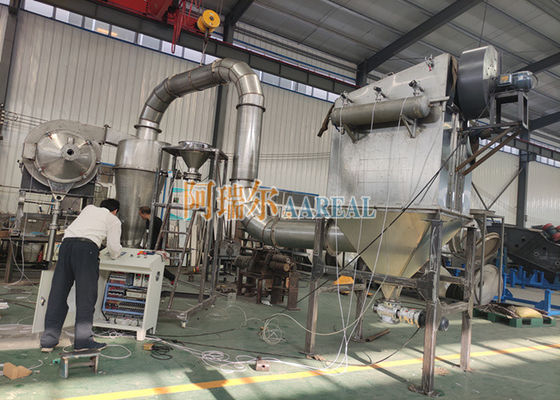

Turbo Screen Air Classifier is also called turbo screen, blow-through type high-performance sieving machine etc. It provides continuous dry material screening, achieving the high efficiency micron-sized accurate separation of 25µm~850µm particles. It is suitable for materials that are difficult to screen with traditional equipments such as vibrating screen, ultrasonic screening machine, tumbler screen etc.. For example, particles with static electricity, materials easy to agglomerate and with light specific gravity, viscous materials containing water or oil and so on. Or it can be used behind the airflow classifier to ensure that the ultra-fine powder is without large particles after the classifier. The turbo screen air classifier can be used in food, powder metal, chemical, plastic, cosmetics, pigments, tobacco, pharmaceuticals, minerals, electronics, ceramics and other industries.
The vortex turbo screen air classifier provides continuous dry material screening, achieving a high efficiency micron-sized accurate separation of 25µm~850µm particles. It is suitable for materials which are difficult to screen with traditional equipments such as vibrating screen, ultrasonic vibrating sieve, tumbler screen etc.. For example, particles with static electricity, materials easy to agglomerate and with light specific gravity, viscous materials containing water or oil and so on. It can be used in food, powder metal, chemical, plastic, cosmetics, pigments, tobacco, pharmaceuticals, minerals, electronics, ceramics and other industries.
Features:
1. There is no blockage because of the air brush. Thus the turbo screen air classifier can sieve smoothly from the granular to the micro powder, and finally to several microns of ultrafine particles.
2. With unique working principle and excellent screen anti-blocking performance, it is almost allowed to screen any type of powders regardless of the specific gravity size, and no matter whether it has the powder properties such as adhesiveness, cohesion, coagulation, fluidity, hygroscopicity and so on, more suitable for screening lightweight and electrostatic materials. It can easily complete the spherical particle sieving that the ultrasonic screening machine can not manage.
3. Fully automatic continuous operation. It can be easily added into the grinding and pneumatic conveying production line.
4. It takes just a few minutes to realize quick screen replacement.
5. High screening accuracy, low failure rate and convenient maintenance.
6. Cover a small area. The processing capacity per unit area of screen is super strong.
7. Slight vibration, low noise, full closed structure, no dust, no pollution.
Working Principle:
The turbo screen air classifier controls the particle size precisely through the screen mesh.
The powder is dispersed in the airflow and through the static screen, so it can accurately screen micron-sized powder, which can not be realized by vibration type sieving machine or air classifier.
The turbo screen air classifier has a great contribution to the diversification, high added value and high quality of all kinds of powder raw materials and products. Furthermore, for the powder with humidity, oil content and electric charge that is difficult to screen and yield can not be guaranteed, it is a professional screening machine.
Technical Parameters:
Model
Screen Diameter (mm)
Power (Kw)
Weight (Kg)
APQ-18
458
4
230
APQ-30
762
5.5
560
APQ-38
965
7.5
650
APQ-45
1145
11
820
Application:
Turbo screen air classifier can be used in food, powder metal, chemical, plastic, cosmetics, pigments, tobacco, pharmaceuticals, minerals, electronics, ceramics and other industries.
Examples for Various Powders Processing:
Material
Soldering Tin
Talcum Powder
Powder Coating
Toner
Carbon Powder
Wood Flour
Capacity
APQ-18
30
100
50
70
50
70
APQ-30
120
420
200
420
200
300
Mesh Size (µm)
25
75
75
45
75
150
AAREAL company mainly produce Fine Screening Machines, such as vortex turbo screen air classifier, gyratory screen, tumbler screen, centrifugal sifter, ultrasonic vibrating screen, high-frequency screen, mogensen probability screen, low-profile flow-thru separator etc. Welcome to send us RFQs if you have any.
