| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | WAF |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | Only The Mesh Vibrates, The Screen Box Does Not Vibrate | Function: | Grading, Screening, Dewatering And Desilting Of Fine Materials |
|---|---|---|---|
| Control Box: | Included | Vibration Intensity: | 8~10g |
| Dip Angle: | 20°~45°, And The Angle Is Adjustable | Screen Vibration Amplitude: | 1~3mm |
| Characteristics: | Minimal Dynamic Load, Small Footprint, Safe To Use, Easy To Maintain Etc. | Application: | Sugar, Salt, Frac Sand, Fertilizer Etc. |
| Screen Width: | 1~2m | Screen Length: | 1.5~6 M |
| Mesh Size: | 0.07~10mm | Layers Of Screen: | 1~4 Layers |
| Power Source: | Electromagnetic Vibrators Or Unbalanced Motors Etc. |

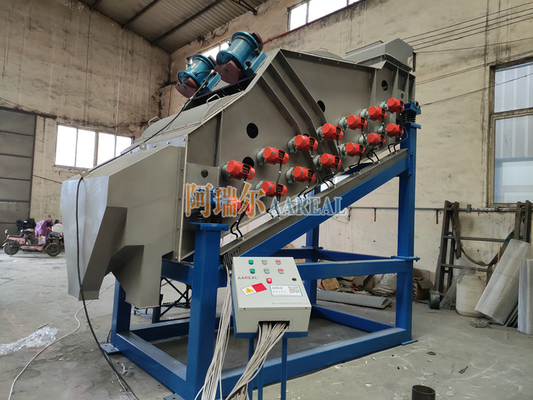

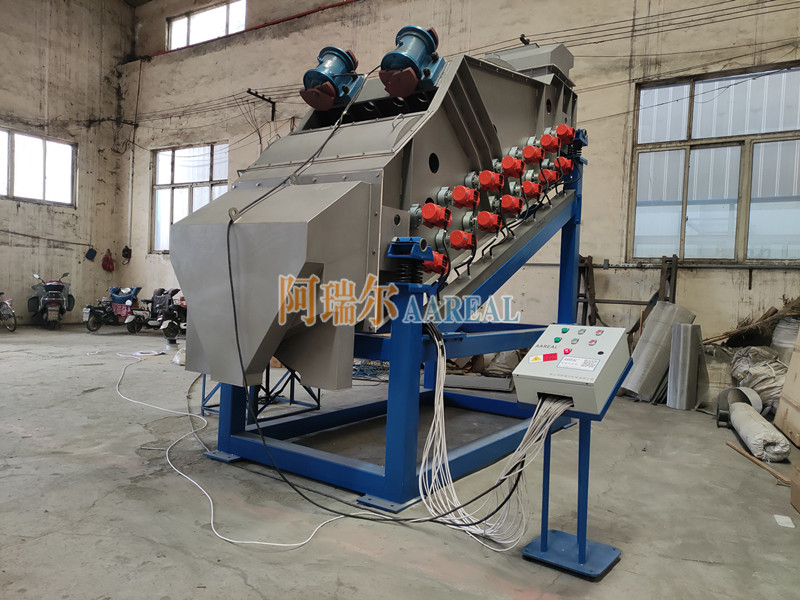

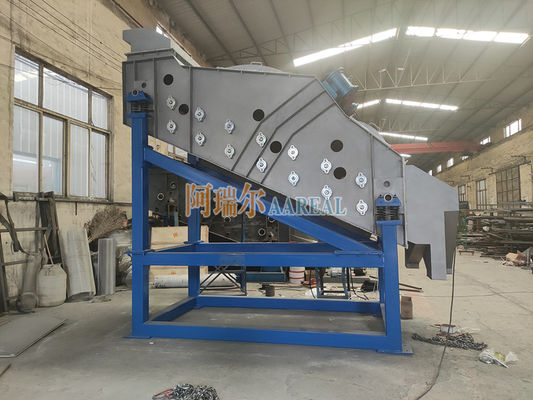

1~4 Decks Stainless Steel High Frequency Screen for Sugar Sieving
AAREAL can make high frequency screen for sugar sieving, such as refined sugar (crystal sugar), glucose/ dextrose, maltose, fructose, lactose, sweeteners, saccharin, sucralose, stevia as well as sugar substitutes/ sugar alcohols (alditols) like sorbitol, glucitol, hexanhexol, mannitol, xylitol, maltitol, lactitol or erythritol etc.
Why choose high frequency screen in sugar processing?
In the screening of sugar, people often use a Rotex type gyratory screen. Our 2000*5000mm stainless steel and aluminum alloy material gyratory sifter is often used in sugar refinery for impurity removal and grading. The gyratory screener has many advantages over the vibrating screen: the screen has a long service life and it has little impact on the foundation etc.. But as we know, even at low moisture concentrations, sugar tends to stick together, which makes the screening process much more difficult with gyratory screen. The high frequency screen can solve this problem very well due to the high acceleration directly at the screen mesh.
The screen box of the high frequency screen does not vibrate, and only the screen mesh vibrates. Our direct excitation high frequency screen adopts unbalance motors or electromagnetic vibrators to clean the screen mesh. The stronger unbalance motors are used for coarser separation cuts, the high frequency electromagnets for finer separation cuts. And the advantages of both drive technologies can be combined in one machine.
The high frequency fine screen can achieve an acceleration of the screening material of 15g, even sticky sugar can be screened sharply and clogging of the screen cloth can be avoided. Freely adjustable cleaning intervals with up to 50 g acceleration during the screening process provide automatic cleaning of the screen cloths. The inclination of the mesh allows the sugar to be transported over the screen mesh. External drives enable maintenance even during operation. A further advantage of the direct excitation high frequency screen is the static screen box, which does not transfer the dynamic loads into the surrounding building and minimizes the required energy consumption.
The high frequency screen is a good choice for the screening of fine sugar and sticky sugar, with large capacity and high screening accuracy. If you also have problems in screening sugar, welcome to contact us for a proper solution.
Introduction of 1~4 Decks Stainless Steel High Frequency Screen for Sugar Sieving:
For high frequency fine screen, the screen surface vibrates, and screen box does not move. It is used for dry and wet screening and dehydration operations of 0.07~10 mm particles.
Working Principle of 1~4 Decks Stainless Steel High Frequency Screen for Sugar Sieving:
It uses electromagnetic vibrators or unbalanced motors as the power source, the high frequency vibration directly excites the screen, making the screen work in a near resonance state. The screen surface amplitude is 1~3mm, and the vibration strength is 2~4 times that of the general vibrating screen. Under the action of high-frequency vibration, the screen surface keeps the screen clean. Even difficult-to-screen materials can be screened with high efficiency and accuracy.
The installation angle can be easily adjusted at any time to adapt to different material properties and different screening operations.
Technical Parameters:
Models:
WA(WAU WAF)-1015 1025 1035 1040
1220 1230 1240 1250
1530 1540 1550 1560
1840 1850 1860
2045 2060 2560 3060
WAW- 1230 1245 1260 1645 1660
Features:
1. High screening efficiency and large processing capacity. The capacity can be up to 20 t/h*m2.
2. The screen is free from clogging, and the screening accuracy is up to 85-95%.
3. Only the screen vibrates, and the screen box does not vibrate. The dynamic load is extremely low, and the equipment is easy to install.
4. The replacement of the screen is very simple.
5. Low driving power.
6. Environmental protection: dustproof and low noise.
WA model, use electromagnetic vibrators as the power source
WAU model, use unbalanced motors as the power source
WAF (WAUF) model, in addition to the unbalanced motors (or electromagnetic vibrators) as the power source, it is driven by two vibration motors, which can effectively reduce the height of the screening machine
WAD (WAUD) model, it can realize the simultaneous operation of two screening machines
WAW model, use vibrating motors as the power source
At the work site
