| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | WAF |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | Only The Mesh Vibrates, The Screen Box Does Not Vibrate | Function: | Grading, Screening, Dewatering And Desilting Of Fine Materials |
|---|---|---|---|
| Control Box: | Included | Vibration Intensity: | 8~10g |
| Dip Angle: | 20°~45°, And The Angle Is Adjustable | Screen Vibration Amplitude: | 1~3mm |
| Characteristics: | Minimal Dynamic Load, Small Footprint, Safe To Use, Easy To Maintain Etc. | Application: | Sugar, Salt, Frac Sand, Fertilizer Etc. |
| Screen Width: | 1~2m | Screen Length: | 1.5~6 M |
| Mesh Size: | 0.07~10mm | Layers Of Screen: | 1~4 Layers |
| Power Source: | Electromagnetic Vibrators Or Unbalanced Motors Etc. |

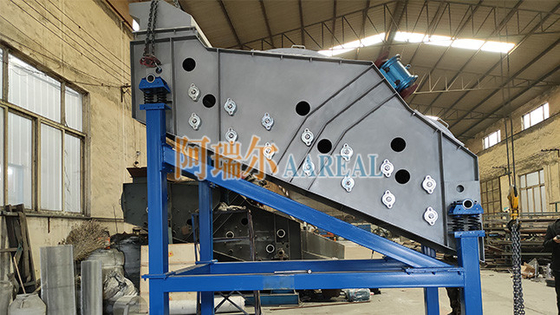

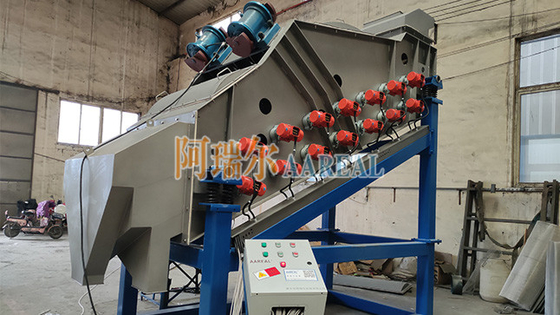

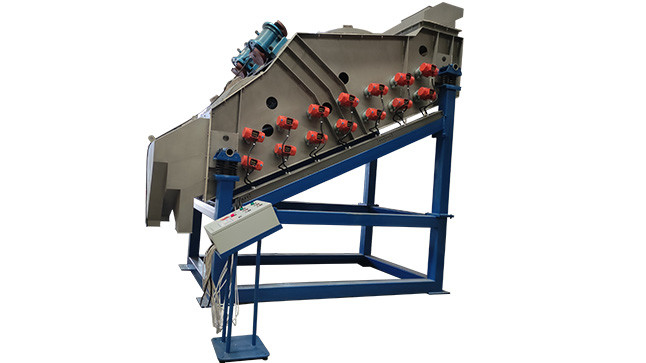

1200*3000mm High Efficiency Energy Saving Food Grade Rectangular High Frequency Screen for Food Additives
Introduction of 1200*3000mm High Efficiency Energy Saving Food Grade Rectangular High Frequency Screen for Food Additives:
For high frequency fine screen, the screen surface vibrates, and screen box does not move. It is used for dry and wet screening and dehydration operations of 0.07~10 mm particles.
Working Principle of 1200*3000mm High Efficiency Energy Saving Food Grade Rectangular High Frequency Screen for Food Additives:
It uses electromagnetic vibrators or unbalanced motors as the power source, the high frequency vibration directly excites the screen, making the screen work in a near resonance state. The screen surface amplitude is 1~3mm, and the vibration strength is 2~4 times that of the general vibrating screen. Under the action of high-frequency vibration, the screen surface keeps the screen clean. Even difficult-to-screen materials can be screened with high efficiency and accuracy.
The installation angle can be easily adjusted at any time to adapt to different material properties and different screening operations.
Technical Parameters:
Models:
WA(WAU WAF)-1015 1025 1035 1040
1220 1230 1240 1250
1530 1540 1550 1560
1840 1850 1860
2045 2060 2560 3060
WAW- 1230 1245 1260 1645 1660
Features:
1. High screening efficiency and large processing capacity. The capacity can be up to 20 t/h*m2.
2. The screen is free from clogging, and the screening accuracy is up to 85-95%.
3. Only the screen vibrates, and the screen box does not vibrate. The dynamic load is extremely low, and the equipment is easy to install.
4. The replacement of the screen is very simple.
5. Low driving power.
6. Environmental protection: dustproof and low noise.
WA model, use electromagnetic vibrators as the power source
WAU model, use unbalanced motors as the power source
WAF (WAUF) model, in addition to the unbalanced motors (or electromagnetic vibrators) as the power source, it is driven by two vibration motors, which can effectively reduce the height of the screening machine
WAD (WAUD) model, it can realize the simultaneous operation of two screening machines
WAW model, use vibrating motors as the power source

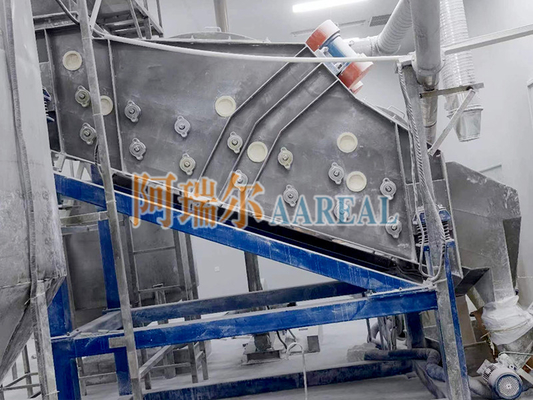

At the work site
