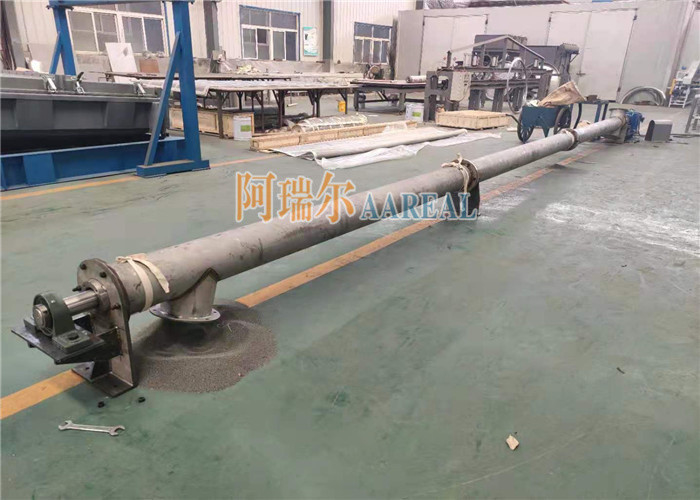

China Manufacturer Industrial Horizontal Tubular Screw Conveyor for Bulk Materials
Overview of China Manufacturer Industrial Horizontal Tubular Screw Conveyor for Bulk Materials:
The screw conveyor is divided into two types in the form of conveying: the shaft screw conveyor and the shaftless screw conveyor., and it is divided into U-shaped screw conveyor and tubular screw conveyor in appearance. The shaft screw conveyor is suitable for non-sticky dry powder materials and small particle materials (such as cement, fly ash, lime, grain etc.), while the shaftless screw conveyor is suitable for conveying sticky and easily entangled materials. (e.g. sludge, biomass, garbage etc.)
Classification of China Manufacturer Industrial Horizontal Tubular Screw Conveyor for Bulk Materials:
| by Conveying Angle |
horizontal screw conveyor, inclined screw conveyor, vertical screw conveyor |
| by Conveying Form |
shaft screw conveyor, shaftless screw conveyor |
| by Shape |
U-shaped trough screw conveyor, tubular screw conveyor |
Working Principle of China Manufacturer Industrial Horizontal Tubular Screw Conveyor for Bulk Materials:
Screw conveyor makes use of rotating screw transfering materials along the fixed casing. The rotating spiral blade moves the material to perform screw conveyance, and the force that makes the material not rotate with the screw blade is the frictional resistance of the material's own weight and the screw conveyor casing to the material. Spiral blades are welded to the rotary shaft of the screw conveyor. The surface shape of the blade has solid surface type, belt surface type, blade surface type and other types according to the different materials being conveyed. The screw shaft of the screw conveyor has a thrust bearing at the end of the material moving direction to give the screw axial reaction force with the material. When the machine length is long, an intermediate hanging bearing should be added.
Application of China Manufacturer Industrial Horizontal Tubular Screw Conveyor for Bulk Materials:
It is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, coal, grain etc. It is suitable for horizontal or inclined conveying powder, granulated and small lump materials, such as coal, ash, slag, cement, grain etc. Material temperature is less than 200℃.
Screw conveyor is not suitable for conveying materials those are perishable, big viscosity and easy to agglomerate.
If conveying angle of inclination is oversize, please choose the GX series screw conveyor.
Main Features of China Manufacturer Industrial Horizontal Tubular Screw Conveyor for Bulk Materials:
1. Large bearing capacity, safe and reliable
2. Strong adaptability, easy installation and maintenance, long service life.
3. The machine is small in size, high rotating speed, ensure rapid uniform transfer
4. Discharge end is equipped with cleaning device, low noise, strong adaptability, inlet and outlet location layout flexibility
5. Good sealing, the shell adopts the seamless steel tube, the end uses the flange connected to each other as a body, good rigidity.
Technical Parameter of LS, GX Screw Conveyor and Feeder:
| LS Type |
100 |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
| GX Type |
|
|
200 |
250 |
300 |
400 |
500 |
|
|
|
|
| Screw Diameter (mm) |
100 |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
| Screw Pitch (mm) |
100 |
160 |
200 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
630 |
| Rotating Speed (r/min) |
140 |
120 |
90 |
90 |
75 |
75 |
60 |
60 |
45 |
35 |
30 |
| Conveying Capacity QΦ=0.33 (m3/h) |
2.2 |
7.6 |
11 |
22 |
36.4 |
66.1 |
93.1 |
160 |
223 |
304 |
458 |
| Power Pd 1=10m (KW) |
1.1 |
1.5 |
2.2 |
2.4 |
3.2 |
5.1 |
4.1 |
8.6 |
12 |
16 |
24.4 |
| Power Pd 1=30m (KW) |
1.6 |
2.8 |
3.2 |
5.3 |
8.4 |
11 |
15.3 |
25.9 |
36 |
48 |
73.3 |
| Rotating Speed (r/min) |
120 |
90 |
75 |
75 |
60 |
60 |
45 |
45 |
35 |
30 |
20 |
| Conveying Capacity QΦ=0.33 (m3/h) |
1.9 |
5.7 |
18 |
18 |
29.1 |
52.9 |
69.8 |
125 |
174 |
261 |
305 |
| Power Pd 1=10m (KW) |
1.0 |
1.3 |
2.1 |
2.1 |
2.9 |
4.1 |
4.7 |
6.8 |
9.4 |
14.1 |
16.5 |
| Power Pd 1=30m (KW) |
1.5 |
2.3 |
4.5 |
4.5 |
7 |
8.9 |
11.6 |
20.4 |
28.3 |
42.2 |
49.5 |
| Rotating Speed (r/min) |
90 |
75 |
60 |
60 |
45 |
45 |
35 |
35 |
30 |
20 |
16 |
| Conveying Capacity QΦ=0.33 (m3/h) |
1.4 |
4.8 |
15 |
15 |
21.8 |
39.6 |
54.3 |
97 |
149 |
174 |
244 |
| Power Pd 1=10m (KW) |
0.9 |
1.2 |
1.9 |
1.9 |
2.5 |
3.4 |
4.3 |
5.4 |
8.1 |
9.5 |
13.3 |
| Power Pd 1=30m (KW) |
1.2 |
2.2 |
3.8 |
3.8 |
5.4 |
6.8 |
9.2 |
16 |
24.4 |
28.6 |
39.9 |
| Rotating Speed (r/min) |
75 |
60 |
45 |
45 |
35 |
35 |
30 |
30 |
20 |
16 |
13 |
| Conveying Capacity QΦ=0.33 (m3/h) |
1.2 |
3.8 |
11 |
11 |
17 |
31.7 |
46.5 |
73.0 |
99.3 |
139 |
199 |
| Power Pd 1=10m (KW) |
0.75 |
1.1 |
1.6 |
1.6 |
2.1 |
3.1 |
3.7 |
4.6 |
5.7 |
7.7 |
11 |
| Power Pd 1=30m (KW) |
1.1 |
1.8 |
3.4 |
3.4 |
4.4 |
5.6 |
8 |
14 |
16.7 |
23.2 |
33 |
Installation Size Table of LS Screw Conveyor and Feeder:
| Model |
W |
A |
B |
C |
D |
N |
Q |
Y |
L |
K |
R |
S |
P |
O |
H |
V |
J |
T |
G |
L |
| LS100 |
2500 |
100 |
180 |
146 |
10 |
4 |
180 |
190 |
90 |
112 |
180 |
112 |
60 |
178 |
120 |
160 |
14 |
163 |
1500
2000
2500 |
3500-40000 |
| LS160 |
2500 |
160 |
240 |
206 |
10 |
4 |
200 |
190 |
112 |
150 |
200 |
150 |
60 |
270 |
120 |
160 |
14 |
190 |
| LS200 |
3000 |
200 |
300 |
256 |
14 |
8 |
225 |
190 |
112 |
180 |
225 |
180 |
60 |
308 |
160 |
200 |
14 |
212 |
| LS250 |
3000 |
250 |
350 |
306 |
14 |
8 |
250 |
190 |
140 |
224 |
250 |
224 |
60 |
336 |
200 |
250 |
18 |
240 |
40000-80000 |
| LS315 |
3000 |
315 |
425 |
370 |
14 |
8 |
330 |
190 |
214 |
280 |
390 |
250 |
60 |
443 |
300 |
350 |
20 |
340 |
| LS400 |
3000 |
400 |
500 |
456 |
14 |
8 |
350 |
190 |
224 |
355 |
390 |
280 |
60 |
533 |
320 |
400 |
24 |
384 |
| LS500 |
3000 |
500 |
600 |
556 |
14 |
8 |
400 |
190 |
280 |
400 |
400 |
340 |
80 |
662 |
400 |
500 |
24 |
440 |
2000
3500
3500 |
5500-80000 |
| LS630 |
3000 |
630 |
730 |
686 |
14 |
8 |
450 |
190 |
355 |
500 |
450 |
420 |
80 |
763 |
500 |
630 |
24 |
555 |
| LS800 |
3000 |
800 |
920 |
868 |
18 |
16 |
550 |
340 |
450 |
630 |
550 |
520 |
80 |
970 |
632 |
800 |
30 |
650 |
| LS1000 |
3000 |
1000 |
1120 |
1068 |
18 |
16 |
650 |
360 |
560 |
710 |
650 |
630 |
80 |
1190 |
710 |
1000 |
30 |
760 |
6000-60000 |
| LS1250 |
3000 |
1250 |
1370 |
1318 |
18 |
16 |
800 |
380 |
710 |
800 |
800 |
760 |
80 |
1440 |
800 |
1250 |
30 |
910 |
Technical Parameters of GX Screw Conveyor and Feeder:
| Specification |
Main Technical Performance |
Driving Device |
Driving Device |
Weight
(kg) |
| Model |
Length
(mm) |
Capacity
(cement)
(t/h) |
Rotating Speed
min-1 |
Reducer |
Motor |
| Model |
Speed Ratio |
Power
(kw) |
| GX200 |
-10 |
9 |
60 |
ZQ250 |
23.34 |
1.1 |
726 |
| GX200 |
-20 |
9 |
60 |
ZQ250 |
23.34 |
1.5 |
1258 |
| GX250 |
-10 |
15.6 |
60 |
ZQ250 |
23.34 |
2.2 |
960 |
| GX250 |
-20 |
15.6 |
60 |
ZQ250 |
23.34 |
3 |
1750 |
| GX300 |
-10 |
21.2 |
60 |
ZQ350 |
23.34 |
3 |
1373 |
| GX300 |
-20 |
21.2 |
60 |
ZQ350 |
23.34 |
4 |
2346 |
| GX400 |
-10 |
51 |
60 |
ZQ400 |
23.34 |
5.5 |
1911 |
| GX400 |
-20 |
51 |
60 |
ZQ500 |
23.34 |
11 |
2049 |
| GX500 |
-10 |
87.5 |
60 |
ZQ400 |
23.34 |
7.5 |
2381 |
| GX500 |
-20 |
87.5 |
60 |
ZQ650 |
23.34 |
18.5 |
5389 |
| GX600 |
-10 |
134.2 |
45 |
ZQ750 |
23.34 |
22 |
3880 |
| GX600 |
-10 |
134.2 |
45 |
ZQ850 |
23.34 |
55 |
7090 |

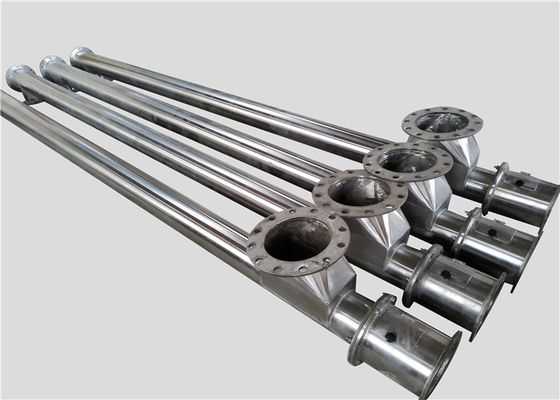

GX Tubular Screw Conveyor LS U-shaped Trough Screw Conveyor (Closed & Open)
Double Helix Screw Conveyor Multiple Discharge Holes Screw Conveyor
Shaftless Screw Conveyor
Inclined Screw Conveyor Vertical Screw Conveyor
