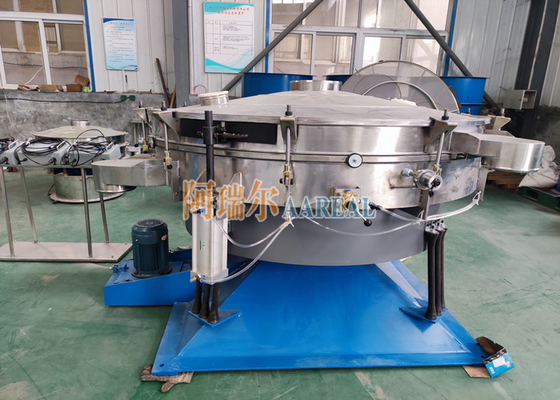

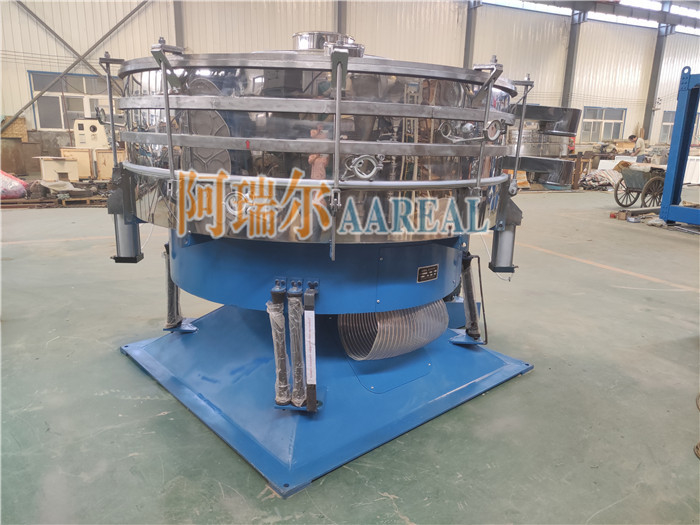

Overview of 2000mm Food Grade Stainless Steel 316L Tumbler Screening Machine for Sea Salt Screening​​:

  AAREAL can make tumbler screen for sea salt screening. Unlike the typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.

  AAREAL tumbler screen machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes. Our AM model tumbler screen machine features a range of customization options designed to meet extremely demanding requirements, as well as a broad variety of additional equipment options. Among these, the number of available screen cleaning systems is particularly worth mentioning, with balls, brushes, ultrasonic system, and various combinations being of these options are available to prevent blinding and maintain efficient screening.

Important Information About 2000mm Food Grade Stainless Steel 316L Tumbler Screening Machine for Sea Salt Screening​​ You Won't Miss:

Characteristics​ of 2000mm Food Grade Stainless Steel 316L Tumbler Screening Machine for Sea Salt Screening​​:

Working Principle of 2000mm Food Grade Stainless Steel 316L Tumbler Screening Machine for Sea Salt Screening​​:

While the tumbler screening machine is running, its radial inclination ensures that the material being screened moves from the center of the screen outwards, while its tangential inclination makes the material move in circular fashion on the screen. The interaction between the two resulting forces makes the particles being screened move in a spiral pattern on the screen fabric, ensuring that the particles stay a long time on the screen. This, in turn, enables the machine to achieve an optimum level of grading accuracy with respect to the particle size ranges while simultaneously minimizing oversize and fines contamination.

The movement of a tumbler screening machine is usually compared with simple hand screening. The product is continuously fed into the center of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer particles fall through the screen near the center and the coarser ones successively towards the periphery. The material is moved in a spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened. All the separated fractions are discharged through the lateral outlets. The screening process is repeated again and again on each deck.

Machine Parts:
1. Feeding Inlet
2. Top Cover
3. Observation Hole
4. Screen Frame
5. Sealing Ring
6. Discharging
7. Wire Frame
8. Beam Ring
9. Bottom Frame
10. Pivot Assembly
11. Adjustment Block
12. Screen
13. Vibration Plate
14. Adjustable Bolt
15. Swing Body
16. Choke Spring
17. Main shaft assembly
18. Pulley
19. Base
20. Inspection Hole
21. Motor

Technical Parameters of 2000mm Food Grade Stainless Steel 316L Tumbler Screening Machine for Sea Salt Screening​​:
