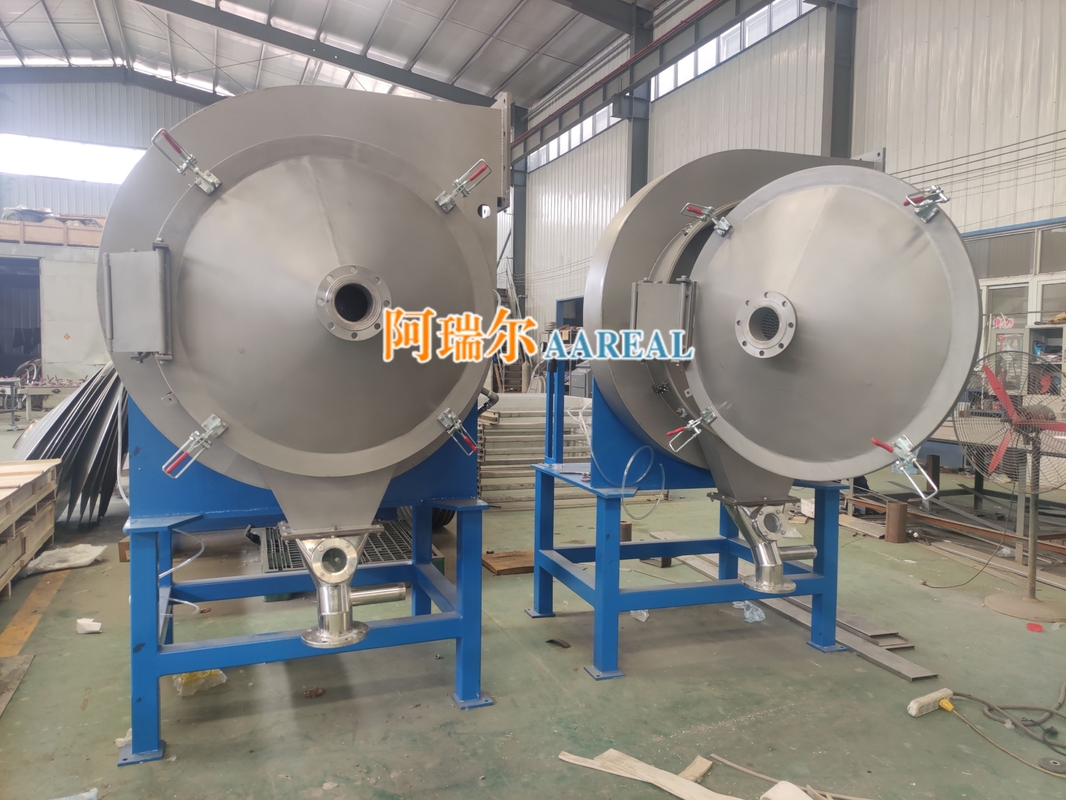

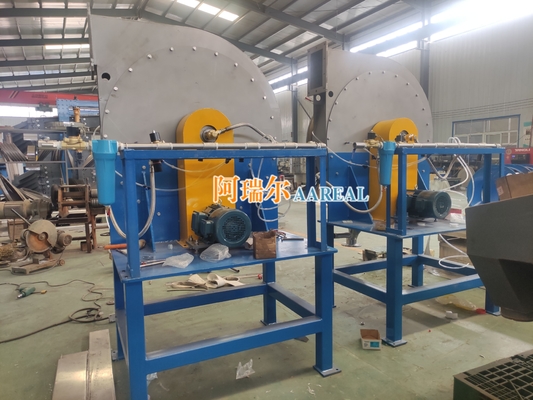

Vortex Turbo Screen Air Classifier for Super Fine Lithium Battery Materials

Vortex Turbo Screen Air Classifier for Super Fine Lithium Battery Materials

  • Vortex Turbo Screen Air Classifier for Super Fine Lithium Battery Materials
  • Vortex Turbo Screen Air Classifier for Super Fine Lithium Battery Materials
Vortex Turbo Screen Air Classifier for Super Fine Lithium Battery Materials
Product Details:
Place of Origin: Xinxiang, China
Brand Name: AAREAL
Certification: ISO9001
Model Number: APQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: E-mail: sale@aarealmachine.com
Packaging Details: https://www.aarealmachine.com
Payment Terms: WhatsApp: 0086-15637361027
Contact Now
Detailed Product Description
Features: Small Size, Large Capacity, High Screening Accuracy, Low Failure Rate And Convenient Maintenance. Type: High-performance Blow-through Type Air Classifier Screening Machine
Layers Of Screen: Single Layer Of Screen Optional Device: Ultrasonic System, Dust Collector Etc.
Advantage: Can Sift Particles That The Ultrasonic Separator And Common Air Classifier Can Not Manage Application: Spherical Graphite, Talcum Powder Etc.

When sieving lithium battery positive and negative materials, people often use ultrasonic vibrating screen for the following reasons:

1. The material is very light;

2. The material is very fine;

3. The material is easy to generate static electricity and easy to agglomerate.



  However, if the material is too fine, such as 325 mesh, 400 mesh, 500 mesh etc., the screening efficiency of ultrasonic separator will be very low, the production capacity is small, and the accuracy is not high, which will affect the quality & capacity of the finished products. So, for very fine lithium battery materials, such as graphite, NCM ternary cathode material (lithium nickel cobalt manganese oxide), lithium iron phosphate etc., how to effectively sieve it?

AAREAL vortex turbo screen air classifier can solve this problem very well !!



  The vortex turbo screen air classifier provides continuous dry material screening, achieving a high efficiency micron-sized accurate separation of 25µm~850µm particles. It is suitable for materials which are difficult to screen with traditional equipments such as vibrating screen, ultrasonic vibrating sieve, tumbler screen etc.. For example, particles with static electricity, materials easy to agglomerate and with light specific gravity, viscous materials containing water or oil and so on. It can be used in food, powder metal, chemical, plastic, cosmetics, pigments, tobacco, pharmaceuticals, minerals, electronics, ceramics and other industries.



Features:

1. Fully automatic continuous operation. It can be easily added into the grinding and pneumatic conveying production line.

2. It only takes just a few minutes to realize quick screen replacement.

3. High screening accuracy.

4. With the excellent screen anti-blocking performance, it is almost allowed to screen any type of powders regardless of the specific gravity size, and no matter whether it has the powder properties such as adhesiveness, cohesion, fluidity, hygroscopicity and so on, more suitable for screening lightweight and electrostatic materials. It can easily complete the spherical particle sieving that the ultrasonic screening machine can not manage.

5. Fully enclosed structure, no dust, slight vibration, low noise, no pollution.



Technical Parameters:

Model Screen Diameter (mm) Power (Kw) Weight (Kg)
APQ-18 458 4 230
APQ-30 762 5.5 560
APQ-38 965 7.5 650
APQ-45 1145 11 820

AAREAL company mainly produce Fine Screening Machines, such as vortex turbo screen air classifier, gyratory screen, tumbler screen, centrifugal sifter, ultrasonic vibrating screen, high-frequency screen, mogensen probability screen, low-profile flow-thru separator etc. Welcome to send us RFQs if you have any.
