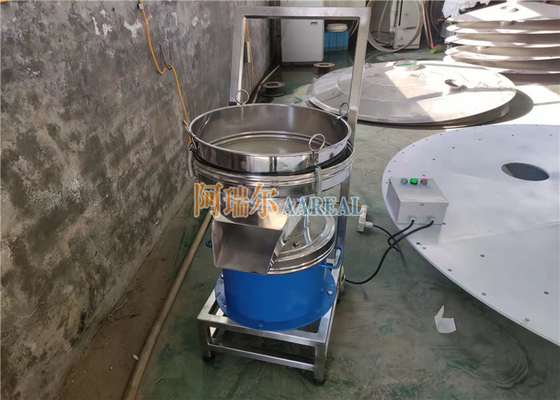

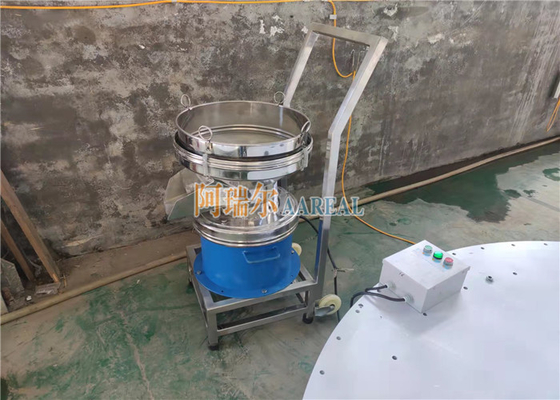

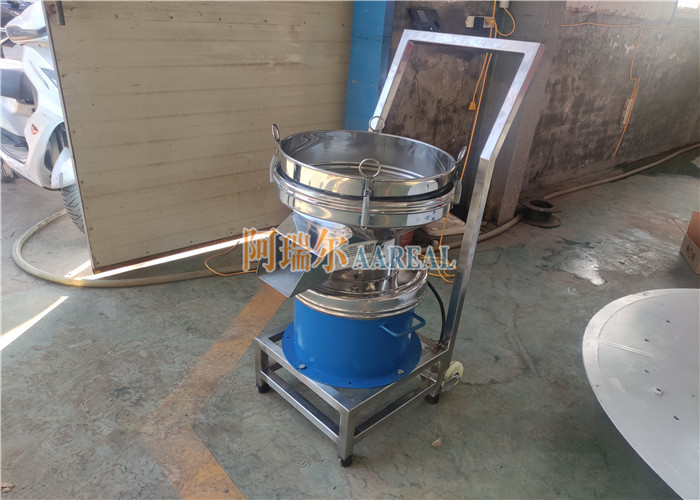

Stainless Steel Noiseless Rotary Vibrating Filter Sieve For Paint Powder Coating

Stainless Steel Noiseless Rotary Vibrating Filter Sieve For Paint Powder Coating

  • Stainless Steel Noiseless Rotary Vibrating Filter Sieve For Paint Powder Coating
  • Stainless Steel Noiseless Rotary Vibrating Filter Sieve For Paint Powder Coating
  • Stainless Steel Noiseless Rotary Vibrating Filter Sieve For Paint Powder Coating
Stainless Steel Noiseless Rotary Vibrating Filter Sieve For Paint Powder Coating
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY-450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: E-mail: sale@aarealmachine.com
Delivery Time: https://www.aarealmachine.com
Supply Ability: WhatsApp: 0086-15637361027
Contact Now
Detailed Product Description
Purpose: Suitable For Powder Screening And Slurry Filtration With Less Impurity Content Type: Seat Type, Portable Type (optional)
Advantage: Small Size, And Easy To Clean The Screen Mesh Movement: Three Dimensional Vibration Motion
Amplitude: 2~5mm Layers Of Screen: Single Layer
Material: Usually Use Stainless Steel For Contact Part Application: Paint Coating, Glaze Powder, Soybean Milk Etc.
High Light:

Noiseless Vibrating Filter Sieve

,

Vibrating Filter Sieve for Paint Powder

,

Paint Powder Rotary Vibrating Sieve

Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating



Product Overview of Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating:
The stainless steel rotary vibrating filter sieve for paint powder coating is also well known as the 450 type filter sieve. It is a kind of small vibrating filter which is easy to move, high efficiency, low noise and small volume. It is especially suitable for powder screening and slurry filtration with less impurity content. The 325 mesh screen filter paint with a specific gravity of 1.1 can reach 1200 liters per hour, and the 30 mesh screen can handle 700 kilograms per hour flour. It has an excellent filtration performance for ceramic uranium material.


Structural Features of
Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating:

1. It is convenient to remove and change the screen by using the internal V-type screen pressing way.
2. The upper screen frame can be easily removed, and it is very convenient to pour off impurities that do not pass through the screen.
3. The material is directly discharged. There is no dead angle in the screen machine, and no secondary pollution is generated.

4. A waterproof cover is added to prevent electricity from water.
5. A nylon brake wheel can be added for easy movement.

Working Principle of
Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating:
  The 450mm filter sieve machine adopts a new type of vertical vibration motor as the vibration source. The upper and lower ends of the vertical vibration motor are equipped with eccentric weights, which can generate horizontal, vertical and inclined three-dimensional motion. The exciting force is transmitted to the screen frame and materials through the receiving pan to achieve an excellent grade. By adjusting the phase angle of the upper and lower eccentric weight hammer, the movement track of the material on the screen surface can be changed to ensure the full grading of the material.


Product Advantages of Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating:

1. Small volume, low noise, easy to move, the discharge port can be arranged along the circumferential direction.
2. High screening accuracy and high efficiency, can be used in any powder, granule or mucus.
3. Fully enclosed structure, the powder is not flying, the mesh is not blocked, and sieving powder can reach 400 mesh.

4. It is easy to replace the screen, easy to operate and easy to clean.
5. There are no special requirements for the equipment foundation, and the general cement floor can be used directly.
6. The machine is equipped with mesh anti-blocking device, which can effectively eliminate the blockage of the mesh.
7. The mixed materials enter from the center. After sieving, the materials of various particle sizes are automatically and continuously discharged from the respective outlets, which can realize continuous production.



Technical Parameters of Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating:

Name Diameter Power Noise Dimensions Voltage Amplitude
Data 450mm 0.18 KW ≤50dB 460*550*665mm 380V or 220V 2~5mm



Structural Composition of Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating:
  AAREAL 450 type vibro sifter consists of the body, vibrating motor, hopper, screen frame, electronic control unit etc. The machine adopts a new type of vibration structure with stable vibration and high efficiency. The screen frame is easy to operate, easy to clean, and easy to replace the screen. This machine has the advantages of novel appearance, reasonable structure and easy to operate, and is more suitable for occasions where the working place is frequently changed.
Stainless Steel Noiseless Rotary Vibrating Filter Sieve For Paint Powder Coating 0


Screen Replacement of
Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating:
  When you want to replace the screen, first remove the screen frame from the receiving pan, loosen the bolts, remove the broken screen, and then spread the new screen on the screen frame, and put the screen holder, and draw it around (avoid being too tight), leave a centimeter along the mesh ring, put on the bolts and tighten, and finally cut off the excess screen.



Stainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder CoatingStainless Steel Noiseless Rotary Vibrating Filter Sieve for Paint Powder Coating
