|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plywood wooden case (fumigation-free) for small size machine, and plastic film for big size equipment|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Keywords:||Bag Dump Screener System, Bag Dumper Station, Bag Tipping Platform, Sack Tip Station, Unpacking And Sieving Station Etc.||Function:||Unpacking And Safety Checking And Screening|
|Advantage:||With Dust Removal Function||Screening Equipment:||Low-profile Safety Vibrating Screen Machine|
|Dust Collecting System:||It Can Be Supplemented With An Optional Integral Dust Collection System||Material:||Stainless Steel 304 Or 316L, Sanitary Grade|
Bag Dump Sieve Station,
Screening Platform For Food Industry,
Dust Free Dump Sieve Station

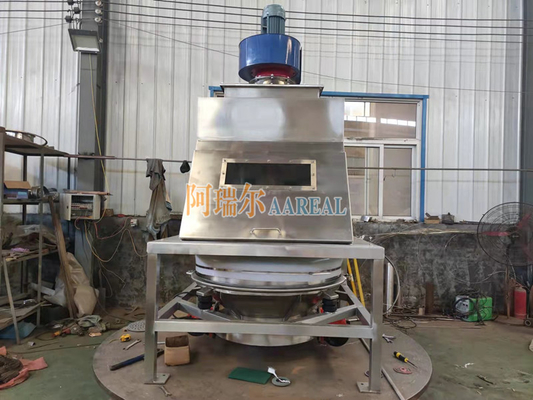

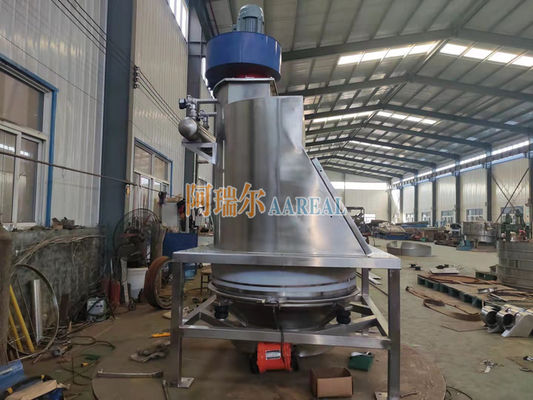

Dust-Free Bag Dump Sieve Station Bag Tipping And Screening Platform For Food Industry
Overview of Dust-Free Bag Dump Sieve Station Bag Tipping And Screening Platform For Food Industry:
Bag tipping stations, also named bag dumping station, bag dumping platform or sacks tipping stations are often an indispensable process step for manufacturers to open and discharge bags of powder inside a process. Indeed, many ingredients are still delivered in 25 and 50 kg sacks all over the industry:
Structure of Dust-Free Bag Dump Sieve Station Bag Tipping And Screening Platform For Food Industry:
The dust-free feeding and sieving station consists of feeding platform, discharge bucket, dust removal system and vibrating sieve etc.
Working Principle of Dust-Free Bag Dump Sieve Station Bag Tipping And Screening Platform For Food Industry:
Due to the action of the dust collection fan during unpacking , the material dust can be prevented from flying everywhere. When the material is unpacked and poured into the next procedure, it is only necessary to manually unpack the material and put it into the system.
Through vibrating screen (safety screening machine, low-profile vibrating sieve), the bulk materials and foreign objects can be intercepted to ensure the discharge of the required particles.
Features of Dust-Free Bag Dump Sieve Station Bag Tipping And Screening Platform For Food Industry:
1. The equipment adopts intelligent control. Efficient automation, simple operation, high efficiency and energy saving.
2. The interior has no dead angle design. Easy to remove and clean, and with little maintenance.
3. Dust removal function. Prevent material producing dust when unpacking and feeding, reducing material and energy consumption.
4. Minimize the loss of products. reverse blowing principle to achieve the reuse of materials. The principle of reverse blow is used to realize the reuse of material.
5. It can be used in combination with vibrating screen, iron separator and other modules. Complete waterproof design for easy cleaning.
6. It is applicable to systems from simple to complete integration, transfering materials through a vacuum conveyor system.
Application of Dust-Free Bag Dump Sieve Station Bag Tipping And Screening Platform For Food Industry:
Bag Tipping And Screening Platform is suitable for the unpacking, feeding, screening and unloading of small bag of materials in pharmaceutical, chemical, food, battery materials and other industries.
This kind of feeding and screening system is also applicable to the feeding process of sterile bulk drug substance. The whole feeding process can effectively protect the operator and the external environment, which is in line with the requirements of GMP and FDA production.
Sanitary Bag Dump Sieve Station with Integral Dust Collector:
The sanitary bag dump with integral dust collector reduces worker exposure to nuisance dust. The bag dump dust collection system is designed to work exclusively with the bag dumper, a proven system used to screen material at bag unloading stations. The bag dump dust collection system improves particulate containment by providing substantial vacuum below the bag dump screen rather than above. This pulls dust down and away from the operator, greatly improving airborne particulate flow into the collection system’s filters.
Clients usually use our low-profile vibrating sieve to scalp large pieces and bag parts from bags of ingredients that go into dry and wet mixes. This new product incorporates a shelf and grate to open and unload the bag as well as an integrated dust removal system with a self-cleaning blower and cartridge filters. Additionally, a magnet can be added to remove tramp metal.
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
