|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Name:||Tumbler Screening Machine, Tumbling Screen, Tumbler Screen, Tumbler Screener Etc.||Diameter:||600mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm Etc.|
|Motion:||Involute Spiral Motion, Imitate The Manual Screening Action||Mesh Cleaning System:||Self-cleaning Ball System, Ultrasonic System, Rolling Brush, Air Brush Etc.|
|Screening Accuracy:||High Up To 90% ~ 99.99%||Number Of Screen Decks:||1~5 Screen Decks|
|Optional Device:||Quick Clamps, Pneumatic Lifting Devices Etc.||Application:||Mineral Powders, Plastic Powders, Plastic Powder, Glass Beads, Xylitol, Citric Acid, Food Additives, Calcium Carbonate, Food Flour Etc.|
2300mm Ultrasonic Tumbler Screening Machine,
Tumbler Screening Machine For Aluminium Oxide,
2300mm Oxide tumbler screener

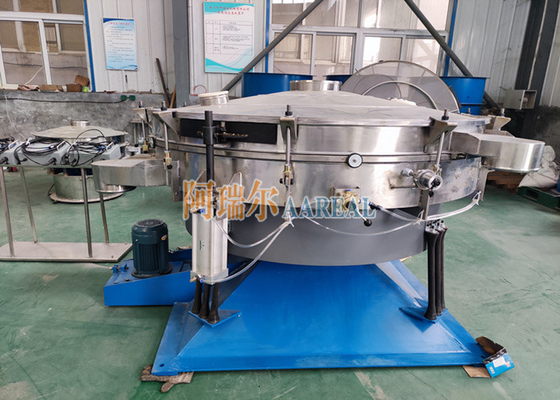

2300mm Ultrasonic Stainless Steel Tumbler Screening Machine for Aluminium Oxide
Overview of 2300mm Ultrasonic Stainless Steel Tumbler Screening Machine for Aluminium Oxide:
2300mm Ultrasonic Stainless Steel Tumbler Screening Machine for Aluminium Oxide is also known as tumbler screen, tumbler screener, tumbler screening machine etc. It is typically used to sieve extremely ine and/or lightweight products, such as food flour, micronised materials, mineral powders, plastic powders etc.
When using a typical vibrating screen equipment, you may notice that the product would rebound and tend to remain suspended, hardly coming into contact with the sieving mesh. This would result in the inefficient separation of the different particle sizes and anyway in extremely low hourly rates. Unlike a typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.
Tumbler screen is an efficient sieving machine, which is designed to meet the large-output capacity, high-density sieving of the manufacturer. The simplest screening is using your hands with the staring of your eyes. Tumbler screening is the mechanical simulation for the simplest one, it is the most effective method to stimulate the principle of artificial screen movement (screening accuracy, efficiency, life of screen mesh are 5 to 10 times than the common circular screen). It conforms to all range of fine and ultra-fine powder and particle materials, especially suitable for processing hard materials.
Important Information About 2300mm Ultrasonic Stainless Steel Tumbler Screening Machine for Aluminium Oxide You Won't Miss:
|Motion||involute spiral motion|
|Screening Accuracy||upto 90%~99.9%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
Working Principle of 2300mm Ultrasonic Stainless Steel Tumbler Screening Machine for Aluminium Oxide:
The tumbler screening machine utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.
According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.
1. The basic rotary motion is similar to the manual screening. The eccentricity is adjustable from 25 to 40mm, and the low-speed V belt drive is adjustable from 120 to 360rpm.
2. The stay time of each product can be adjusted by the radial and tangential direction of the tumbler screening.
3. Therefore build horizontal level and throw three - dimensional rolling motion. The material is distributed evenly throughout the screen from the center to the outside edge, and then the screw travels to the axial transmission. Thus, the small particles complete the screening process.
4. The horizontal and vertical acceleration increases with the motion of the particles, and the particles close to the size of the mesh are successfully separated. The larger particles are transported to the exit and the outlet is controlled by a adjustable guide device, which is another factor that controls the duration of the material's stay.
5. And the process is repeated between each sieve.
Features of 2300mm Ultrasonic Stainless Steel Tumbler Screening Machine for Aluminium Oxide:
1. Screening efficiency is highly from 90% to 99%.
Pneumatic Lifting Device BALANCE IS IMPORTANT !!
Technical Parameters of 2300mm Ultrasonic Stainless Steel Tumbler Screening Machine for Aluminium Oxide:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
Application of 2300mm Ultrasonic Stainless Steel Tumbler Screening Machine for Aluminium Oxide:
1. Metallurgy and mining industry: aluminium oxide, quartz sand, ore, titanium oxide, zinc oxide etc.
2. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry etc.
3. Chemical industry: resin pigment, medicine, grease, paint, palette etc.
4. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice etc.
5. Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder etc.
Contact Person: Ms. Magie
Features: soft rock screening does not destroy the particles original structure of the material and not easy to produce static electricity
Motion: involute spiral motion, imitate the manual screening action
Screening Accuracy: up to 90 ~ 99.9%
Mesh Cleaning Method: ultrasonic system, balls, rolling brush, air brush etc.
