|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Movement:||Involute Spiral Motion, Imitate The Manual Screening Action||Model:||AM-600, 800, 1000, 1200, 1500, 1600, 1800, 2000, 2300, 2600 Etc.|
|Diameter:||600mm~2600mm||Material:||SUS304, SUS316L Or Carbon Steel Etc.|
|Screening Accuracy:||High Upto 90%~99%||Layers Of Screen:||1~5 Layers Of Screen|
|Mesh De-blinding:||Ultrasonic System, Silicone Balls, Air Brush, Rolling Brush Etc.||Motor:||Optional General Motor, Explosion-proof Motor Etc.|
|Application:||Quartz Sand, Fracturing Sand, Ceramsite Sand, Sugar, Salt, Fertilizer, Urea, Petroleum Coke, Graphite, Activated Carbon Etc.|
SUS Ultrasonic Tumbler Screening Machine,
2000mm Tumbler Screening Machine,
2000mm tumbler screener Machine

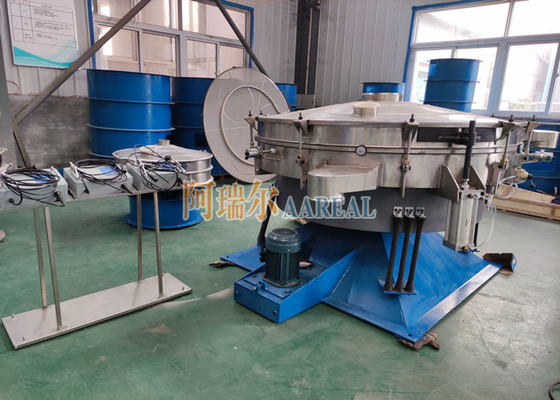

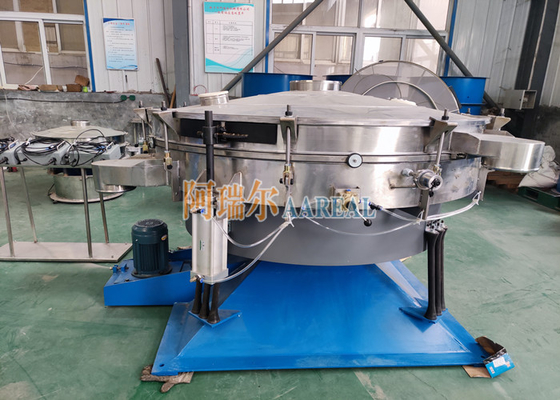

2000mm Stainless Steel Ultrasonic Tumbler Screening Machine for 100 mesh Silica Sand
Introduction of 2000mm Stainless Steel Ultrasonic Tumbler Screening Machine for 100 mesh Silica Sand:
2000mm Stainless Steel Ultrasonic Tumbler Screening Machine for 100 mesh Silica Sand is an high efficient screening equipment which is designed to meet the high-density and large output sieving of the manufacturers. The simplest sieving is hand sieving by eye. This is mechanically simulated by the tumbler screen, which takes the most effective simulation of the artificial sieving movement (screening accuracy, efficiency, screen service life is 5-10 times than usual sieving machine). Tumbler screen are suitable for all powders and granular materials in the fine and ultra fine range, especially for materials which are difficult to sift.
This kind of tumbler sieve machine is made up of a dust cover, a screen frame, a screen mesh, a motor and a base. Diameter can be ranged from 400mm to 2600mm, with single or multiple screening decks(1~5 layers, but suggest 1~3 layers). Material can be divided into all carton steel, only contact part stainless steel and all stainless steel.
Application of 2000mm Stainless Steel Ultrasonic Tumbler Screening Machine for 100 mesh Silica Sand:
This kind of tumbler screening machine is widely used in silica sand, quartz sand, fracturing sand, ceramsite sand, sugar, salt, fertilizer, urea, petroleum coke, graphite, activated carbon etc.
1. Metallurgy and mining industry: silica sand, quartz sand, ore, titanium oxide, zinc oxide, etc.
2. Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice etc.
4. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
5. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Technical Parameters of 2000mm Stainless Steel Ultrasonic Tumbler Screening Machine for 100 mesh Silica Sand:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Working Principle of 2000mm Stainless Steel Ultrasonic Tumbler Screening Machine for 100 mesh Silica Sand:
The Allgaier type tumbler screener is an artificial imitation of shaking low frequency vibration sieve, working principle is synthesis of transient motion displacement and this displacement in the radial direction of the axis of circular motion (helical motion), can adjust the eccentricity nonlinear three-dimensional motion of the exciter, the material also produces same motion approximation manual jobs, so as to achieve the purpose of screening, combined with sieving attachment can get more ideal screening effect. Suitable for circular, cylindrical, sheet, and even regular shapes easy to block network and require sophisticated screening materials.
Important Information About Tumbler Screening Machine for Titanium Dioxide with High Screening Accuracy:
|Motion||involute spiral motion, imitate the action of manual screening|
|Screening Accuracy||upto 90%~99.99%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||pneumatic lifting devices, quick clamps, ultrasonic system etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
|Motor Brand||ABB, Siemens, BEGEMA etc.|
|Surface Treatment||polishing, paint spraying, sandblast etc.|
Advantages of 2000mm Stainless Steel Ultrasonic Tumbler Screening Machine for 100 mesh Silica Sand:
1. Up to 100% availability in 24h operation with few maintenance requirements
2. Automatic centering of screening inserts and strong intermediate rings and covers for simple and fast assembly and screen changing
3. Optional: quick clamps for maximum time saving when changing screens
4. Low acceleration, long service life of all parts, no product destruction
5. Heavy pyramid base to counterbalance the rotating body
6. Extremely high screening efficiency obtainable by means of individually adjustable retention time for any product and capacity
7. 100% dustproof thanks to simple fast-mounting Silicone clip-on gaskets on the intermediate rings, thereby dispensing with the requirement to exchange the formerly used U-shaped gaskets on the screen inserts
8. Delivered operationally ready and adjusted to each product
9. Tough modular design, no dead corners, low part weights
10. Easy dismantling and cleaning of all parts down to the conical base
11. Low noise level of approx. 75 db(A)
12. Low construction height by means of reduced intermediate ring heights of 80 mm for best screen results on all decks
13. Up to 7 fractions simultaneously on each machine
14. Favorable prices and short delivery times
15. 100% statically and dynamically balanced for vibration free installation in steel structures
Contact Person: Ms. Magie
Features: soft rock screening does not destroy the particles original structure of the material and not easy to produce static electricity
Motion: involute spiral motion, imitate the manual screening action
Screening Accuracy: up to 90 ~ 99.9%
Mesh Cleaning Method: ultrasonic system, balls, rolling brush, air brush etc.
