| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AM |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood case for export |
| Delivery Time: | 20~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Diameter: | 600mm~2600mm | Movement: | Involute Spiral Tumbling Motion |
|---|---|---|---|
| Screening Accuracy: | Above 90%~99% | Characteristics: | Not Generate Static Electricity, No Damage To Material Structure |
| Material: | Carbon Steel, Stainless Steel 304, 316L Etc. | Layers Of Screen: | 1~5 |
| Mesh Cleaning Device: | Rubber Balls, Ultrasonic System, Rolling Brush, Air Brush Etc. | Motor: | General Motor, Explosion-proof Motor Optional |
| Optional Design: | Quick Clamps, Pneumatic Lifting Devices (for >1500mm Machine) Etc. | Double Screening: | Available |
| High Light: | 2300mm tumbler screening machine,5 layers tumbler screening machine,ss316l tumbler screening machine |
||

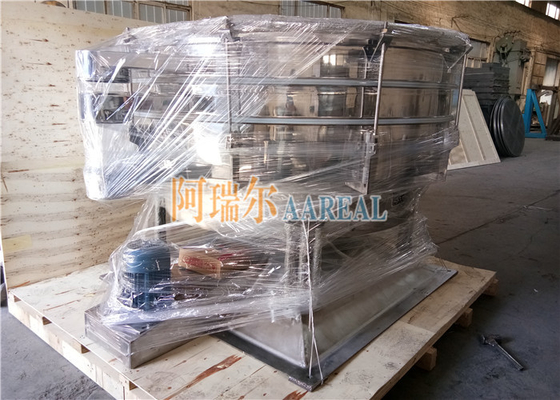

Ss316L 2300mm 5 Layers Tumbler Screening Machine
Introduction of 2300mm Stainless Steel Tumbler Screening Machine for Aluminum Hydroxide Double Screening:
2300mm Stainless Steel Tumbler Screening Machine for Aluminum Hydroxide Double Screening is a specially designed high-efficiency screening machine to meet the needs of high output and high-precision screening. It is currently the most effective method for simulating the artificial sieving movement.
Working Principle of 2300mm Stainless Steel Tumbler Screening Machine for Aluminum Hydroxide Double Screening:
Tumbler screen machine is a kind of evolving from artificial screen.The movement of circular motion and toss (upward parabolic movement) are fully embodied.The best screening effect can be achieved by adjusting the longitudinal and tangential angles and change the amplitude of circular motion and toss and changing the time of material staying on the screen surface and moving route.
Important Information About 2300mm Stainless Steel Tumbler Screening Machine for Aluminum Hydroxide Double Screening:
| Motion | involute spiral motion |
| Screening Accuracy | upto 90%~99.9% |
| Mesh Cleaning Method | bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning |
| Screen Structure | whole adhesive screen, or splicing segmented screen etc. |
| Layers of Screen | 1~5 layers of screen |
| Diameter | 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc. |
| Advantages | soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity |
| Optional | quick clamps, pneumatic lifting devices etc. |
| Application | can be used for material that is flammable, explosive and easy to generate static |
| Motor Brand | Siemens, ABB, BEGEMA, China Made etc. |
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Features of 2300mm Stainless Steel Tumbler Screening Machine for Aluminum Hydroxide Double Screening:
1. 1~5 layers of screens.
2. Low noise level of approx. 75 db(A).
3. High screening efficiency,high screening accuracy.
4. Low acceleration and low maintenance requirements.
5. Up to 90~99% availibility in 24 h operation.
6. The fully enclosed structure has good sealing and dust removal effect.
7. Easy operation,quick clamps for maximum time saving when changing screens and cleaning of all parts.
Technical Parameters of 2300mm Stainless Steel Tumbler Screening Machine for Aluminum Hydroxide Double Screening:
| Model | Screen Area (m²) | Layers of Screen | Motor Power (KW) |
| AM-600 | 0.28 | 1~5 | 0.25 |
| AM-1000 | 0.72 | 1~5 | 1.5 |
| AM-1200 | 1.10 | 1~5 | 1.5 |
| AM-1500 | 1.80 | 1~5 | 2.2 |
| AM-1800 | 2.30 | 1~5 | 4.0 |
| AM-2000 | 2.60 | 1~5 | 4.0 |
| AM-2300 | 3.90 | 1~5 | 4.0 |
| AM-2600 | 5.30 | 1~5 | 5.5 |
| AM-2900 | 6.40 | 1~5 | 5.5 |
Application of 2300mm Stainless Steel Tumbler Screening Machine for Aluminum Hydroxide Double Screening:
Chemicals Industry: Additives,Urea granules,Pigments anorganic,Pigments organic,Soda,Scrap of Polyester ,Silicon powder,Rubber,Refractory material,Catalyst,Fertilizer,etc.
Food Industry: Animal fodder,Bread crumbs,Chicken meat,Chocolate,Coffee granulates,Corn flour,Drugs,Flour,Milk powder,Potato starch,Sugar,Table salt,Whey,Wheat starch,etc.
Metallurgy Industry: Aluminum,Aluminum oxide,Iron,Fly ash,Magnetic powder,Manganese,Vanadium,Zinc,etc.
Pharmaceutical Industry: Casein,Lactose,Pharmaceutical pills,Sodium chloride,etc.
Plastics Industry: Nylon,Plastic waste,Polyacryl,Polyethylene,Scrap of Polyester,PVC powder,etc.
