|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||15~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Alternative Names:||Turbo Sieve, Centrifugal Sifter, Rotary Sifter, Airflow Screen Etc.||Machine Material:||Carbon Steel, Stainless Steel 304, 316L Etc.|
|Mesh Material:||Stainless Steel Woven Wire Mesh, Nylon Mesh Etc.||Layers Of Screen:||Single Layer Of Screen|
|Screen Cage Size:||Diameter*length 180*650mm, 300*1000mm, 500*1300mm Etc.||Mesh Size:||Below 500 Mesh, Or ≥0.028mm|
|Application:||Starch, Light Calcium Carbonate, Diatomite, White Cement, Battery Material Etc.||Surface Treatment:||Polishing, Sandblasting, Painting Etc.|
500 Mesh Rotary Sifter Screens,
Powder Rotary Sifter Screens,
Centrifugal air classifier machine

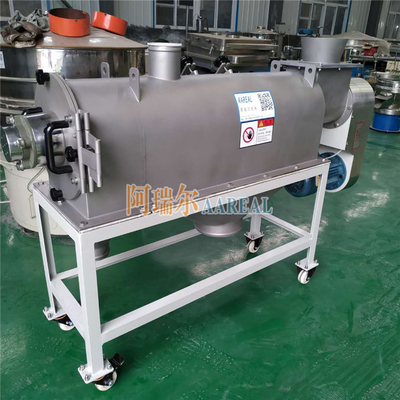

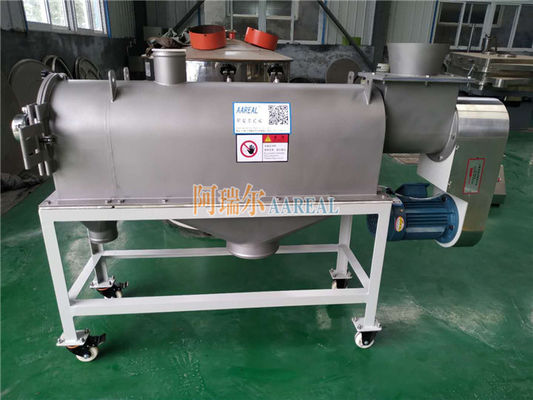

Centrifugal Sifter Airflow Screen Machine For Fine and Light Powder
Introduction of Centrifugal Sifter Airflow Screen Machine For Fine And Light Powder:
The centrifugal sifter is especially suitable for screening fine powder, low density (light specific gravity), slight humidity, easy to adhere to viscous powder or electrostatic electric reaction materials, screening with fiber mesh can avoid the phenomenon of electrostatic reaction, and can solve the problems of ordinary rotary vibrating screen and linear vibrating screen during screening production process.
Important Information You May Care About Centrifugal Sifter Airflow Screen Machine For Fine And Light Powder:
|Name||centrifugal sifter, rotary sifter, airflow screen, turbo sieve etc.|
|Model||AL-18-65, AL-30-100, AL-50-130 (special model can be customized)|
|Screen Size||screen diameter*length 180mm*650mm, 300mm*1000mm, 500mm*1300mm|
|Mesh Deblinding System||De-blinding with air, rubber, brush etc.|
|Machine Material||stainless steel 304, Q235A etc.|
|Mesh Material||stainless steel woven wire mesh, nylon mesh, wedge screen etc.|
|Layers of Screen||single layer of screen|
|Mesh Size||below 500 mesh|
|Purpose||for sieving materials of sticky, static and multi-fiber etc.|
|Application||calcium carbonate, diatomite, silica sand, quartz powder, diatomite, white cement, battery material, starch, chili powder, glucose powder, herbal powder etc.|
Overall Dimensions of Centrifugal Sifter Airflow Screen Machine For Fine And Light Powder:
Note: we can design and manufacture special type of sieving machine according to user's requirement.
General Type Cantilever Type
Stainless Steel Woven Wire Mesh Nylon Mesh
Working Principle of Centrifugal Sifter Airflow Screen Machine For Fine And Light Powder:
The mesh of the rotary centrifugal sifter screen machine is cylindrical and is placed in the machine body. After the material is mixed with the air flow through the screw conveying system, and atomized into the screen cylinder. Through the wheel blades in the screen cylinder, the material is subjected to centrifugal force and cyclone propulsion force simultaneously, so that the material is sprayed over the mesh, the material smaller than the mesh hole is discharged from the fine material outlet, and the material bigger than the mesh hole is discharged along the tube wall discharged from the coarse material outlet to achieve the purpose of efficient screening.
Features of Centrifugal Sifter Airflow Screen Machine For Fine And Light Powder:
1. The whole machine is small in size, light in weight, stable, no vibration, no noise, good sealing performance, no dust, and high efficiency.
2. The shell structure is novel, the installation is simple, and the control is convenient.
3. It can be used in single or multiple machines, long-term continuous operation, safe and reliable.
4. The screen can be automatically cleaned by the cyclone.
5. Re-crushing function for agglomerated materials.
6. The new-style outer spherical bearing extends the service life.
7. New design: The gas protection system can transport the purified air to the equipment end, which can effectively reduce the temperature generated by the equipment during operation; form a gas isolation layer on the bearing to avoid the entry of dust and effectively extend the bearing Service life, reduce maintenance frequency and improve work efficiency.
8. It can be specially designed to meet special needs.
Technical Parameters of High-efficiency Airflow Rotary Centrifugal Sifter Screens for Chili Powder:
|AL-18-65||Q235A, SUS304||< 500 mesh|
|AL-30-100||Q235A, SUS304||< 500 mesh|
|AL-50-130||Q235A, SUS304||< 500 mesh|
Application of Centrifugal Sifter Airflow Screen Machine For Fine And Light Powder:
Various starches, glucose powder, xylitol, soy protein, peanut protein, vitamin C, sorbitol, Ganoderma lucidum powder, malt powder, coffee powder, bread powder, condiments, food additives, traditional Chinese medicine powder, raw material powder, pharmaceutical intermediates , Glass beads, perlite, silicon carbide, silicon powder, activated carbon, epoxy resin, polyethylene powder, fire extinguishing agent, zircon powder, pigment (phthalocyanine blue, phthalocyanine red, phthalocyanine yellow, yellow red, high sand ceramics Pigments, etc.), magnetic materials, cobalt powder, pyrophyllite powder, barium sulfate, lithium manganate, zinc borate, fly ash, silica fume, glaze, powder coating, pollen, dehydrated vegetable powder, egg powder, milk powder, soda powder, Flavors, magnesium oxide, magnesium hydroxide, calcium oxide, silicon nitride, aluminum oxide, molybdenum disulfide, cellulose, nano-sized titanium dioxide, PVC resin powder, silica gel powder, guar gum, calcium fluoride and other powders materials.
Contact Person: Ms. Magie
Layers of Screen: single layer of screen
Type: high-performance blow-through type air classifier
Anti-blocking: no blockage because of the air brush
Application: particles with static electricity, materials easy to agglomerate and with light specific gravity, viscous materials containing water or oil etc.
