|Other Names:||Rotary Screen, Rotary Trommel Screen, Trommel Screen, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc.||Screen Size:||Screen Diameter*length 1200mm*2100mm|
|Material:||Only Contact Part Stainless Steel 304||Movement:||Rotary Motion|
|Purpose:||Overcome The Screen Plugging Problem Caused By Circular Vibrating Screen And Linear Screen In The Process Of Screening Wet Materials||Angle Of Inclination:||7°|
|Advantages:||Large Capacity, Big Screening Area, Easy To Replace The Screen Etc.||Application:||Wood Chips, Sand, Sugar, Compost Production Line Etc.|
1200*2100mm Rotary Trommel Screen,
Sugar Rotary Trommel Screen,
SS304 rotary sifter machine
1200*2100mm Food Grade Stainless Steel Rotary Trommel Screen for Sugar

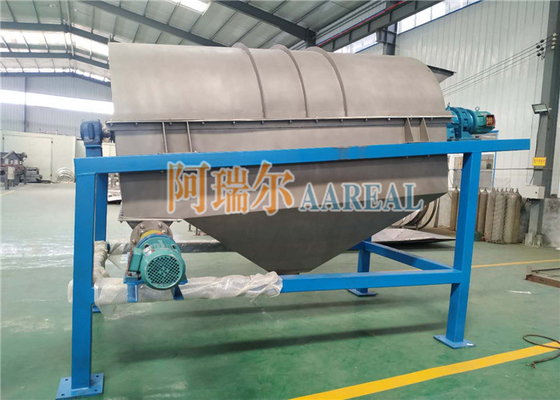

This is our GTS-1221-1S Stainless Steel Rotary Trommel Screen for Sugar with segmented screens for easy screen replacement. It is equipped with screw conveyor at the discharge port as the client's requirement. The effective screen diameter of GTS-1221 is 1200mm, and the length of the screen is 2100mm. 24 RPM, tilt angle 7 degrees and motor power 5.5KW.
The trommel screen overcomes the problem of screen sticking and blocking that occurs when various vibrating screens screen wet materials, and improves the output and reliability of the screening system. Suitable for screening materials of various properties, as well as wet and easily clogged materials such as coal, coal gangue, coke quick lime, etc. The undersize product is 100mm, the middle is 10-50mm, and the fineness can reach below 3mm. This product is well received by users.
The rotary screen is mainly composed of a motor, a reducer, a drum device, a frame, a sealing cover, and an inlet and outlet. When working, the motor is connected with the roller device through the reducer through a coupling, and drives the roller device to rotate around its axis. When the material enters the drum device, due to the tilt and rotation of the drum device, the material on the screen surface is turned and rolled, so that the qualified materials are discharged through the screen on the outer circle of the drum, and the unqualified materials are discharged through the end of the drum. Widely used in power plants, coking plants, building materials, metallurgy, chemical, mining and other industries.
Features of Rotary Trommel Screen for Sugar:
1. The rolling conveying principle is adopted, the friction coefficient is small, and the blockage of the screen holes is reduced through the material rolling.
2. Equipped with comb-shaped screen mesh cleaning device. During the screening process, the material is not easy to be blocked by the relative movement of the screen cleaning machine and the screen body.
3. The installation tilt angle is small and it is not easy to be blocked. It is mainly used for the classification of powdery materials and has a good filtering effect.
4. The entire screening mechanism is designed in a sealed dust cover, which eliminates the phenomenon of dust flying and noise during the screening process.
5. The equipment observation windows on both sides of the sealed dust cover, the end of the sealed cover and the side of the cleaning machine mechanism are equipped with quick opening doors for maintenance, which is convenient for equipment maintenance.
6. The screen is composed of several circular flat steels with high screening efficiency and long service life.
Working Principle of Rotary Trommel Screen for Sugar:
The trommel screen's main structure is cylindrical drum, which is inclined and installed on the frame. The geared motor is connected to the drum device through a coupling, the driving drum will rotate around the axis direction. When the materials enters the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface is overturned and rolled so that the fine material is discharged through the discharge port at the bottom of the back end of the drum of trommel screen, and the coarse material is discharged through the discharge port at the tail of the drum discharge. As the material in the drum devise flip, rolling, so the materials stuck in the sieve can be ejected to prevent the sieve blocking.
Material Running State in the Rotary Screen
|Other Names||rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc.|
|Movement||rotary centrifugal movement|
|Power Source||general motor and reducer|
|Type||with shaft, shaftless|
|Angle of Inclination||5°~7°|
|Material||carbon steel, stainless steel 304, 316L|
|Advantages||overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials|
|Features||have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened|
Application of Rotary Trommel Screen for Sugar:
The trommel screen is always used for refractory materials, inferior coal, coal slime, bottom ash,sand classification, sandstone block classification.
Structure of Rotary Trommel Screen for Sugar:
The trommel screen mainly consists of motor,reducer,roller device, frame, sealing cover and inlet & outlet. Due to the turning and rolling of the material in the drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged.
Rotary screen is mounted obliquely on the frame. The motor is coupled to the drum unit via coupling and reducer to drive the drum unit to rotate about its axis. After the material enters the trommel screen, due to the tilting and rotation of the roller device, the material on the sieve surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified material (upper screen product) is discharged through the discharge port at the end of the drum.
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
Technical Parameters of Rotary Trommel Screen for Sugar:
|Screen Drum Diameter (mm)||
|Motor Power (KW)|
