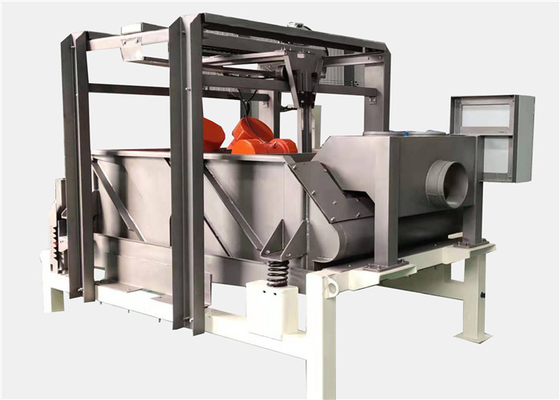

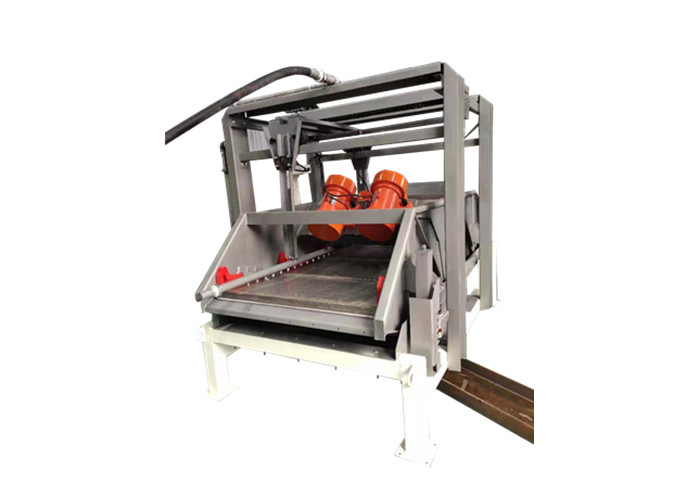

Rectangular Vibrating Solid Liquid Separator Dual Motion

Rectangular Vibrating Solid Liquid Separator Dual Motion

  • Rectangular Vibrating Solid Liquid Separator Dual Motion
  • Rectangular Vibrating Solid Liquid Separator Dual Motion
Rectangular Vibrating Solid Liquid Separator Dual Motion
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AES
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Function: Used For Solid-liquid Separation Structural Feature: Mobile Water Spraying System Optional
Movement: Includes Both Elliptical And Linear Motion Advantages: High Vibration Intensity, Large Screening Area, Adjustable Screen Box Angle, Compact Structure And Excellent Performance Etc.
Amplitude: 5mm~6mm Screen Decks: 1~2 Layers Of Screen
Power Source: 3 Sets Vibrating Motors Application: Papermaking, Non-ferrous Metals, Metallurgy, Building Materials, Chemical, Refractory, Cement, Ceramic, Grain, Food, Drilling Mud Purification System Etc.
Highlight:

wet vibrating screen

,

sieve separator machine

Rectangular Vibrating Solid Liquid Separator Dual Motion



Introduction of Dual Motion Rectangular Vibrating Solid Liquid Separator for Papermaking:

Dual Motion Rectangular Vibrating Solid Liquid Separator for Papermaking is specially designed for solid-liquid separation. The revolutionary dual motion mode includes both elliptical and linear motion. This innovative design allows the operator to switch between two motion modes directly during the operation of the machine to meet the screening requirements of different materials, isolate solids and liquids, separate solid particles with different sizes, and remove other impurities.



Advantages of Dual Motion Rectangular Vibrating Solid Liquid Separator for Papermaking:

Elliptical Motion Linear Motion

1. Gravity acceleration (g) is small.

2. The residence time of the material on the sieve plate is long, and the screening effect is good.

3. Material concentration increases

4. Improve the service life of the sieve plate.

1. Large gravity acceleration (g), good vibration effect.

2. Fast material passing speed.

3. The processing capacity of the vibrating screen is large.



Technical Parameters of of Dual Motion Rectangular Vibrating Solid Liquid Separator for Papermaking:

Rectangular Vibrating Solid Liquid Separator Dual Motion 0

Model AES68-3 AES63-3 AES60-3
Vibration Trajectory Ellipse Ellipse Ellipse
Motor Power

2*2.2KW

1*0.75KW

2*1.5KW

1*0.55KW

2*1.1KW

1*0.25KW

Vibration Intensity ≤7.0 G ≤7.0 G ≤6.5 G
Amplitude 5.5~6.0 mm 5.5~6.0 mm 5.5~6.0 mm
Capacity of Single Screen

≤110m³/h

615 GPM

≤90m³/h

528 GPM

≤70m³/h

352 GPM

Adjustment Angle of Screen Box -3°~3° -3°~3° -3°~3°
Motor Frequency and Voltage 380V/50HZ, 460V/60HZ
Screen Area 2.5 m² 2.3 m² 1.8 m²
Screen Size

680*1250mm

(40~250 mesh)

630*1250mm

(40~250 mesh)

600*1050mm

(40~250 mesh)

Layers of Screen 1~2 1~2 1~2
Quantity of Single Layer Screen 4 4 4
Mobile Sprinkler System Optional Optional

1 set.

The water pressure is about 5 KG and flow at 290 L/H

Weight 1880 kg 1680 kg 1300 kg
Remarks

Parameters of the material to be screened:

1. Material name: paper pulp

2. Material temperature: 60~70℃

3. Material viscosity: <120 CPS (mPas)

4. Material specific gravity: <1.1 kg/dm³

5. Concentration: 5-15%



Characteristics of Dual Motion Rectangular Vibrating Solid Liquid Separator for Papermaking:

1. The screen is fixed by the compact block. The material of the compact block is high polymer material.

2. It is simple and convenient to replace the screen plate by knocking out the compact block and re-pressing it after replacement.

3. The equipment is easy to operate and does not require daily maintenance.

4. The noise of the equipment is low. Noise is less than 75 decibels from one meter away from the vibrating sieve.

5. The screen body is coated with more than two layers of epoxy resin protective paint.



Working Principle of Dual Motion Rectangular Vibrating Solid Liquid Separator for Papermaking:

Rectangular Vibrating Solid Liquid Separator Dual Motion 1

  The rectangular vibrating separator adopts automatic spraying system. The spraying water pressure is about 5 KG and the flow rate is 290 L/H. The operator can set the timed spray interval, which can effectively extend the downtime interval and reduce the waste of paint without affecting the paint concentration.

  The dual motion rectangular vibration filter wet sieving machine is equipped with three vibration motors, which provide two motion modes: linear motion and elliptical motion. The rectangular wet screening machine is driven by a vibration motor installed on the frame beam. The vibration is transmitted to the sieve plate, and the material to be sieved is released to the sieve plate through the pipe inserted into the dual motion rectangular vibration filter wet screening machine. The vibration of the sieve plate makes the smaller particle size (qualified particle size) pass through the sieve plate and enter the sieve bottom, and enters the next process through the pipeline installed at the bottom of the sieve. The material with larger particle size (unqualified particle size) stays on the upper part of the sieve plate, enters the groove at the front of the vibrating screen, and enters the next process through the pipe installed at the bottom of the groove.

  The linear motion can generate 6G gravity acceleration, the elliptical motion can generate 5G gravity acceleration. People can choose the movement mode of the vibrating screen through the switch in the control box. The elliptical motion is more gentle, and the screen service life is longer. The solid conveying capacity of the linear motion is high.
