|Movement:||Includes Both Elliptical And Linear Motion||Structural Feature:||Mobile Water Spraying System Optional|
|Advantages:||High Vibration Intensity, Large Screening Area, Adjustable Screen Box Angle, Compact Structure And Excellent Performance Etc.||Layers Of Screen:||1~2 Layers|
|Drive Device:||3 Sets Vibrating Motors||Purpose:||Used For Solid-liquid Separation|
|Amplitude:||5.5mm~6.0mm||Application:||Papermaking, Non-ferrous Metals, Metallurgy, Building Materials, Chemical, Refractory, Cement, Ceramic, Grain, Food, Drilling Mud Purification System Etc.|
wet screening equipment,
wet vibrating screen

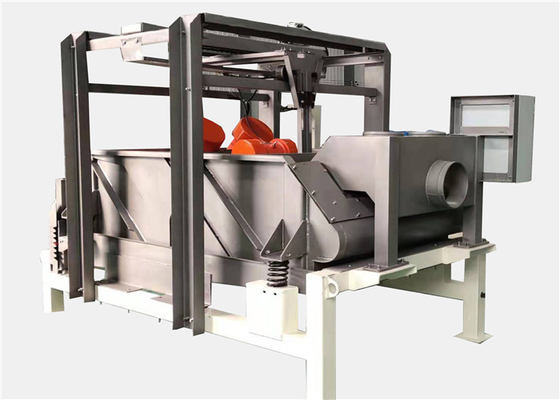

Multi Motion Solid Liquid Separator Rectangular Sifter
Overview of Rectangular Multi Motion Vibrating Separator for Liquid Solid Separation:
Rectangular Multi Motion Vibrating Separator for Liquid Solid Separation is specially designed for solid-liquid separation which makes it ideal for processes that contain any effluent wastewater application. It’s true that the multi-motion vibrating wet screening machine is an excellent conveyor of solids and its screen changing ability is fast and easy, but its most impressive feature is that of its ability to adapt as solids’ characteristics change.
Characteristics of Rectangular Multi Motion Vibrating Separator for Liquid Solid Separation:
1. The screen is fixed by the compact block. The material of the compact block is high polymer material.
2. It is simple and convenient to replace the screen plate by knocking out the compact block and re-pressing it after replacement.
3. The noise of the equipment is low. Noise is less than 75 decibels from 1 meter away from the vibrating sieve.
4. The equipment is easy to operate and does not require daily maintenance.
5. The screen body is coated with more than two layers of epoxy resin protective paint.
Working Principle of Rectangular Multi Motion Vibrating Separator for Liquid Solid Separation:
The rectangular vibrating screen adopts automatic spraying system. The spraying water pressure is about 5 KG and the flow rate is 290 L/H. The operator can set the timed spray interval, which can effectively extend the downtime interval and reduce the waste of paint without affecting the paint concentration.

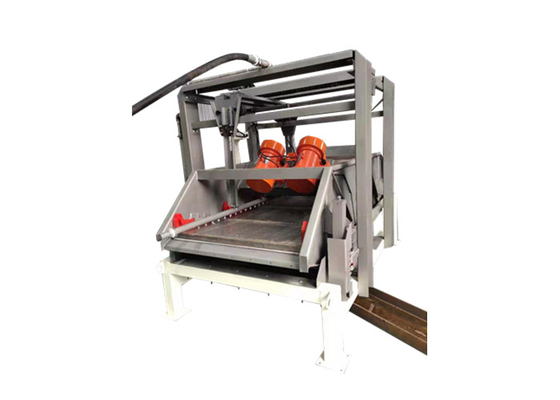

The dual motion rectangular vibration filter wet screening machine is equipped with three vibration motors, which provide two motion modes: linear motion and elliptical motion. The rectangular wet screening machine is driven by a vibration motor installed on the frame beam. The vibration is transmitted to the sieve plate, and the material to be sieved is released to the sieve plate through the pipe inserted into the dual motion rectangular vibration filter wet screening machine. The vibration of the sieve plate makes the smaller particle size (qualified particle size) pass through the sieve plate and enter the sieve bottom, and enters the next process through the pipeline installed at the bottom of the sieve. The material with larger particle size (unqualified particle size) stays on the upper part of the sieve plate, enters the groove at the front of the vibrating screen, and enters the next process through the pipe installed at the bottom of the groove.
The linear motion can generate 6G gravity acceleration, the elliptical motion can generate 5G gravity acceleration. People can choose the movement mode of the vibrating screen through the switch in the control box. The elliptical motion is more gentle, and the screen service life is longer. The solid conveying capacity of the linear motion is high.
Advantages of Compound Motion for Rectangular Multi Motion Vibrating Separator for Liquid Solid Separation:
|Linear Motion||Elliptical Motion|
1. Large gravity acceleration (g), good vibration effect.
2. Fast material passing speed.
3. The processing capacity of the vibrating screen is large.
1. Gravity acceleration (g) is small.
2. The residence time of the material on the sieve plate is long, and the screening effect is good.
3. Material concentration increases
4. Improve the service life of the sieve plate.
Profile Drawing of Rectangular Multi Motion Vibrating Separator for Liquid Solid Separation:
Technical Parameters of of Rectangular Multi Motion Vibrating Separator for Liquid Solid Separation:
|Vibration Intensity||≤7.0 G||≤7.0 G||≤6.5 G|
|Amplitude||5.5~6.0 mm||5.5~6.0 mm||5.5~6.0 mm|
|Capacity of Single Screen||
|Adjustment Angle of Screen Box||-3°~3°||-3°~3°||-3°~3°|
|Motor Frequency and Voltage||380V/50HZ, 460V/60HZ|
|Screen Area||2.5 m²||2.3 m²||1.8 m²|
|Layers of Screen||1~2||1~2||1~2|
|Quantity of Single Layer Screen||4||4||4|
|Mobile Sprinkler System||Optional||Optional||
The water pressure is about 5 KG and flow at 290 L/H
|Weight||1880 kg||1680 kg||1300 kg|
Parameters of the material to be screened:
1. Material name: paper pulp
2. Material temperature: 60~70℃
3. Material viscosity: <120 CPS (mPas)
4. Material specific gravity: <1.1 kg/dm³
5. Concentration: 5-15%
