| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | ZWS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | Only The Screen Mesh Vibrates, The Screen Box Does Not Vibrate | Purpose: | Screening, Grading, Dewatering And Desilting Of Fine Materials |
|---|---|---|---|
| PLC Controller: | Yes | Power Source: | Electromagnetic Exciter, Vibrating Motors |
| Screen Angle: | 20°, 25°, 30°, 35° | Screen Surface: | The Screen Is Composed Of Three Layers Of Woven Mesh, Or Single Layer Mesh Of Coarse Silk |
| Characteristics: | Minimal Dynamic Load, Safe To Use, Easy To Maintain, Small Footprint Etc. | Application: | Ore Dressing, Compound Fertilizer Industry, Tailings Dry Dewatering Etc. |
| High Light: | dewatering vibrating screen,material screening equipment |
||

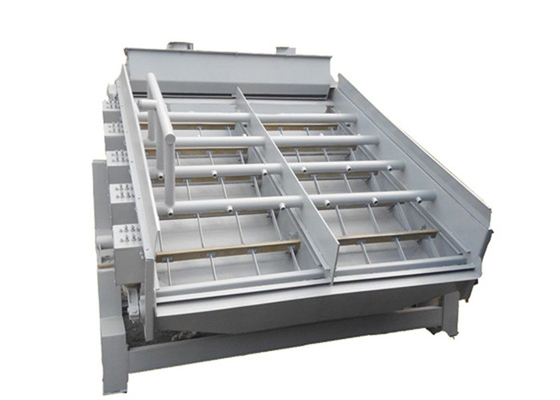

High Vibration Rectangular Vibrating Screen Self Cleaning For Silica Sand
Overview of High Frequency Rectangular Vibrating Mesh Screen Machines for Silica Sand:
High Frequency Rectangular Vibrating Mesh Screen Machines for Silica Sand uses the latest digital electronic control and electromagnetic vibration principle. The screen box has no vibration, and only the screen surface has vibration. The amplitude of the screen surface can reach 1-3mm, and the vibration intensity is 3~4 times as strong as that of general screening equipment, so the screen mesh can never be blocked. The screen surface has an excellent self-cleaning ability, high efficiency and a large capacity. The screen mesh is made of composite stainless steel, and the opening rate is as high as 38%. Besides, the screening angle can be adjusted (20 ° ~26 °).
Features of High Frequency Rectangular Vibrating Mesh Screen Machines for Silica Sand:
1. Minimal dynamic load.
2. The sieve surface vibrates, while the screen box does not.
3. No mesh blocking. With strong sieve surface self-cleaning ability, high screening efficiency and large processing capacity.
4. It is very suitable for screening of fine particle materials.
5. Safe to use, easy to maintain, small footprint.
6. Saving energy and protecting environment.
7. The screen installation angle can be easily adjusted to meet the nature of materials and different screening operations.
8. The screen is composed of three layers of woven mesh. And the composite screen has a high opening rate. The screen can also use single layer mesh of coarse silk.
Technical Parameters of High Frequency Rectangular Vibrating Mesh Screen Machines for Silica Sand:
| Model | Screen Area (㎡) | Working Frequency (Hz) |
Screen Slope ( °) |
Power (Kw) |
Weight (Kg) | Reference Size (including maintenance platform) L*W*H (mm) |
| 2ZWS1518-D-II | 2×2.7 | 50 | 20;25;30;35 | 1.8 | 4300 | 3603*3824*2856 |
| 3ZWS1518-D-II | 3×2.7 | 50 | 20;25;30;35 | 2.7 | 5500 | 4348*3824*3390 |
| 2ZWS2018-S-II | 2×3.6 | 50 | 20;25;30;35 | 3.6 | 5300 | 3649*4456*2830 |
| 3ZWS2018-S-II | 3×3.6 | 50 | 20;25;30;35 | 5.4 | 8000 | 4348*4456*3300 |
| 4ZWS2018-S-II | 4×3.6 | 50 | 20;25;30;35 | 7.2 | 10900 | 4829*4450*3900 |
| 2ZWS2020-S-II | 2×4.0 | 50 | 20;25;30;35 | 3.6 | 5500 | 3750*4456*2814 |
| 3ZWS2020-S-II | 3×4.0 | 50 | 20;25;30;35 | 5.4 | 8400 | 4575*4456*3305 |
| 4ZWS2020-S-II | 4×4.0 | 50 | 20;25;30;35 | 7.2 | 11500 | 5220*4456*3996 |
| 2ZWS2418-S-II | 2×4.32 | 50 | 20;25;30;35 | 3.6 | 5700 | 3649*4766*2856 |
| 3ZWS2418-S-II | 3×4.32 | 50 | 20;25;30;35 | 5.4 | 8600 | 4348*4766*3297 |
| 4ZWS2418-S-II | 4×4.32 | 50 | 20;25;30;35 | 7.2 | 11700 | 4829*4766*3832 |
| 2ZWS2420-S-II | 2×4.8 | 50 | 20;25;30;35 | 3.6 | 5900 | 3750*4766*2835 |
| 3ZWS2420-S-II | 3×4.8 | 50 | 20;25;30;35 | 5.4 | 9000 | 4575*4766*3300 |
| 4ZWS2420-S-II | 4×4.8 | 50 | 20;25;30;35 | 7.2 | 12300 | 5220*4766*3900 |
Working Principle of High Frequency Rectangular Vibrating Mesh Screen Machines for Silica Sand:
The sieve machine is driven by an electromagnetic exciter. The electromagnetic force makes the vibrating arm placed under the sieve surface torsion and swing through a force transmission bolt, a main vibration spring, a hinge spring, a vibration rod and a vibration shaft. A vibrating cap is provided on the upper end of the vibrating arm to support the screen to generate vibration. The vibration system works in a near-resonance state, and the power required for screening is achieved with less power. The vibration intensity of the screen surface is 8-10 times the gravity doubling speed, which is 2-3 times that of the general vibration screen. High screening efficiency and large processing capacity.
The multi-layer screen machine is divided into single channel and double channel. Each layer of screen in single channel consists of four groups of vibration system and one group of exciters. Each layer of dual-channel screener consists of eight sets of vibration systems and two sets of exciters, which are distributed on the left and right sides of the screen box. The rated power of each group of exciters is 900W, which will cause 50Hz high frequency vibration on the screen surface. The screen surface vibration parameters are controlled by the control cabinet. The vibration system has the function of instantaneous strong vibration to clean the screen and reduce the mesh blockage.
Application of High Frequency Rectangular Vibrating Mesh Screen Machines for Silica Sand:
High frequency electromagnetic vibrating screen is applicable to the screening, grading and dehydration of dry and wet materials in Mineral Speration, Coal Dressing, Brickmaking, Foodstuff, Pharmacy, Chemical, Alkali production, Fertilizer, Papermaking etc.
Motor Vibrating Mesh Screen
Electromagnetic Vibrating Mesh Screen
