| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AM |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | High Accuracy, Dust-proof, Large Capacity, Long Screen Service Life Etc. | Movement: | Simulate Artificial Screening Motion |
|---|---|---|---|
| Screening Accuracy: | High Upto 90%~99.9% | Layers Of Screen: | 1~5 Layers Of Screen |
| Diameter: | 600mm~2300mm | Mesh De-blinding: | Bouncing Balls, Air Brush, Rolling Brush, Ultrasonic De-blinding System Etc. |
| Material: | Stainless Steel 304, 316L, Carbon Steel Etc. | Application: | Silica Sand, Refractory, Kaolin, Glass Powder Etc. |
| High Light: | Lime Gravel Tumbler Sieving Machines,99.9% tumbler sifter,Lime Gravel Tumbler Sieving Machines |
||

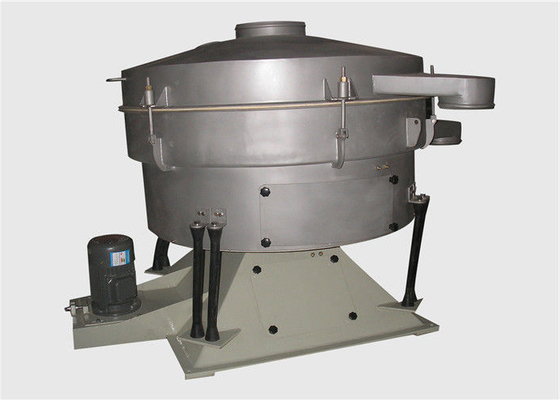

Lime Gravel Classification Round Separator , Unique Tumbler Sieving Machines
Introduction of Large Screening Yield Tumbler Sieving Machines for Lime Gravel Classification:
Large Screening Yield Tumbler Sieving Machines for Lime Gravel Classification is a kind of inertial equipment with mature technology and classical application.Its new design Philosophy and unique structure making it the closest manual screen machine. The Tumbler screening machine have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen. The Tumbler screening machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving.
Characteristics of Large Screening Yield Tumbler Sieving Machines for Lime Gravel Classification:
1. Ingenuity: Circular building block assembly structure, small volume, light weight. Easy to install and disassemble.
2. Can add many kinds of the self-cleaning device to the screen surface. Can avoid blocking the screen. There are five kind of self-cleaning device for you to choice: bouncing ball, Rolls brushes, jet type, elastic scraper, ultrasonic.
3. No environment pollution: Fully closed structure, almost no let out of material dust.
4. High screening accuracy: It can imitate the screening action and process of manual operation effectively. Make the material walk a long distance on the screen surface, improve the screening accuracy.
5. High capacity: The unit area capacity is five times bigger than other screen.
6. Long service life: Low frequency, small load, so low load to the screen, can be used for long time.
7. Use brand motor as power source:with longer service life.
8. Low noise: The noise < 75db
Working Principle of Large Screening Yield Tumbler Sieving Machines for Lime Gravel Classification:
The tumbler screener machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft. The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.
Important Information About Large Screening Yield Tumbler Sieving Machines for Lime Gravel Classification:
| Motion | involute spiral motion, imitate the manual screening action |
| Screening Accuracy | upto 90%~99.9% |
| Diameter | 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2300mm, 2600mm etc. |
| Mesh Cleaning Method | bouncing ball cleaning, ultrasonic de-blinding system, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning |
| Screen Structure | whole adhesive screen, or splicing segmented screen etc. |
| Layers of Screen | 1~5 layers of screen |
| Diameter | 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc. |
| Advantages | soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity |
| Optional | pneumatic lifting devices, quick clamps etc. |
| Application | can be widely used for material that is flammable, explosive and easy to generate static |
| Motor Brand | ABB, Siemens, BEGEMA etc. |
| Surface Treatment | polishing, sandblast, paint spraying etc. |
Technical Parameters of Large Screening Yield Tumbler Sieving Machines for Lime Gravel Classification:
| Model | Screen Area (m²) | Layers of Screen | Motor Power (KW) |
| AM-600 | 0.28 | 1~5 | 0.25 |
| AM-1000 | 0.72 | 1~5 | 1.5 |
| AM-1200 | 1.10 | 1~5 | 1.5 |
| AM-1500 | 1.80 | 1~5 | 2.2 |
| AM-1800 | 2.30 | 1~5 | 4.0 |
| AM-2000 | 2.60 | 1~5 | 4.0 |
| AM-2300 | 3.90 | 1~5 | 4.0 |
| AM-2600 | 5.30 | 1~5 | 5.5 |
| AM-2900 | 6.40 | 1~5 | 5.5 |
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Application of Large Screening Yield Tumbler Sieving Machines for Lime Gravel Classification:
1. Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.
2. Food industry: sugar, salt, alkali, flour powder, nut powder, farina, gourmet powder, starch, milk powder, yeast powder,
pollen,food additive, bean milk, juice, etc.
3. Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
4. Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
5. Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
6. Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
