|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Features:||Longer Screen Service Time, High Accuracy, Dust-proof, Large Capacity Etc.||Screening Accuracy:||High Upto 90%~99.9%|
|Diameter:||600mm~2300mm||Layers Of Screen:||1~5 Layers Of Screen|
|Mesh De-blinding:||Ultrasonic De-blinding System, Bouncing Balls, Rolling Brush, Air Brush Etc.||Quick-wear Parts:||Screens, Silicone Balls,rubber Balls, Rubber Spring, Sealing Rubber Strip Etc.|
|Motor:||General Motor Or Explosion-proof Motor||Application:||Stones And Soil, Chemicals, Foodstuffs, Pharmaceuticals Etc.|
Pumice Stone Tumbler Screening Machine,
Pumice Stone tumbler screener,
Foodstuffs Tumbler Screening Machine

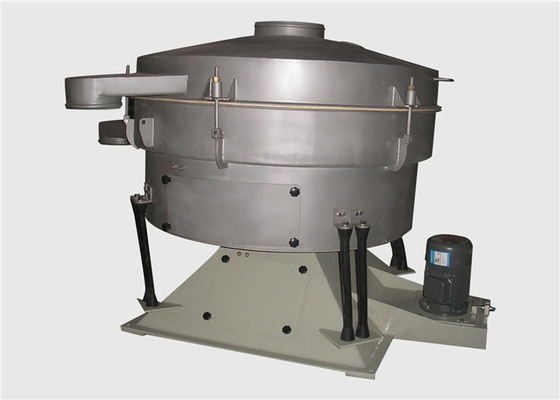

High Sieving Accuracy Tumbler Screening Machine For Pumice Stone Separation
Introduction of High Sieving Accuracy Tumbler Screening Machines for Pumice Stone Separation:
High Sieving Accuracy Tumbler Screening Machines for Pumice Stone Separation is a separation method that uses three-dimensional elliptical movement to separate very fine particles from larger ones. It is an important technique applied in many fields dealing with raw materials and building materials for process and reuse. This technique can achieve 99% high efficiency with its circular movement. Machines with tumbler screening techniques are commonly used because of its unique rush design, high life time utility, and the flexible angular velocity the machines can achieve. However, this type of machine requires low feed flow rate and the particles size for separation have to be controlled within a specific range.
Working Principle of High Sieving Accuracy Tumbler Screening Machines for Pumice Stone Separation:
The tumbler screener machine is a mechanical with simulation of that. The tumbler screen machine successfully simulates the effective principle of manual screening movement (screening accuracy, efficiency and screen’s work life is 5-10 times than the conventional round screen), and it also conforms to all fine and ultra-fine range of powder and particulate materials, especially for difficult to handle materials.
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Technical Parameters of High Sieving Accuracy Tumbler Screening Machines for Pumice Stone Separation:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
Characteristics of High Sieving Accuracy Tumbler Screening Machines for Pumice Stone Separation:
1. High screening accuracy: It can imitate the screening action and process of manual operation effectively. Make the material walk a long distance on the screen surface, improve the screening accuracy.
2. High capacity: The unit area capacity is five times bigger than other screen.
3. Long service life: Low frequency, small load, so low load to the screen, can be used for long time.
4. Ingenuity: Circular building block assembly structure, small volume, light weight. Easy to install and disassemble.
5. Can add many kinds of the self-cleaning device to the screen surface. Can avoid blocking the screen. There are five kind of self-cleaning device for you to choice: bouncing ball, Rolls brushes, jet type, elastic scraper, ultrasonic.
6. No environment pollution: Fully closed structure, almost no Let out of material dust.
7. Low noise: The noise < 75db
8. Use brand motor as power source:with longer service life.
Important Information About High Sieving Accuracy Tumbler Screening Machines for Pumice Stone Separation:
|Motion||involute spiral motion, imitate the manual screening action|
|Screening Accuracy||upto 90%~99.9%|
|Diameter||600mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2300mm, 2600mm etc.|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic de-blinding system, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
|Motor Brand||Siemens, ABB, BEGEMA etc.|
|Surface Treatment||polishing, sandblast, paint spraying etc.|
Application of High Sieving Accuracy Tumbler Screening Machines for Pumice Stone Separation:
The tumbler screening machine is widely used in a variety of industries. For example, it can be used to remove Impurities in food processing to ensure product quality and safety. For the chemical industry, solids can be separated from solids or liquids. In addition, it can also be used in medicine and recycle , Mining, plastic, soil, etc. to classify light, heavy, small, dry, dusty, wet and sticky materials of various particle sizes.
1. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
2. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
3. Medicinal industry: all kinds of medicine.
4. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
5. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
Contact Person: Ms. Magie
Features: soft rock screening does not destroy the particles original structure of the material and not easy to produce static electricity
Motion: involute spiral motion, imitate the manual screening action
Screening Accuracy: up to 90 ~ 99.9%
Mesh Cleaning Method: ultrasonic system, balls, rolling brush, air brush etc.
