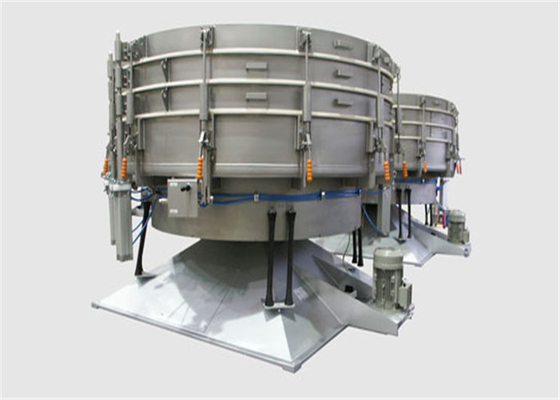

High Efficiency Vibro Screen Separator Machine For Steel Granules Grading

High Efficiency Vibro Screen Separator Machine For Steel Granules Grading

  • High Efficiency Vibro Screen Separator Machine For Steel Granules Grading
  • High Efficiency Vibro Screen Separator Machine For Steel Granules Grading
High Efficiency Vibro Screen Separator Machine For Steel Granules Grading
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Screening Accuracy: High Upto 90%~99.9% Model: AY-600, 800, 1000, 1200, 1500, 1800, 2000, 2300 Etc.
Characteristics: High Accuracy, Large Capacity, Dust-proof, Longer Screen Service Time Etc. Mesh De-blinding: Ultrasonic De-blinding System, Bouncing Balls, Rolling Brush, Air Brush Etc.
Layers Of Screen: 1~5 Layers Of Mesh Screens Spare Parts: Rubber Balls, Silicone Balls, Rubber Spring, Screen, Sealing Rubber Strip Etc.
Motor Brand: Siemens, ABB Etc. Application: PVC Powder, Xylitol, Activated Carbon, Calcium Carbonate Etc.
High Light:

Steel Granules Vibro Screen Separator

,

Steel Granules tumbler screener

,

1200mm Vibro Screen Separator

High Efficiency Vibro Screen Separator Machine For Steel Granules Grading



Introduction of High Yield Tumbling Screener Machines for Steel Granules Grading:

High Yield Tumbling Screener Machines for Steel Granules Grading is an low frequency and high efficiency rotary vibrating screen which simulate manual hand shaking motion. The working principle of tumbler screen is instantaneous movement of the radial direction displacement and circular motion with this radial displacement as the axis (spiral motion), the exciter generates of swing tumbler screen nonlinear three dimensional motion, the materials also generates similar motion of manual operation, and achieve separating purpose.



Working Principle of High Yield Tumbling Screener Machines for Steel Granules Grading:

The tumbler screen sifting machine is a mechanical with simulation of that. The tumbler screen machine successfully simulates the effective principle of manual screening movement (screening accuracy, efficiency and screen’s work life is 5-10 times than the conventional round screen), and it also conforms to all fine and ultra-fine range of powder and particulate materials, especially for difficult to handle materials.



High Efficiency Vibro Screen Separator Machine For Steel Granules Grading 0High Efficiency Vibro Screen Separator Machine For Steel Granules Grading 1

Advantages of High Yield Tumbling Screener Machines for Steel Granules Grading:

1. High Output and Accuracy: The sieve radius of 600mm~2600mm and rotating speed of 120~360RPM

2. Unique body structure: Unique design based on engineering science
3. Top 304 Stainless Plate: Machine parts made by top 304 stainless panel

4. Low working noise: Only 70~75 decibel of working noise
5. Artificial Oscillation: Using artificial sieving motion
6. Motors Protection: Motors pefectly wrapped in copper wire



Technical Parameters of High Yield Tumbling Screener Machines for Steel Granules Grading:

High Efficiency Vibro Screen Separator Machine For Steel Granules Grading 2

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5



High Efficiency Vibro Screen Separator Machine For Steel Granules Grading 3High Efficiency Vibro Screen Separator Machine For Steel Granules Grading 4

               BALANCE IS IMPORTANT !!                              Pneumatic Lifting Device



Important Information About High Yield Tumbling Screener Machines for Steel Granules Grading:

Motion involute spiral motion
Screening Accuracy upto 90%~99.9%
Diameter 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2300mm, 2600mm etc.
Mesh Cleaning Method bouncing ball cleaning, ultrasonic de-blinding system, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure whole adhesive screen, or splicing segmented screen etc.
Layers of Screen 1~5 layers of screen
Diameter 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
Optional quick clamps, pneumatic lifting devices etc.
Application can be used for material that is flammable, explosive and easy to generate static
Motor Brand Siemens, ABB, BEGEMA etc.
Surface Treatment polishing, sandblast, paint spraying etc.



Application of High Yield Tumbling Screener Machines for Steel Granules Grading:

1. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.

2. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine power, industrial medicine.
3. Metal, metallurgy mining industry: copper powder, dioxide manganese, electrolyse copper powder, lithium battery materials, ore alloy powder, welding rod powder, aluminum powder, ceruse, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.



High Efficiency Vibro Screen Separator Machine For Steel Granules Grading 5High Efficiency Vibro Screen Separator Machine For Steel Granules Grading 6
