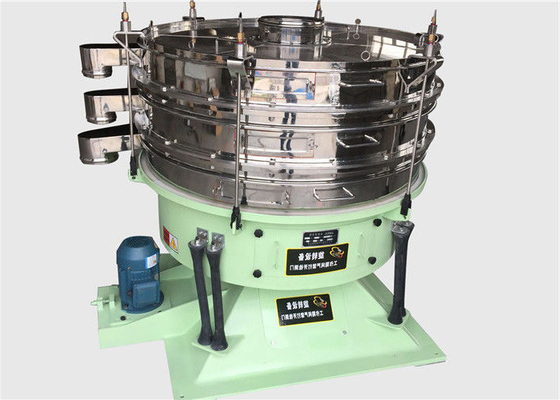

Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills

Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills

  • Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills
  • Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills
Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Screening Accuracy: High Upto 90%~99.9% Model: AY-600, 800, 1000, 1200, 1500, 1800, 2000, 2300 Etc.
Material: Carbon Steel, Stainless Steel 304, 316L Etc. Layers Of Screen: 1~5 Layers Of Mesh Screens
Mesh Size: Below 400 Mesh Mesh De-blinding: Bounce Balls, Ultrasonic De-blinding System, Rolling Brush, Air Brush Etc.
Surface Treatment: Polishing, Painting, Sandblasting Etc. Application: Aluminum Chips, Sodium Chloride, Basalt Sand, Chocolate Etc.
High Light:

Pharmaceutical Pills Tumbler Screening Machine

,

Medical tumbler screener

,

Pharmaceutical Pills Tumbler Screening Machine

Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills



Introduction of High Precision Medical Grade Tumbler Screening Machines for Pharmaceutical Pills:

High Precision Medical Grade Tumbler Screening Machines for Pharmaceutical Pills is an efficient screening machine designed specially to meet the large output and high precision screening of the manufacturers. The most simple screening is to look at with eyes and screen with hands. The swing screening machine is the mechanical simulation of it, which is the most effective simulation of the effective principle of artificial screening (screening accuracy, efficiency, and the service life of the sieve are 5-10 times of the conventional circular screen), and meets all the fine and ultrafine particulate materials, especially suitable for the material difficult to deal with.

   This kind of sieve machine is also known as the tumbler screen, tumbler screener, tumbling screen machine, tumbler sieve, swing screen etc.



Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills 0Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills 1

               BALANCE IS IMPORTANT !!                              Pneumatic Lifting Device



Technical Parameters of High Precision Medical Grade Tumbler Screening Machines for Pharmaceutical Pills:

Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills 2

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5



Important Information About High Precision Medical Grade Tumbler Screening Machines for Pharmaceutical Pills:

Motion involute spiral motion
Screening Accuracy upto 90%~99.9%
Diameter 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2300mm, 2600mm etc.
Mesh Cleaning Method bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure whole adhesive screen, or splicing segmented screen etc.
Layers of Screen 1~5 layers of screen
Diameter 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
Optional quick clamps, pneumatic lifting devices etc.
Application can be used for material that is flammable, explosive and easy to generate static
Motor Brand Siemens, ABB, BEGEMA etc.
Surface Treatment polishing, sandblast, paint spraying etc.



Working Principle of High Precision Medical Grade Tumbler Screening Machines for Pharmaceutical Pills:

  The tumbler screener machine is an artificial imitation of shaking low frequency vibration sieve. The adjustment of the machine in response to the product to be screened provides an exactly defined three dimensional eccentric motion pattern with radial and tangential inclination.

  The basic rotary motion is similar to manual screening. Eccentricity is adjustable from 25 to 40mm, and low speed v-belt drive is adjustable from 120 to 360rpm. The residence time of each material can be adjusted by swinging the radial and corner cut of the sieve towards the driving axis.

So that build up a horizontal and throw 3D roll motion. Material from the center to the outer edge is evenly dispersed on the whole screen surface, thus propagating axially with spiral movement. This completes the whole screening process of fine particles.

  The horizontal and vertical accelerations increase with the movement of the particles and the particles close to the size of the sieve hole separate successfully. The larger material is transported to the exit, where the flow is controlled by an adjustable guide which is another factor controlling the material residence time. This process is repeated between each screen.



Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills 3Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills 4



Advantages of High Precision Medical Grade Tumbler Screening Machines for Pharmaceutical Pills:

1. Accurately separated six grades, screening efficiency as to 90-95%.
2. Enclosed to prevent dust, increased parts longevity, decrease maintenance.
3. Using silicone rubber ball, ultrasonic and other high efficient cleaning sieve device system, the sieve hole won't be blocked.
4. Level and casting motion.
5. Noise is less than 75 dB.



Application of High Precision Medical Grade Tumbler Screening Machines for Pharmaceutical Pills:

The tumbler sieve machine can be widely used in chemistry, food and spices, plastics, mining industry, pharmacy, wood and plywood, metallurgy, feedstuff, chemical fertilizer, sugar, salt industry, regenration industry.

Medical Grade Tumbler Screening Machine Low Noise For Pharmaceutical Pills 5
