|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Screening Accuracy:||High Upto 90%~99%||Diameter:||600mm~2300mm|
|Mesh De-blinding:||Bounce Balls, Ultrasonic System, Rolling Brush, Air Brush Etc.||Layers Of Screen:||1~5 Screen Decks|
|Surface Treatment:||Sandblasting, Polishing, Painting Etc.||Material:||Carbon Steel, Stainless Steel 304, 316L Etc.|
|Vibrating Motor:||Optional General Motor, Explosion-proof Motor Etc.||Application:||Pesticide, Filter Sludge, Catalyst, Additives, Proppants Etc.|
vibrating sieve separator,
vibratory screen separator

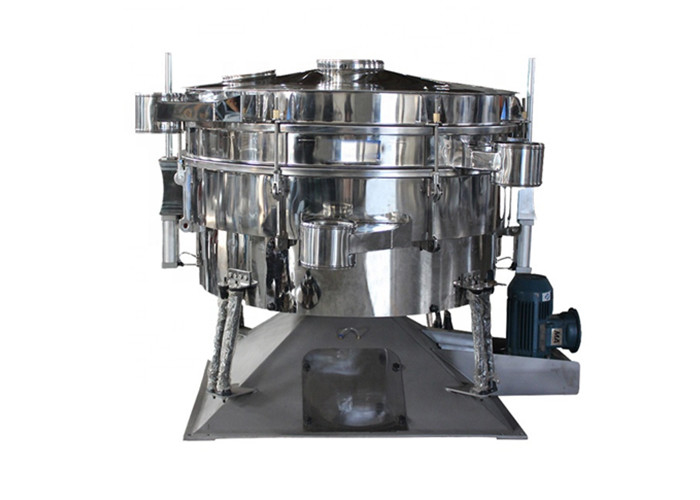

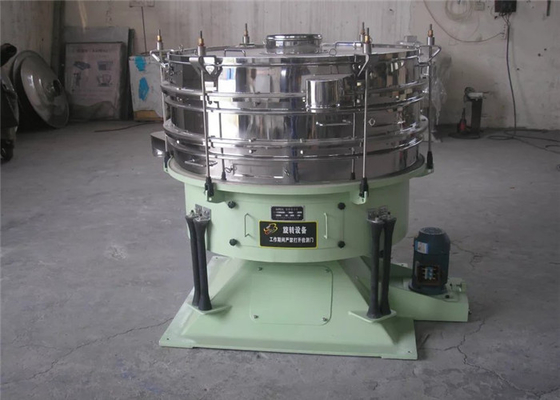

Carbon Steel Vibrating Screen Machine Tumbler Sieve For Blast Furnace Pellets
Introduction of Large Capacity Tumbler Screening Machine for Blast Furnace Pellets:
Large Capacity Tumbler Screening Machine for Blast Furnace Pellets is an efficient screening machine which is designed to meet the high-density and large output sieving of the manufacturers. It uses a operating principle of slow acceleration and a longer residence time on the mesh surface area, the action is extremely gentle on the product being processed and is more suited to handle fragile material.
Advantages of Large Capacity Tumbler Screening Machine for Blast Furnace Pellets:
1. Up to 100% availability in 24h operation with few maintenance requirements
2. Low acceleration, long service life of all parts, no product destruction
3. 100% statically and dynamically balanced for vibration free installation in steel structures
4. Heavy pyramid base to counterbalance the rotating body
5. Extremely high screening efficiency obtainable by means of individually adjustable retention time for any product and capacity
6. 100% dustproof thanks to simple fast-mounting Silicone clip-on gaskets on the intermediate rings, thereby dispensing with the requirement to exchange the formerly used U-shaped gaskets on the screen inserts
7. Delivered operationally ready and adjusted to each product
8. Tough modular design, no dead corners, low part weights
9. Easy dismantling and cleaning of all parts down to the conical base
10. Low noise level of approx. 75 db(A)
11. Automatic centering of screening inserts and strong intermediate rings and covers for simple and fast assembly and screen changing
12. Optional: quick clamps for maximum time saving when changing screens
13. Up to 7 fractions simultaneously on each machine
14. Favorable prices and short delivery times
15. Low construction height by means of reduced intermediate ring heights of 80 mm for best screen results on all decks
Technical Parameters of Large Capacity Tumbler Screening Machine for Blast Furnace Pellets:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Working Principle of Large Capacity Tumbler Screening Machine for Blast Furnace Pellets:
The tumbler screener machine is an artificial imitation of shaking low frequency vibration sieve. The adjustment of the machine in response to the product to be screened provides an exactly defined three dimensional eccentric motion pattern with radial and tangential inclination.
During the operation of the tumbler screening machine the radial inclination causes the product on the screen to move from the center towards the edge of the screen while the tangential inclination leads to a circular motion of the product on the screen. The combined impact of both of these forces causes the product in a helical motion of upon the surface of the screen and therefor to a relatively long retention time. This provides an optimized result on fraction separation while at the same time minimizing the amount of remaining outsize particles.
Application of Large Capacity Tumbler Screening Machine for Blast Furnace Pellets:
1. Abrasive material and ceramic industry: abrasive, refractory material, slurry, building sand, mica, alumina, etc.
2. Chemical industry: resin pigment, grease, paint, medicine, palette, etc.
3. Food industry: starch, milk powder, yeast powder, sugar, salt, alkali, gourmet powder, pollen, food additive, bean milk, juice etc.
4. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
5. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Important Information About Large Capacity Tumbler Screening Machine for Blast Furnace Pellets:
|Motion||involute spiral motion|
|Screening Accuracy||upto 90%~99.9%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
|Motor Brand||Siemens, ABB, BEGEMA etc.|
|Surface Treatment||polishing, sandblast, paint spraying etc.|
Contact Person: Ms. Magie
Movement: three dimensional motion
Alternative Names: rotary vibrating sieve, vibro screen, vibrating sifter, vibrating shifter, round separator, rotary vibrating screen etc.
Customized Design: raised rim inlet design, low-profile design, double screening design, avalanche design, high frequency design etc.
Optional Parts: Discharge Gate, Glass viewing port, Quick Release Clamp, Magnetic Guard etc.
