|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Model:||AY-600, 800, 1000, 1200, 1500, 1600, 1800, 2000 Etc.||Screening Accuracy:||High Upto 90%~99%|
|Layers Of Screen:||1~5 Layers Of Screen||Mesh De-blinding:||Ultrasonic System, Rubber Balls, Air Brush, Rolling Brush Etc.|
|Movement:||Involute Spiral Motion, Imitate The Manual Screening Action||Material:||SUS304, SUS316L Or Carbon Steel Etc.|
|Vibrating Motor:||Optional General Motor, Explosion-proof Motor Etc.||Application:||Pesticide, Filter Sludge, Catalyst, Additives, Proppants Etc.|
SUS316L Tumbler Screening Machine,
Titanium Dioxide tumbler screener,
Titanium Dioxide Tumbler Screening Machine

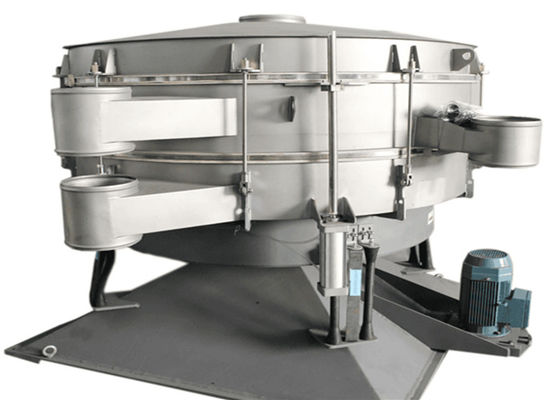

Ultrasonic Tumbler Screening Machine SUS304 SUS316L For Titanium Dioxide
Introduction of Tumbler Screening Machine for Titanium Dioxide with High Screening Accuracy:
Tumbler Screening Machine for Titanium Dioxide with High Screening Accuracy is an efficient screening machine which is designed to meet the high-density and large output sieving of the manufacturers. The simplest sieving is hand sieving by eye. This is mechanically simulated by the tumbler screen, which takes the most effective simulation of the artificial sieving movement (screening accuracy, efficiency, screen service life is 5-10 times than usual sieving machine). Tumbler screen are suitable for all powders and granular materials in the fine and ultra fine range, especially for materials which are difficult to sift.
This kind of sieve machine is made up of dust cover, screen frame, mesh, motor and the base. Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1~5 layers). Material can be divided into all carton steel, contact part stainless steel and all stainless steel.
Technical Parameters of Tumbler Screening Machine for Titanium Dioxide with High Screening Accuracy:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Working Principle of Tumbler Screening Machine for Titanium Dioxide with High Screening Accuracy:
The tumbler screener machine is an artificial imitation of shaking low frequency vibration sieve, working principle is synthesis of transient motion displacement and this displacement in the radial direction of the axis of circular motion (helical motion), can adjust the eccentricity nonlinear three-dimensional motion of the exciter, the material also produces same motion approximation manual jobs, so as to achieve the purpose of screening, combined with sieving attachment can get more ideal screening effect. Suitable for circular, cylindrical, sheet, and even regular shapes easy to block network and require sophisticated screening materials.
Advantages of Tumbler Screening Machine for Titanium Dioxide with High Screening Accuracy:
1. Heavy pyramid base to counterbalance the rotating body
2. Extremely high screening efficiency obtainable by means of individually adjustable retention time for any product and capacity
3. 100% dustproof thanks to simple fast-mounting Silicone clip-on gaskets on the intermediate rings, thereby dispensing with the requirement to exchange the formerly used U-shaped gaskets on the screen inserts
4. Delivered operationally ready and adjusted to each product
5. Tough modular design, no dead corners, low part weights
6. Easy dismantling and cleaning of all parts down to the conical base
7. Low noise level of approx. 75 db(A)
8. Up to 100% availability in 24h operation with few maintenance requirements
9. Automatic centering of screening inserts and strong intermediate rings and covers for simple and fast assembly and screen changing
10. Optional: quick clamps for maximum time saving when changing screens
11. Low acceleration, long service life of all parts, no product destruction
12. Up to 7 fractions simultaneously on each machine
13. Favorable prices and short delivery times
14. 100% statically and dynamically balanced for vibration free installation in steel structures
15. Low construction height by means of reduced intermediate ring heights of 80 mm for best screen results on all decks
Application of Tumbler Screening Machine for Titanium Dioxide with High Screening Accuracy:
1. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
2. Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice etc.
4. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
5. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Important Information About Tumbler Screening Machine for Titanium Dioxide with High Screening Accuracy:
|Motion||involute spiral motion|
|Screening Accuracy||upto 90%~99.9%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
|Motor Brand||Siemens, ABB, BEGEMA etc.|
|Surface Treatment||polishing, sandblast, paint spraying etc.|
