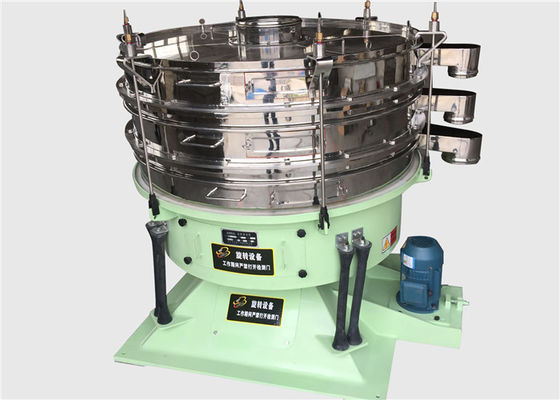

High Precision Swinging Vibration Separation Machines For Colour Powder

High Precision Swinging Vibration Separation Machines For Colour Powder

High Precision Swinging Vibration Separation Machines For Colour Powder
High Precision Swinging Vibration Separation Machines For Colour Powder
High Precision Swinging Vibration Separation Machines For Colour Powder
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Model: AY-600, 800, 1000, 1200, 1500, 1600, 1800, 2000 Etc. Movement: Involute Spiral Motion, Imitate The Manual Screening Action
Screening Accuracy: High Upto 90%~99% Characteristics: No Damage To Material Structure, Not Generate Static Electricity
Damping Spring: Rubber Vibration Isolation Spring Mesh Self-cleaning: Rubber Balls, Ultrasonic System, Rolling Brush, Air Brush Etc.
Motor: Ordinary Motor, Explosion-proof Motor Etc. Application: Catalyst, Additives, Activated Carbon, Proppants, Coke Powder Etc.
Highlight:

Colour Powder Vibration Separation Machines

,

Swinging Vibration Separation Machines

,

Colour Powder sieve separator machine

High Precision Swinging Vibration Separation Machines For Colour Powder



Introduction of High Precision Swinging Tumbler Screening Machines for Colour Powder:

High Accuracy Tumbler Screening Machine for Spherical Mineral Granules Proppants is an efficient sieving machine which is designed to meet the large output, high-density sieving of the manufacturers. The simplest sieving is hand sieving by eye. This is mechanically simulated by the tumbler screen, which takes the most effective simulation of the artificial sieving movement (sieving precision, efficiency, sieve life is 5-10 times than usual sieving machine). Tumbler screen are suitable for all powders and granular materials in the fine and ultra fine range , especially for materials which are difficult to sieve.



Technical Parameters of High Precision Swinging Tumbler Screening Machines for Colour Powder:

High Precision Swinging Vibration Separation Machines For Colour Powder 0

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5



Working Principle of High Precision Swinging Tumbler Screening Machines for Colour Powder:

  The movement of a tumbler screening machine is usually compared with simple hand screening similar to the ”gold washing pan” . Basic rotary motion is similar to hand screening .The eccentricity is adjustable from 25 to 40mm, low speed V belt drive is adjustable from 120 to 360rpm. Each product’ dwell time can be adjusted in an radial and tangential angle, towards the drive axis. Therefore, establishing the horizontal and throwing three dimensional rolling movement, materials are evenly dispersed on the entire sieve surface from the center to the outer edge, and thus spread towards the axis by spiral movement. Small particles are then finished in the whole sieving process.The horizontal and vertical acceleration are increased with the movement of the particles, and then the particles which are close to mesh size will be successfully separated; The larger particles are transported to the exit, the flow can be controlled by a regulated oriented device at the exit, the oriented device is another factor which controls the dwell time of the materials.



High Precision Swinging Vibration Separation Machines For Colour Powder 1High Precision Swinging Vibration Separation Machines For Colour Powder 2





Important Information About High Precision Swinging Tumbler Screening Machines for Colour Powder:

Motion  involute spiral motion
Screening Accuracy  upto 90%~99.9%
Mesh Cleaning Method  bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air   cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure  whole adhesive screen, or splicing segmented screen etc.
Layers of Screen  1~5 layers of screen
Diameter  600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm,   2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages  soft rock screening will not destroy the particles original structure of the   material and not easy to produce static electricity
Optional  quick clamps, pneumatic lifting devices etc.
Application  can be used for material that is flammable, explosive and easy to   generate static
Motor Brand  Siemens, ABB, BEGEMA etc.



High Precision Swinging Vibration Separation Machines For Colour Powder 3High Precision Swinging Vibration Separation Machines For Colour Powder 4

           BALANCE IS IMPORTANT !!                                  Pneumatic Lifting Device



Advantages of High Precision Swinging Tumbler Screening Machines for Colour Powder:

1. Heavy pyramid base to counterbalance the rotating body
2. Tough modular design, no dead corners, low part weights

3. Easy dismantling and cleaning of all parts down to the conical base
4. Low noise level of approx. 75 db(A)

5. Up to 100% availability in 24h operation with few maintenance requirements
6. Automatic centering of screening inserts and strong intermediate rings and covers for simple and fast assembly and screen changing
7. Optional: quick clamps for maximum time saving when changing screens
8. Low acceleration, long service life of all parts, no product destruction

9. Up to 7 fractions simultaneously on each machine
10. Extremely high screening efficiency obtainable by means of individually adjustable retention time for any product and capacity
11. 100% dustproof thanks to simple fast-mounting Silicone clip-on gaskets on the intermediate rings, thereby dispensing with the requirement to exchange the formerly used U-shaped gaskets on the screen inserts
12. Delivered operationally ready and adjusted to each product

13. Low construction height by means of reduced intermediate ring heights of 80 mm for best screen results on all decks
14. Favorable prices and short delivery times
15. 100% statically and dynamically balanced for vibration free installation in steel structures



Application of High Precision Swinging Tumbler Screening Machines for Colour Powder:

1. Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.



High Precision Swinging Vibration Separation Machines For Colour Powder 5High Precision Swinging Vibration Separation Machines For Colour Powder 6
