|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Diameter:||600, 800, 1000, 1200, 1500, 1800, 2000, 2300mm Etc.||Movement:||Involute Spiral Tumbling Motion|
|Screening Accuracy:||>90%||Mesh Cleaning Method:||Ultrasonic System, Balls, Rolling Brush, Air Brush Etc.|
|Layers Of Screen:||1~5 Layers Of Screen||Motor:||Ordinary Motor, Explosion-proof Motor Optional|
|Power:||0.25KW~5.5KW||Optional Device:||Pneumatic Lifting Devices, Quick Clamps Etc.|
vibrating sieve separator,
vibratory screen separator

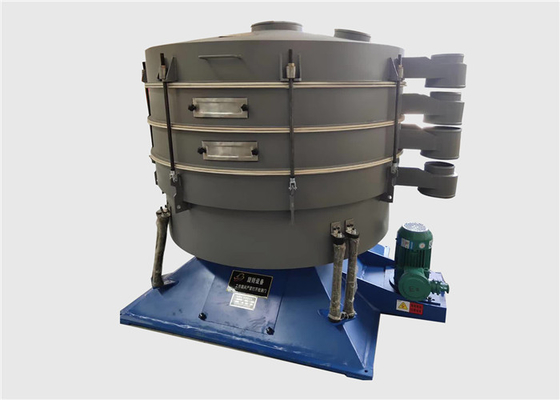

High Accuracy Vibrating Screen Machine Spiral Tumbler Vibration Screen
Introduction of High Accuracy Tumbler Vibration Screen for Vital Wheat Gluten Powder:
High Accuracy Tumbler Vibration Screen for Vital Wheat Gluten Powder is an efficient sieving equipment which is designed to meet the large out put, high-density sieving of the manufacturers. It is the most effective simulation of artificial sieving movement (sieving precision, efficiency, service life is 5-10 times than the common cylinder sieve), for the processing of all the fine and ultra-fine powder and specialmaterials, particularly suitable for materials which are difficult to classify.
Application of High Accuracy Tumbler Vibration Screen for Vital Wheat Gluten Powder:
The Tumbler sieve machine is particularly used to classify small materiels and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving.Widely used in various industries.
1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powde.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
4. Medicinal industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
Working Principle of High Accuracy Tumbler Vibration Screen for Vital Wheat Gluten Powder:
The material is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer particles fall through the screen near the centre and the coarser ones successively towards the periphery. The material is moved in a spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened. All the separated fractions are discharged through the lateral outlets. The screening process is repeated again and again on each layer of screen.
Features of High Accuracy Tumbler Vibration Screen for Vital Wheat Gluten Powder:
Important Information About High Accuracy Tumbler Vibration Screen for Vital Wheat Gluten Powder:
|Motion||involute spiral motion|
|Screening Accuracy||upto 90%~99.9%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
|Motor Brand||Siemens, ABB, BEGEMA etc.|
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Technical Parameters of High Accuracy Tumbler Vibration Screen for Vital Wheat Gluten Powder:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
