|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Model:||AM-600, 800, 1000, 1200, 1500, 1800, 2000 Etc.||Movement:||Imitate The Manual Screening Action, Involute Spiral Tumbling Motion|
|Screening Accuracy:||>90%||Layers Of Screen:||1~5 Layers Of Screen|
|Screen Structure:||Whole Adhesive Screen, Or Splicing Segmented Screen Etc.||Mesh Cleaning Method:||Ultrasonic System, Balls, Rolling Brush, Air Brush Etc.|
|Optional Device:||Pneumatic Lifting Devices, Quick Clamps Etc.||Application:||Plastic Powder, Glass Beads, Xylitol, Citric Acid, Food Additives, Calcium Carbonate Etc.|
vibrating sieve screen,
vibratory screen separator

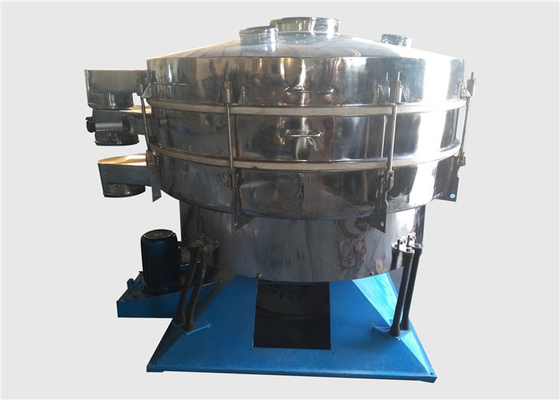

Tapioca Cassava Starch Vibratory Screen Separator Tumbling Screen Machine
Introduction of Large Capacity Tumbling Screen Machine for Tapioca Cassava Starch:
Large Capacity Tumbling Screen Machine for Tapioca Cassava Starch can be also called tumbler screening machine, tumbler sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc.
Unlike the typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This movement prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.
It uses a operating principle of slow acceleration and a longer residence time on the mesh surface area, the action is extremely gentle on the product being processed and is more suited to handle fragile material.
Features of Large Capacity Tumbling Screen Machine for Tapioca Cassava Starch:
Working Principle of Large Capacity Tumbling Screen Machine for Tapioca Cassava Starch:
The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.
According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.
Important Information About Large Capacity Tumbling Screen Machine for Tapioca Cassava Starch:
|Motion||involute spiral motion|
|Screening Accuracy||upto 90%~99.9%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
|Motor Brand||Siemens, ABB, BEGEMA etc.|
Technical Parameters of Large Capacity Tumbling Screen Machine for Tapioca Cassava Starch:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Application of Large Capacity Tumbling Screen Machine for Tapioca Cassava Starch:
The Tumbler sieve machine is particularly used to classify small materiels and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving.Widely used in various industries.
1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powde.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
4. Medicinal industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
