| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Moving Trajectory: | Rotary Centrifugal Motion | Alternative Names: | Trommel Screen, Rotary Screen, Rotary Sifter, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc. |
|---|---|---|---|
| Mesh De-blinding: | Self-cleaning, No Need To Use Balls | Angle Of Inclination: | 5°~7° |
| Motor: | Siemens Or Other Brands | Material: | Carbon Steel, Stainless Steel 304, 316L Etc. |
| After-sales Service: | Online And Video Technical Support, Overseas Service | Application: | Gold Washing, Sand Screening Etc. |
| High Light: | rotary sifter machine,rotary trommel screen |
||

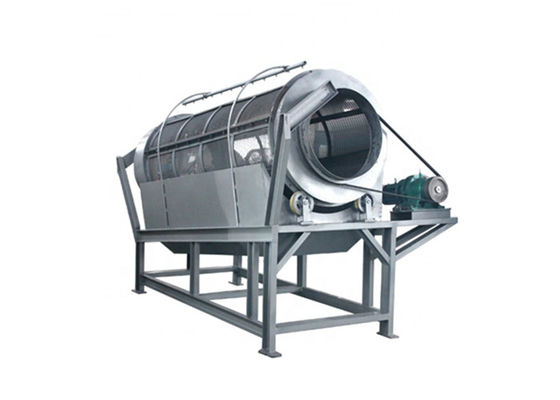

Placer Gold Rotary Sifter Screens Durable Stainless Steel Trommel Sieve
Introduction of Durable Placer Gold Rotary Trommel Screen Machine with High Capacity:
Durable Placer Gold Rotary Trommel Screen Machine with High Capacity has been more and more popular and widely applied in the placer/alluvial gold washing process, especially the river sand gold process. In addition, it is also very popular & effective in sand washing and screening as well as top soil screening. Our Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
Some Important Information About Durable Placer Gold Rotary Trommel Screen Machine with High Capacity:
| Other Names | rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc. |
| Movement | rotary centrifugal movement |
| Power Source | general motor and reducer |
| Type | with shaft, shaftless |
| Angle of Inclination | 5°~7° |
| Material | carbon steel, stainless steel 304, 316L |
| Advantages | overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials |
| Features | have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened |
| Application | sand, gold, quicklime, refractory materials, coal, wood chips etc. |
Advantages of Durable Placer Gold Rotary Trommel Screen Machine with High Capacity:
1. Its own energy consumption is small, long service life, small maintenance.
2. High screening efficiency equipment can be equipped with comb type cleaning mechanism.
3. The screen feeding method is simple and diverse.
4. Wide adaptability of materials.
5. Equipment noise is low, working environment is good.
6. The screen component is large, easy to enlarge.
Technical Parameters of Durable Placer Gold Rotary Trommel Screen Machine with High Capacity:
| Model |
Capacity (t/h) |
Screen Drum Diameter (mm) |
Length (m) |
Motor Power (KW) |
| GTS600 | 5-10 | 600 | 1000 | 1.5 |
| GTS800 | 8-15 | 800 | 1200 | 2.2 |
| GTS1000 | 15-30 | 1000 | 1500 | 3 |
| GTS1200 | 20-50 | 1200 | 1800 | 5.5 |
| GTS1500 | 40-80 | 1500 | 2000 | 7.5 |
| GTS1800 | 80-150 | 1800 | 2000 | 11 |
| GTS2000 | 130-200 | 2000 | 2500 | 11 |
Working Principle of Durable Placer Gold Rotary Trommel Screen Machine with High Capacity:
Material feeds into the drum, is lifted up by the rotation as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance. Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc. After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.
Material Running State in the Rotary Screen
Structural Composition of Durable Placer Gold Rotary Trommel Screen Machine with High Capacity:
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
Application of Durable Placer Gold Rotary Trommel Screen Machine with High Capacity:
1. Food industry: sugar powder, monosodium, starch, salt, milk powder, egg powder, rice powder, bread crumbs, soy milk, sauce, juice, food additive, etc.
2. Metal , metallurgy industry: copper powder, nickel powder, aluminum powder, ceruse, ore alloy powder, welding powder, battery material, abrasive powder, fire proof material, alumina.
3. Chemical industry: fertilizer, detergent powder , talcum powder, talcum powder, dyestuff, rubber, resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine powder.
4. Other industry: paper-making industry , ceramic industry, mining industry, pharmaceuticals industry etc.
