| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Other Names: | Rotary Screen, Rotary Sifter, Trommel Screen, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc. | Movement: | Rotary Centrifugal Motion |
|---|---|---|---|
| Advantage: | Overcome The Mesh Plugging Problem Caused By Traditional Vibrating Screen During Sieving Wet Materials | Angle Of Inclination: | 5°~7° |
| Mesh Size: | 2~200 Mesh | Mesh De-blinding: | Self-cleaning, No Need To Use Balls |
| Segment: | 1~4 Segment | Material: | Carbon Steel, Stainless Steel 304, 316L Etc. |
| High Light: | rotary sifter machine,rotary trommel screen |
||

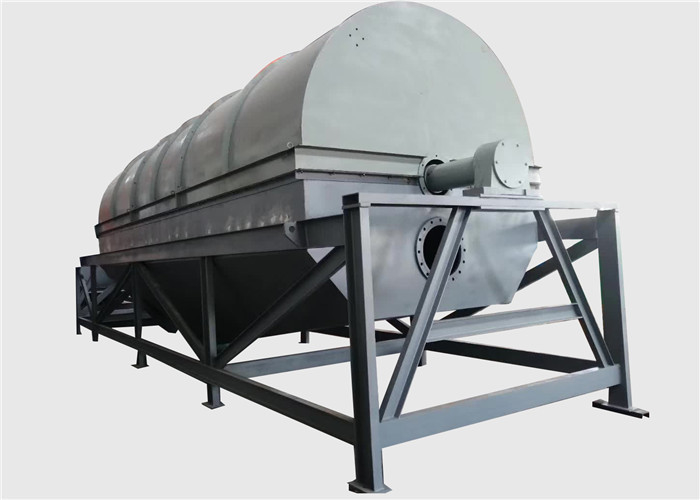

Large Capacity Rotary Trommel Revolving Screen For Sand And Gravel Sieving
Introduction of Large Capacity Rotary Trommel Revolving Screen for Sand and Gravel Sieving:
Large Capacity Rotary Trommel Revolving Screen for Sand and Gravel Sieving is also well known as the trommel screen, rotary screen, cylinder round sifter etc. It provides a simple, efficient and economical solution to upgrade a wide range of material and optimizes the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost to increase product quality, while allowing rapid and large volume processing.
Technical Parameters of Large Capacity Rotary Trommel Revolving Screen for Sand and Gravel Sieving:
| Model |
Capacity (t/h) |
Screen Drum Diameter (mm) |
Length (m) |
Motor Power (KW) |
| GTS600 | 5-10 | 600 | 1000 | 1.5 |
| GTS800 | 8-15 | 800 | 1200 | 2.2 |
| GTS1000 | 15-30 | 1000 | 1500 | 3 |
| GTS1200 | 20-50 | 1200 | 1800 | 5.5 |
| GTS1500 | 40-80 | 1500 | 2000 | 7.5 |
| GTS1800 | 80-150 | 1800 | 2000 | 11 |
| GTS2000 | 130-200 | 2000 | 2500 | 11 |
Some Important Information About Large Capacity Rotary Trommel Revolving Screen for Sand and Gravel Sieving:
| Other Names | rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc. |
| Movement | rotary centrifugal movement |
| Power Source | general motor and reducer |
| Type | with shaft, shaftless |
| Angle of Inclination | 5°~7° |
| Material | carbon steel, stainless steel 304, 316L |
| Advantages | overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials |
| Features | have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened |
Working Principle of Large Capacity Rotary Trommel Revolving Screen for Sand and Gravel Sieving:
When materials flow towards along the inclined rotating drum, materials jump and roll, the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Material Running State in the Rotary Screen
Structure of Large Capacity Rotary Trommel Revolving Screen for Sand and Gravel Sieving:
The trommel screeners consist of a perforated cylindrical drum that is normally elevated at an angle at the feed end, motor, reduction unit, screen frame and sealing cover.
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
Advantages of Large Capacity Rotary Trommel Revolving Screen for Sand and Gravel Sieving:
1. Install the automatic cleaning brush on the top of trommel screen to avoid the blockage.
2. The Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency for long life.
3. It is fully enclosed by sealing structure, no dust pollution, more suit for high standard working conditions.
4. It is durable and low maintenance cost, with 18 months warranty, 0 purchasing risk.
5. It is designed by your requirements, meet different handling capacity and working site.
6. Variable application range-Compost, chemical, coal, plastic, recycling, metallurgy, mineral-selecting etc.
Application of Large Capacity Rotary Trommel Revolving Screen for Sand and Gravel Sieving:
1. Abrasive material and ceramic industry: silica sand, abrasive, building sand, mica, alumina, refractory materialetc.
2. Metallurgy and mining industry: sand, ore, titanium oxide, quartz sand, zinc oxide, etc.
3. Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
4. Quarry: suitable for screening and classifying gravel, mountain meal, clay, sand, etc.
5. Mechanical industry: casting sand, powder metallurgy, charcoal, grafito, electromagnetic material and metal powder, etc.
