|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts|
|Delivery Time:||30~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Other Names:||Trommel Screen, Rotary Screen, Rotary Sifter, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc.||Movement:||Rotary Motion|
|Function:||Overcome The Mesh Plugging Problem Caused By Traditional Vibrating Screen During Sieving Wet Materials||Angle Of Inclination:||5°~7°|
|Capacity:||100 Kg~10 Ton/hour||Segment:||1~4 Segment|
|Material:||Carbon Steel, Stainless Steel 304, 316L Etc.||Surface Treatment:||Paint, Polish, Sandblast Etc.|
air classifier machine,
rotary trommel screen

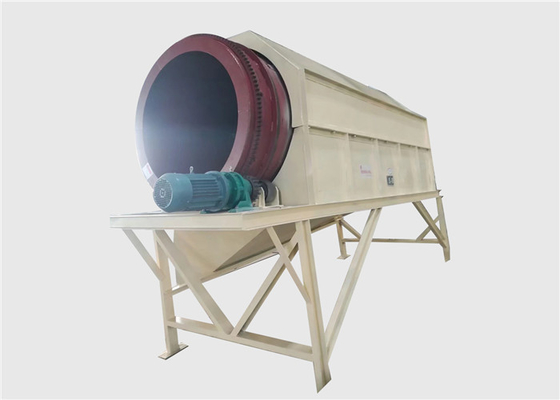

High Efficiency Rotary Sifter Screens Sand Gravel Stone Rotary Trommel Screen
Introduction of High Efficiency Rotary Trommel Screeners for Sand Gravel Stone Separation:
The main body of High Efficiency Rotary Trommel Screeners for Sand Gravel Stone Separation is screening trommel which is composed of several circular screen clothes, and is in a tilt state with ground on the whole, the screening drum rotates under certain rotation speed through deceleration system, the materials are screened from top to down through screening drum, fine materials are discharged from bottom of screening drum front, and coarse materials are discharged from tail of screening drum bottom.
Working Principle of High Efficiency Rotary Trommel Screeners for Sand Gravel Stone Separation:
When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer of trommel screen, substandard materials come out by the end of trommel screen.
Material Running State in the Rotary Screen
Some Important Information About High Efficiency Rotary Trommel Screeners for Sand Gravel Stone Separation:
|Other Names||rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc.|
|Movement||rotary centrifugal movement|
|Power Source||general motor and reducer|
|Type||with shaft, shaftless|
|Angle of Inclination||5°~7°|
|Material||carbon steel, stainless steel 304, 316L|
|Advantages||overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials|
|Features||have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened|
Advantages of High Efficiency Rotary Trommel Screeners for Sand Gravel Stone Separation:
1. It is fully enclosed by sealing structure, no dust pollution, more suit for high standard working conditions.
2. It is durable and low maintenance cost, with 18 months warranty, 0 purchasing risk.
3. It is designed by your requirements, meet different handling capacity and working site.
4. Install the automatic cleaning brush on the top of trommel screen to avoid the blockage.
5. The Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency for long life.
6. Variable application range-Compost, chemical, coal, plastic, recycling, metallurgy, mineral-selecting etc.
Structure of High Efficiency Rotary Trommel Screeners for Sand Gravel Stone Separation:
Trommel drum screen is mainly consists of motor, reducer, drum units, sealing cover, support, etc.
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
Technical Parameters of High Efficiency Rotary Trommel Screeners for Sand Gravel Stone Separation:
|Screen Drum Diameter (mm)||
|Motor Power (KW)|
Application of High Efficiency Rotary Trommel Screeners for Sand Gravel Stone Separation:
1. Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
2. Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3. Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materialetc.
4. Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc.
5. Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
