|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Screening Accuracy:||>90%||Movement:||Involute Spiral Motion, Imitate The Manual Screening Action|
|Mesh Size:||Above 400 Mesh||Diameter:||800mm, 1000mm, 1200mm, 1500mm, 2000mm Etc.|
|Layers Of Screen:||1~5 Layers||Mesh De-blinding:||Balls, Ultrasonic System, Rolling Brush, Air Brush Etc.|
|Application:||Xylitol, Citric Acid, Plastic Powder, Glass Beads, Food Additives, Calcium Carbonate Etc.||Optional Parts:||Pneumatic Lifting Devices, Quick Clamps Etc.|
vibrating sieve separator,
vibratory screen separator

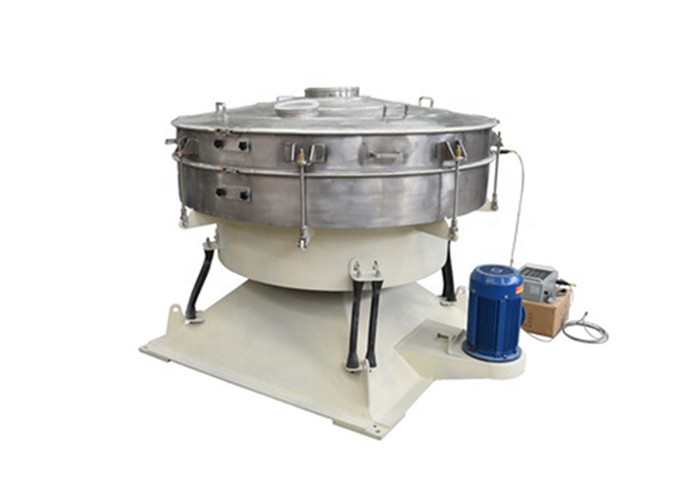

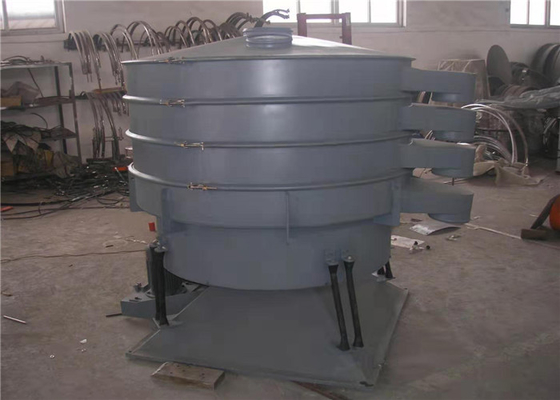

Large Capacity Vibrating Screen Machine Cacined Petroleum Coke Tumbler Sifter
Overview of Cacined Petroleum Coke Tumbler Screening Machine with Large Capacity:
Cacined Petroleum Coke Tumbler Screening Machine with Large Capacity is an improvement on vibration, vibratory, and linear screening. Tumbler screener uses elliptical action which aids in screening of even very fine material. As like panning for gold, the fine particles tend to stay towards the center and the larger go to the outside. It allows for segregation and unloads the screen surface so that it can effectively do its job. With the addition of multiple decks, ball cleaning decks and ultrasonic vibration systems even difficult products can be sieved at high capacity to very fine separations.
The tumbler screening technique are widely used in chemistry, pharmaceutical, food processing, mining, plastics, stone and soil, metallurgy, recycling industries in order to sort small, heavy, light, dry, dusty, wet and sticky materials which are less than a millimeter.
Important Information About Cacined Petroleum Coke Tumbler Screening Machine with Large Capacity You Won't Miss:
|Motion||involute spiral motion|
|Screening Accuracy||upto 90%~99.9%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
Effective screen cleaning or mesh de-blinding system guarantees uninterrupted operations:
1. Bouncing ball cleaning
2. Ultrasound cleaning
3. Brush cleaning
4. Air jet cleaning
5. Air jet and brush cleaning
6. Sieve attachment
Working Principle of Cacined Petroleum Coke Tumbler Screening Machine with Large Capacity:
The product transfers the substance into the center of the top screen, from where it spreads out evenly and incessantly external across the whole screening surface. The finer specks fall via the screen near the middle, while the coarser particles travel gradually towards the external side of the screen. The material is progressed in a spiral form with fast acceleration of the particles the advance away they are from the middle. The outcome is constant and consistent equal size particles are screened. This system is generally applied in varied industries like chemical, pharmaceutical, food and snacks, mining industries so as to carry screening small, heavy, light, dry, dusty, wet as well as sticky substances which are smaller than a millimeter.
Features of Cacined Petroleum Coke Tumbler Screening Machine with Large Capacity:
Technical Parameters of Cacined Petroleum Coke Tumbler Screening Machine with Large Capacity:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
BALANCE IS VERY IMPORTANT !! Pneumatic Lifting Device
Application of Cacined Petroleum Coke Tumbler Screening Machine with Large Capacity:
1. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice etc.
2. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide etc.
3. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry etc.
4. Chemical industry: resin pigment, medicine, grease, paint, palette etc.
5. Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder etc.
