|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Motion:||Imitate The Manual Screening Action, Involute Spiral Motion||Screening Accuracy:||More Than 90%|
|Mesh Size:||Above 400 Mesh||Layers Of Screen:||1~5 Layers|
|Mesh Cleaning Method:||Ultrasonic System, Balls, Rolling Brush, Air Brush Etc.||Diameter:||1000mm, 1200mm, 1500mm, 2000mm Etc.|
|Application:||Plastic Powder, Glass Beads, Food Additives, Calcium Carbonate, Xylitol, Citric Acid Etc.||Optional Device:||Pneumatic Lifting Devices, Quick Clamps Etc.|
vibrating sieve screen,
vibratory screen separator
Pvc Plastic Powdervibrating Sieve Separator High Accuracy Tumbler Screener

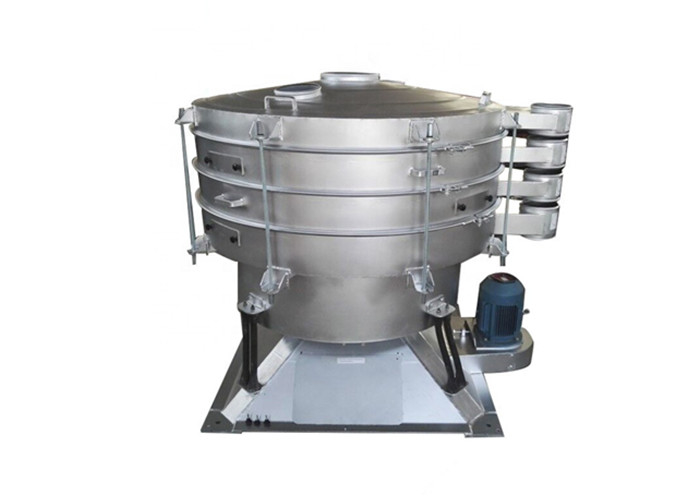

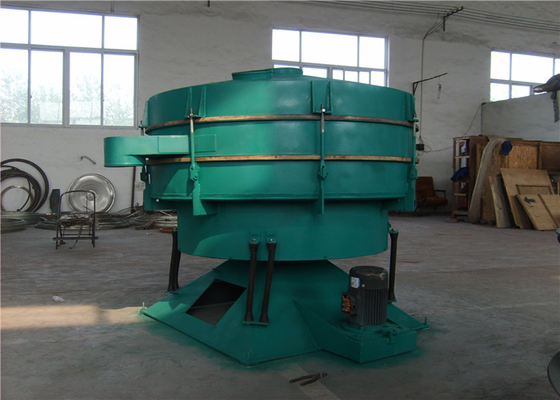

Overview of PVC Plastic Powder Tumbler Screening Machine with High Screening Accuracy:
PVC Plastic Powder Tumbler Screening Machine with High Screening Accuracy is a high powered sieving machine used by manufacturers from different industries to produce large outputs of light powder particles with high capacity by continuous low-density sieving.
Particularly when screening fine particles the mesh can often become clogged by grains and dust or electrostatically charged. This can reduce performance and screening quality, sometimes considerably. In order to ensure uninterrupted operations the screen therefore needs to be cleaned in an appropriate way for the product. Due to their circular construction and three-way motion, tumbler screening machines are particularly suitable for rapid and easy fitting with the various screen cleaning systems.
Working Principle of PVC Plastic Powder Tumbler Screening Machine with High Screening Accuracy:
The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.
According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.
1. Basic rotary motion is similar to manual screening. Eccentricity is adjustable from 25 to 40mm, and low-speed v-type belt drive is adjustable from 120 to 360rpm.
2. The residence time of each product can be adjusted in the direction of the driving axis by the radial and tangential angles of the swing screen.
3. Hence, it establishes horizontal and projectile 3D tumbling motion. Materials are evenly dispersed from the center to the outer edge on the entire screen surface. So, fine particles are completely finished the whole screening process.
4. This process is repeated between each screen layer.
Important Information About PVC Plastic Powder Tumbler Screening Machine with High Screening Accuracy You Won't Miss:
|Motion||involute spiral motion|
|Screening Accuracy||upto 90%~99.9%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
Effective screen cleaning or mesh de-blinding system guarantees uninterrupted operations:
1. Bouncing ball cleaning
2. Ultrasound cleaning
3. Brush cleaning
4. Air jet cleaning
5. Air jet and brush cleaning
6. Sieve attachment
Features of PVC Plastic Powder Tumbler Screening Machine with High Screening Accuracy:
Technical Parameters of PVC Plastic Powder Tumbler Screening Machine with High Screening Accuracy:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
Application of PVC Plastic Powder Tumbler Screening Machine with High Screening Accuracy:
1. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry etc.
2. Chemical industry: resin pigment, medicine, grease, paint, palette etc.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice etc.
4. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide etc.
5. Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder etc.
BALANCE IS VERY IMPORTANT !! Pneumatic Lifting Device
