|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Screening Accuracy:||High Up To 90% ~ 99.9%||Diameter:||600mm~2300mm (can Be Customized)|
|Movement:||Imitate The Manual Screening Action, Involute Spiral Tumbling Motion||Motor Brand:||ABB, Siemens, BEGEMA Etc.|
|Layers Of Screen:||1~5 Layers Of Screen||Mesh Cleaning Method:||Ultrasonic System, Balls, Rolling Brush, Air Brush Etc.|
|Screen Structure:||Whole Adhesive Screen, Or Splicing Segmented Screen Etc.||Mesh Size:||>0.038mm|
|Application:||Plastic Powder, Glass Beads, Xylitol, Citric Acid, Food Additives, Calcium Carbonate Etc.||Optional:||Pneumatic Lifting Devices, Quick Clamps Etc.|
vibrating sieve screen,
vibratory screen separator

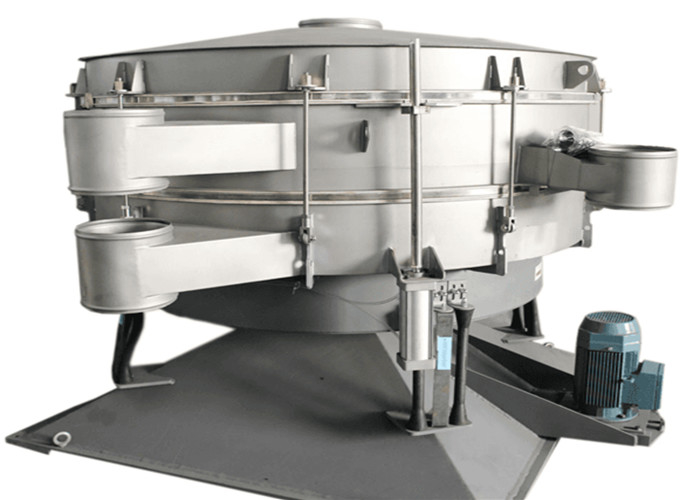

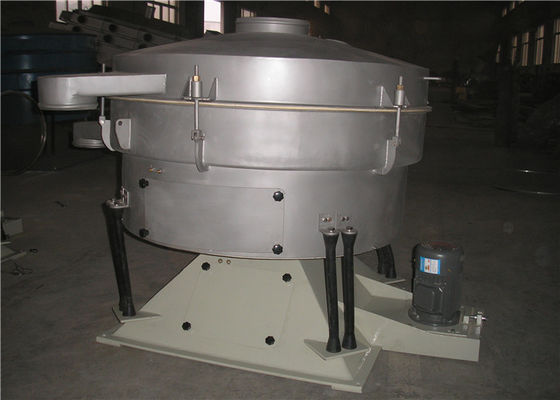

Stainless Steel Vibro Screen Separator Pom Melamine Resin Vibrating Sieve Screen
Overview of Stainless Steel POM Melamine Resin Tumbler Screening Machine with High Accuracy:
Stainless Steel POM Melamine Resin Tumbler Screening Machine with High Accuracy is also well known as the tumbler screening machine, tumbler sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc.
Tumbling screener machine is used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes. Our AM model tumbler screen machine features a range of customization options designed to meet extremely demanding requirements, as well as a broad variety of additional equipment options. Among these, the number of available screen cleaning systems is particularly worth mentioning, with balls, brushes, ultrasonic, and various combinations being of these options are available to prevent blinding and maintain efficient screening.
Unlike the typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.
Working Principle of Stainless Steel POM Melamine Resin Tumbler Screening Machine with High Accuracy:
The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.
According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.
Important Information About Stainless Steel POM Melamine Resin Tumbler Screening Machine with High Accuracy You Won't Miss:
|Motion||involute spiral motion|
|Screening Accuracy||upto 90%~99.9%|
|Mesh Cleaning Method||bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning|
|Screen Structure||whole adhesive screen, or splicing segmented screen etc.|
|Layers of Screen||1~5 layers of screen|
|Diameter||600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.|
|Advantages||soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity|
|Optional||quick clamps, pneumatic lifting devices etc.|
|Application||can be used for material that is flammable, explosive and easy to generate static|
|Motor Brand||Siemens, ABB, BEGEMA etc.|
Features of Stainless Steel POM Melamine Resin Tumbler Screening Machine with High Accuracy:
Application of Stainless Steel POM Melamine Resin Tumbler Screening Machine with High Accuracy:
1. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
2. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
3. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.
4. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
5. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
7. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.
Technical Parameters of Stainless Steel POM Melamine Resin Tumbler Screening Machine with High Accuracy:
|Model||Screen Area (m²)||Layers of Screen||Motor Power (KW)|
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
