| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AT200tap |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case for export (fumigation-free) |
| Delivery Time: | 1~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
| Type: | Tapping Type Test Sieve Shaker | Voltage: | Single Phase, 220V, 50HZ/60HZ Etc. |
|---|---|---|---|
| Digital Display: | Yes | Time Adjustment: | 0~99 Minutes |
| Sieve Number: | 1~8 Pcs Of Test Sieves | Sieve Cover: | Included |
| Bottom Tray: | Included | Sound-proof Device: | Optional |
| High Light: | laboratory sieve shaker machine,sieve testing equipment |
||

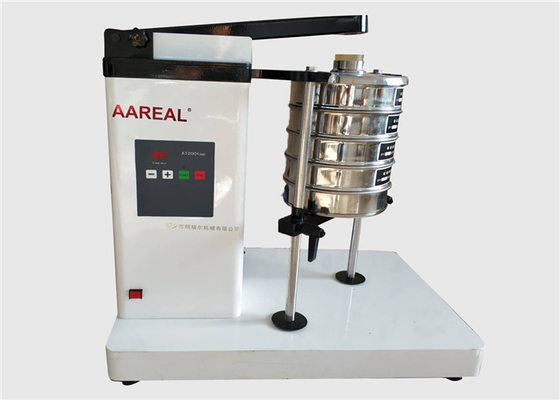

AT200tap Tap Test Sieve Shaker For Petroleum Coke Particle Size Analysis
Overview of AT200tap Tap Test Sieve Shaker for Petroleum Coke Particle Size Analysis:
Our AT200tap tap test sieve shaker has a unique two-dimensional operation: a horizontal, circular motion and a vertical, tapping motion. This special action allows material particles to stratify and “seek” critical openings in the test media. This unit provides the most accurate and consistent particle analysis testing.
Comparable to similar international products, working parameters meet the national standards. With the use of test sieves and sample screens, it can be used for screening production and inspection of powder materials in metallurgy, chemical industry, abrasive, superhard material, feed, food, medicine and other industries.
AT200tap tap test sieve shaker is also known as the tap vibration test sieve, tap vibration test screen, standard tap sieve shaker, standard tapping vibration test screen, standard slap vibration test sieve, ro-tap sieve shaker, ro-tap test sieve shaker, ro-tap sieve, rotap sieve shaker, rotap test sieve shaker, rotap sieve, ro-tap motorized sieve shaker, rotap motorized sieve shaker, rotap screen machine, ro-tap screen machine, ro-tap testing sieve shaker, rotap testing sieve shaker, slap vibrating screen, panting sieve machine, sand sieving machine, sand sieving machine, flapping vibration test screen machine, beating vibration test sieve, classifier, jigging sieve, sieve shaker, sieving machine, shaking sieve, screen shaker etc.
Features of AT200tap Tap Test Sieve Shaker for Petroleum Coke Particle Size Analysis:
1. Good reproducibility of test results.
2. Can be equipped with Ø200 or Ø205 sieves from 1 to 8 layers.
3. Complete synchronous transmission power, quick and simple maintenance.
4. Sound-proof device can be added to avoid noise.
Working Principle of AT200tap Tap Test Sieve Shaker for Petroleum Coke Particle Size Analysis:
The motor drives the gear speed change through the synchronous belt, making the main shaft rotate. And then the main shaft drives the eccentric wheel to make the slide plate drive the test sieve shake left and right. At the same time, it drives the top gear rotate, strike the hammer and slap the test sieve, making materials in the test sieve and sample sieve screen layer by layer. So people can accurately obtain the materials of multiple particle size ranges at the same time, achieving accurate and rapid screening purposes.
Some Important Things You May Care About AT200tap Tap Test Sieve Shaker for Petroleum Coke Particle Size Analysis:
| Key Product | yes, it is designed and made by ourselves only in China for the moment |
| Other Name | tap test sieve shaker, rotap sieve shaker etc. |
| Sieve Number | 1~8 sieves |
| Sound-proof Device | optional, made by ourselves, L*W*H 850mm*670mm*900mm |
| Digital Display | yes |
| Time Adjustment | 0~99 minutes |
| Material | carbon steel |
| Sieve Cover | included |
| Bottom Tray | included |
| L*W*H | 700mm*445mm*650mm |
| Weight | 80KG |
Technical Parameters of AT200tap Tap Test Sieve Shaker for Petroleum Coke Particle Size Analysis:
| NO. | Name | Value | Unit |
| 1 | Diameter | 300, 200, 150, 100, 75 | mm |
| 2 | Layer | 5~7 | Layer |
| 3 | Shaking Times | 290±10 | times/min |
| 4 | Tapping Times | 156±10 | times/min |
| 5 | Reciprocating Trip | 25 | mm |
| 6 | Tapping Height | 38±6 | mm |
| 7 | Power | 370 | W |
| 8 | Voltage | 380, 220 | V |
| 9 | Dimensions | H700*L460*W420 | mm |
| 10 | Weight | 100 | KG |
Application of AT200tap Tap Test Sieve Shaker for Petroleum Coke Particle Size Analysis:
Our AT200tap tapping type test sieve shaker can be mainly used in diamond and other materials of high value, requiring accurate screening of the abrasive industry. It is widely used in metallurgy, powder, chemical, pharmaceutical, building materials, geology, feed, defense and other departments of scientific research and production, laboratory, and quality inspection room, for particle and powdery materials granular structure and sundries amount of standard screening, filtering and inspection sieve test. The device is equipped with timing device to ensure the accuracy and repeatability of the user test results.
