Round Vibrating Screen Machine Vital Wheat Gluten Vibratory Screen Separator

Product Details:

Place of Origin:	China
Brand Name:	AAREAL
Certification:	ISO9001:2015
Model Number:	AM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Fumigation-free plywood wooden case for export
Delivery Time:	20~35 work days after order confirmed
Payment Terms:	T/T, L/C
Supply Ability:	5 sets per month

Contact Now

Detailed Product Description

Screening Accuracy:	High Up To 90% ~ 99.9%	Movement:	Imitate The Manual Screening Action, Involute Spiral Tumbling Motion
Motor Brand:	BEGEMA, Siemens, ABB Etc.	Mesh Cleaning Method:	Bounce Balls
Material:	Stainless Steel, Carbon Steel Etc.	Layers Of Screen:	1~5 Decks
Optional:	Quick Clamps, Pneumatic Lifting Devices Etc.	Application:	Calcium Carbonate, Dolomite, Starch, Plastic Powder Etc.
High Light:	vibrating sieve screen , vibratory screen separator

Round Vibrating Screen Machine Vital Wheat Gluten Vibratory Screen Separator

Overview of Large Capacity Vital Wheat Gluten Tumbler Screener Machine with High Precision:

TheLarge Capacity Vital Wheat Gluten Tumbler Screener Machine with High Precision is a low-frequency vibro sieving machine that is artificially oscillating for fine and ultra-fine screening. Round, cylindrical, flake, or even irregularly shaped materials can be sifted with up to 7 grades of ultra-fine sieving.
Our company is involved in the production of supreme quality Tumbler Screen Manufacturer that is applied for definite regulation of screening, separation as well as de-dusting of bulk solids. This product is predominantly appropriate for high feed rates as well as multi-deck separations of fine, lightweight as well as hard to screen products.

Characteristics of Large Capacity Vital Wheat Gluten Tumbler Screener Machine with High Precision:

1. A very high sieving efficiency of 90% -95%.

2. Has lower acceleration speed compared to other vibrating screens.
3. Produces less noise compared to other brands.
4. Has a sturdy internal and external screen frame.
5. Can remain balanced even with the heavy sieving workload.
6. Can have up to 6 outlets with 5 layers of screens.
7. Sieve aperture will not be blocked.
8. Can have up to six levels of separation.
9. Has a bag of enclosed cleaning dust.
10. Can be safely used with minimal supervision.
11. Connected to an ultrasonic mesh cleaning device.
12. Easy to clean and maintain.
13. Dust and gas tight.
14. Made with high-standard steel to withstand heavy-duty sieving production.
15. Will not destroy sensitive product particles.
16. Can divide powder particles according to size.
17. Can separate material particles from foreign materials mixed within it.
18. Can perform the solid-liquid separation.

Working Principle of Large Capacity Vital Wheat Gluten Tumbler Screener Machine with High Precision:

The instantaneous motion of tumbler screener is the combination of the radial displacement and the circular motion with the displacement along the axis (spiral motion). The exciter that can adjust the eccentricity produces a nonlinear three-dimensional motion, and the material also produces the same approximate manual movement to achieve the purpose of screening, and the screening accessory can be used to obtain one more ideal sieving effect.

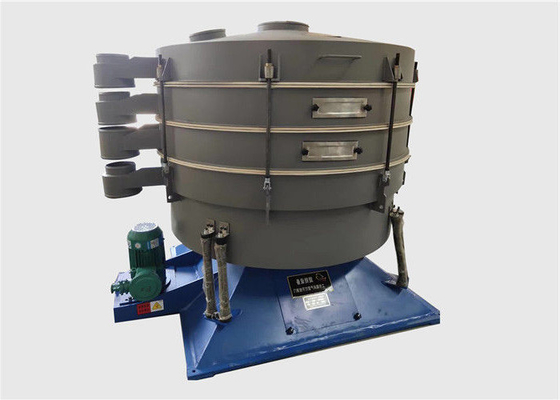

Round Vibrating Screen Machine Vital Wheat Gluten Vibratory Screen Separator 0

Important Information About Large Capacity Vital Wheat Gluten Tumbler Screener Machine with High Precision You Won't Miss:

Motion	involute spiral tumbling motion
Screening Accuracy	upto 90%~99.9%
Mesh Cleaning Method	bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure	whole adhesive screen, or splicing segmented screen etc.
Layers of Screen	1~5 layers of screen with 6 outlets
Diameter	600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages	soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
Optional	quick clamps, pneumatic lifting devices etc.
Application	can be used for material that is flammable, explosive and easy to generate static
Motor Brand	Siemens, ABB, BEGEMA etc.

Machine Parts:
1. Feeding Inlet
2. Top Cover
3. Observation Hole
4. Screen Frame
5. Sealing Ring
6. Discharging
7. Wire Frame
8. Beam Ring
9. Bottom Frame
10. Pivot Assembly
11. Adjustment Block
12. Screen
13. Vibration Plate
14. Adjustable Bolt
15. Swing Body
16. Choke Spring
17. Main shaft assembly
18. Pulley
19. Base
20. Inspection Hole
21. Motor

Technical Parameters of Large Capacity Vital Wheat Gluten Tumbler Screener Machine with High Precision:

Model	Screen Area (m²)	Layers of Screen	Motor Power (KW)
AM-600	0.28	1~5	0.25
AM-1000	0.72	1~5	1.5
AM-1200	1.10	1~5	1.5
AM-1500	1.80	1~5	2.2
AM-1800	2.30	1~5	4.0
AM-2000	2.60	1~5	4.0
AM-2300	3.90	1~5	4.0
AM-2600	5.30	1~5	5.5
AM-2900	6.40	1~5	5.5

Round Vibrating Screen Machine Vital Wheat Gluten Vibratory Screen Separator 3

BALANCE IS IMPORTANT !! Pneumatic Lifting Device

Application of Large Capacity Vital Wheat Gluten Tumbler Screener Machine with High Precision:

The tumbler screener machine can be used by multiple industry companies that work with material particles required to be filtered, such as:
Food and spices
Chemical
Rubber
Fertilizer
Medicine
Wood and Plywood
Sugar
Plastics
Fodder
Mining
Metallurgy
Salt
Renewable industry
