| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AM |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | Large Screening Capacity And High Accuracy Up To 90%~99.9% | Other Names: | Tumbler Screener, Tumbler Screening Machine, Tumbler Screen, Tumbling Screen Machine |
|---|---|---|---|
| Electric Driver: | Ordinary Motor Drives The Exciter Through The Belt | Movement: | Involute Spiral Motion, Imitate The Manual Screening Action |
| Layers Of Screen: | 1~5 Layers Of Screen Decks | Mesh De-blinding System: | Balls, Ultrasonic System, Rolling Brush Etc. |
| Diameter: | 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, 2300mm Etc. | Applications: | Mineral Powders, Plastic Powders, Bakery Yeast, Glass Beads, Xylitol, Citric Acid, Spherical Mineral Granules, Calcium Carbonate, Nickel Ore, Food Additives, Food Flour, Micronised Materials Etc. |
| High Light: | vibrating sieve screen,vibrating sieve separator |
||

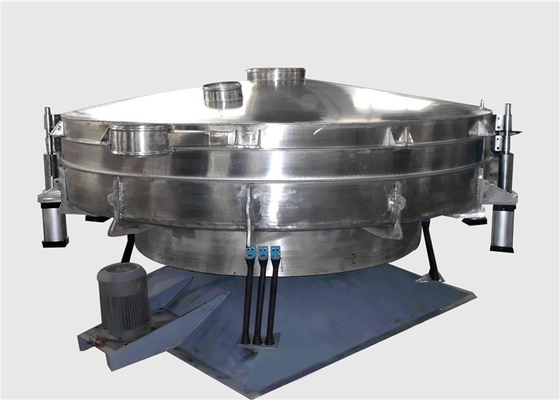

Calcium Carbonate Circular Vibrating Screen Safety Separator Tumbler Sieve
Overview of Calcium Carbonate Tumbler Screening Machines with High Screening Accuracy:
The tumbler screening machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. This kind of sifting equipment is particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 7 particle sizes.
When you have problems with high yield and high precision screening of fine materials, you can consider using our Tumbling Screen Machine.
Important Information About Calcium Carbonate Tumbler Screening Machines with High Screening Accuracy:
| Motion | involute spiral motion |
| Screening Accuracy | upto 90%~99.9% |
| Mesh Cleaning Method | bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning |
| Screen Structure | whole adhesive screen, or splicing segmented screen etc. |
| Layers of Screen | 1~5 layers of screen |
| Diameter | 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm etc. |
| Advantages | soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity |
| Optional | quick clamps, pneumatic lifting devices etc. |
| Motor Brand | Siemens, ABB or other brand according to the client's requirement |
| Application |
it can be used for materials that is flammable, explosive and easy to generate static |
Working Principle of Calcium Carbonate Tumbler Screening Machines with High Screening Accuracy:
Our AM model swinging sieve machine is an artificial imitation of shaking low frequency vibration sieve, working principle is synthesis of transient motion displacement and this displacement in the radial direction of the axis of circular motion (helical motion), can adjust the eccentricity nonlinear three-dimensional motion of the exciter, the material also produces same motion approximation manual jobs, so as to achieve the purpose of screening, combined with sieving attachment can get more ideal screening effect. Suitable for circular, cylindrical, sheet, and even regular shapes easy to block network and require sophisticated sieving materials.
Technical Parameters of Calcium Carbonate Tumbler Screening Machines with High Screening Accuracy:
| Model | AM600 | AM1000 | AM1200 | AM1500 | AM1800 | AM2000 | AM2300 | AM2600 | AM2900 |
| Area of Screen(㎡) | 0.28 | 0.72 | 1.10 | 1.80 | 2.30 | 2.60 | 3.90 | 5.30 | 6.40 |
| Number of Screen Deck | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
| Power(kW) | 0.25 | 1.5 | 1.5 | 2.2 | 4.0 | 4.0 | 4.0 | 5.5 | 5.5 |
| Cleaning System | Options: Rubber Balls, Rotating Brush, Compress Air, Ultrasonic and Scrapper | ||||||||
Features of Calcium Carbonate Tumbler Screening Machines with High Screening Accuracy:
1. Many options for cleaning system: Rubber Balls, Rotating Brush, Compress Air, Ultrasonic and Scrapper, can effectively maintain sieving.
Pneumatic Lifting Device BALANCE IS IMPORTANT !!
Application of Calcium Carbonate Tumbler Screening Machines with High Screening Accuracy:
The tumbler sieve machine is used at powder lines, mill discharge or storage tank discharge for separation, purification, grading, refining, dedusting, filtration.
1. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce etc.
2. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder etc.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon etc.
