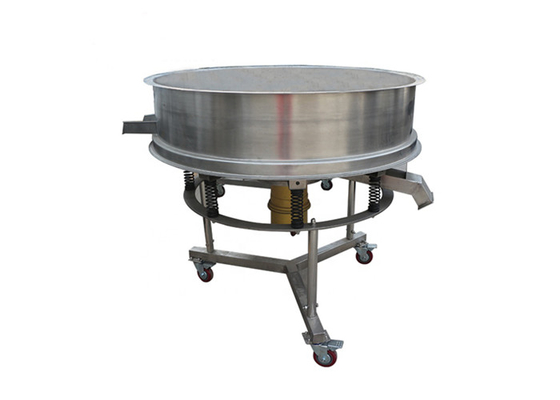

Ceramic Slurry Solid Liquid Separator , High Frequency Vibro Sieve Machine
Introduction of Ceramic Slurry High Frequency Solid Liquid Separator Vibro Sieve Machine:
Ceramic Slurry High Frequency Solid Liquid Separator Vibro Sieve Machine is a new developed equipment aim at slurry filtering. It adopts the new type of vertical vibration motor as vibration source. Frame adopts single screen double clamp structure, which is reliable in structure, strong exciting force, high screening efficiency, low vibration noise, easy to maintain, use safety etc. This machine is convenient for changing screen,long duration, large quantity, a new finer mesh.
Thhe High frequency screen machine is widely used in screening the powder ,grain,mucus for food industry , chemical industry , medicine industry and abrasive ceramics etc.
More Information About Ceramic Slurry High Frequency Solid Liquid Separator Vibro Sieve Machine:
| Name |
ceramic slurry vibrating screen, ceramic glazes vibrating sieve, high frequency vibrating screen, high frequency vibro sifter |
| Features |
high frequency vibration |
| Purpose |
solid-liquid separation, removal of impurities etc. |
| Layers of Screen |
1~2 screen layers (with 2~3 outlets) |
| Motion |
three dimensional vibration |
| Power Source |
single set of verticle vibrating motor |
| Frequency |
3000 times/minute |
| Exciting Force |
3KN~15KN |
| Diameter |
600mm, 800mm, 1000mm, 1200mm etc. |
| Material |
stainless steel 304, 316L etc. |
| Application |
ceramic slurry, ceramic glazes, paper pulp etc. |
Purpose of Ceramic Slurry High Frequency Solid Liquid Separator Vibro Sieve Machine:
1. Dry separation
-Separation of different materials on the basis of their particle shape
-Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
2. Dry classification
-Separation of solid particles into precise sized fractions
-Foods, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives
3. Solid-liquid separation
-Dewatering solids of liquids
-Foods, chemicals, pulp
4. Solids classification in liquid medium
-Separation of solids into sized fraction in liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal
Working Principle of Ceramic Slurry High Frequency Solid Liquid Separator Vibro Sieve Machine:
The high frequency glaze vibrating filter sieve machine is a kind of vibratory screening device. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any product: wet or dry, heavy or light, coarse or fine, hot or cold.
| Center of Gravity Angle |
Main Usage |
Effects |
| 0° |
rough classification |
the raw material flows from the center line to the circumferential direction |
| 15° |
general screening |
start the vortex motion |
| 45° |
precision grading |
the longest vortex motion |
| >90° |
special purpose |
raw materials concentrate to the center |
Characteristics of Ceramic Slurry High Frequency Solid Liquid Separator Vibro Sieve Machine:
1. With high efficiency and precision . Can be used in screening any powder, grain and mucus.
2. With small dimension and light weight ,easy to move. The height can be adjusted freely.
3. High frequency with 3000 t/min. This make the screening effective much more better for fine and high viscosity material.
4. Sieve plate with unique structure ,easy to installation
5. Whole machine are all made of stainless steel except vibration motor .
6. The excellent ratio between screening surface and performances makes the sieve extremely versatile.
7. Mesh support ring easy to disassemble.
8. Fast and easy moving.
9. High efficiency due to high frequency vibrations.
10. Easy replacement of the mesh.
Technical Parameters of Ceramic Slurry High Frequency Solid Liquid Separator Vibro Sieve Machine:
Diameter
(mm) |
Power
(kw) |
Effective Diameter of Mesh
(mm) |
Exciting Force(kN) |
Weight
(kg) |
| 450 |
0.18 |
420 |
3 |
50 |
| 600 |
0.25 |
600 |
5 |
65 |
| 800 |
0.55 |
800 |
8 |
78 |
| 1000 |
0.75 |
970 |
10 |
130 |
| 1200 |
1.1 |
1170 |
15 |
170 |
Application of Ceramic Slurry High Frequency Solid Liquid Separator Vibro Sieve Machine:
The high frequency vibrating screen machine is widely applied to the industries of foodstuff, pharmacy, chemical, abrasive, ceramic, mining, painting, metallurgy, geology and electronics etc.
