|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Purpose:||Dry And Wet Screening, Grading, Remove The Impurity, Dehydration Etc.||Frequency Of Vibration:||3000 Times Per Hour|
|Machine Material:||Contact Part Made Of Stainless Steel||Layers Of Screen:||1~2 Screen Decks|
|Machine Diameter:||600mm, 800mm, 1000mm, 1200mm Etc.||Characteristics:||High Precision, Low Amplitude, High Vibration Frequency, Long Screen Service Life Etc.|
|Application:||Used For Screening Or Grading Operations In Iron Ore, Tin, Tungsten, Tantalum, Niobium And Other Ore Dressing Plants||Applicable Materials:||Paper Pulp, Oil Paint, Ceramic Glazes, Ceramic Slurry Etc.|
wet screening equipment,
wet vibrating screen
Powder Coating Solid Liquid Separator Double Deck Vibrating Screen Open Type
Introduction of Open Type High Frequency Vibrating Filter Screen Machine for Powder Coating:
Open Type High Frequency Vibrating Filter Screen Machine for Powder Coating is composed of vibration exciter, pulp distributor, screen frame, frame, suspension spring and screen. High frequency vibrating screen is used for dewatering and classification after secondary grinding in iron processing plant. Due to the high screening efficiency of this type of screening machine, it can reduce the secondary grinding cycle load, increase the capacity of the primary ball mill table, and also effectively improve iron Grade, processing capacity is generally 3~5 tons per cubic meters.

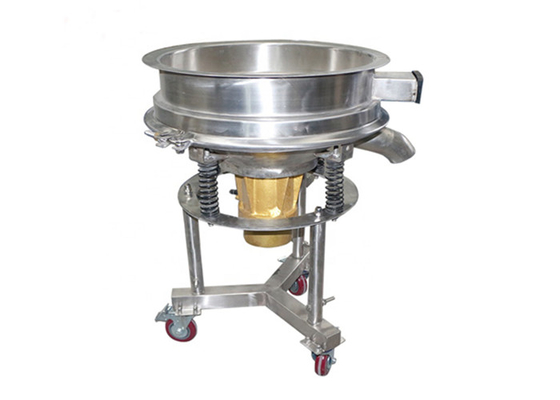

The High Frequency Vibro Screening Machine is special for sieving glaze, pigment and highly viscous fluids. The very high frequency vibration movement enables the use of meshes with very fine mesh size. The trolley, which is adjustable in height, makes the machine easy to move around in production lines and in preparation and storage departments.
Purpose of Open Type High Frequency Vibrating Filter Screen Machine for Powder Coating:
1. Removal of Impurities: the high frequency vibrating sieve can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.
2. Solid-liquid Separation: the high frequency vibro screen machine can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.
More Information About Open Type High Frequency Vibrating Filter Screen Machine for Powder Coating:
|Name||ceramic glazes vibrating sieve, ceramic slurry vibrating screen, high frequency vibrating screen, high frequency vibro sifter|
|Purpose||removal of impurities, solid-liquid separation etc.|
|Layers of Screen||1~2 layers of screen|
|Motion||three dimensional motion|
|Power Source||one set of verticle vibrating motor|
|Frequency||3000 times per minute|
|Diameter||450mm, 600mm, 800mm, 1000mm, 1200mm|
|Material||stainless steel 304, 316L etc.|
|Application||ceramic glazes, ceramic slurry, paper pulp etc.|
Characteristics of Open Type High Frequency Vibrating Filter Screen Machine for Powder Coating:
1. High-power and high-frequency motor, with a water-proof and dust-proof device, long service life, more safe and secure.
2. Fully sealed, the liquid not exposed, large capacity, high screening accuracy, the smallest particle size can be screened to 500 mesh.
3. Small size, light weight, simple operation, easy maintenance.
4. High efficient with low energy, automatic grading, smooth movement, low noise, continuous production.
5. New grid structure, the long service life of screen, no deformation of the mesh, changing the screen mesh only take 3-5 minutes, no angle without reaching, easy to clean and disinfect.
6. All kinds of slurry in the insoluble material can be quickly removed, the residue automatically discharged.
Working Principle of Open Type High Frequency Vibrating Filter Screen Machine for Powder Coating:
The high frequency glaze vibrating filter sieve machine is a kind of vibratory screening device. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any product: wet or dry, heavy or light, coarse or fine, hot or cold.
|Center of Gravity Angle||Main Usage||Effects|
|0°||rough classification||the raw material flows from the center line to the circumferential direction|
|15°||general screening||start the vortex motion|
|45°||precision grading||the longest vortex motion|
|>90°||special purpose||raw materials concentrate to the center|
Technical Parameters of Open Type High Frequency Vibrating Filter Screen Machine for Powder Coating:
|Effective Diameter of Mesh
Application of Open Type High Frequency Vibrating Filter Screen Machine for Powder Coating:
The high frequency is used in the high frequency sieve machine, which destroys the tension of the slurry surface, causes the high speed oscillation of the fine grained material on the sieve surface, accelerates the separation of the useful minerals of the large density (specific gravity), and increases the probability of less than the contact between the separated particle size material and the sieve hole. As a result, the separation condition is better, and the material smaller than the separation grain size, especially the material which is more important, passes through the sieve hole together to become the product under the sieve.
High frequency vibro sieve is widely used in dry, wet screening, grading and dehydration of all kinds of materials in mineral processing, coal preparation, chemical industry, brick making, food, pharmaceutical, alkali making, chemical fertilizer, paper making and so on. The screening efficiency is more than 70% under the conditions of proper feed concentration, feed grain size (below 200 mesh grain size), and the difference between feed grain size and feed grain size under demand sieve is less than 30 percentage points.
