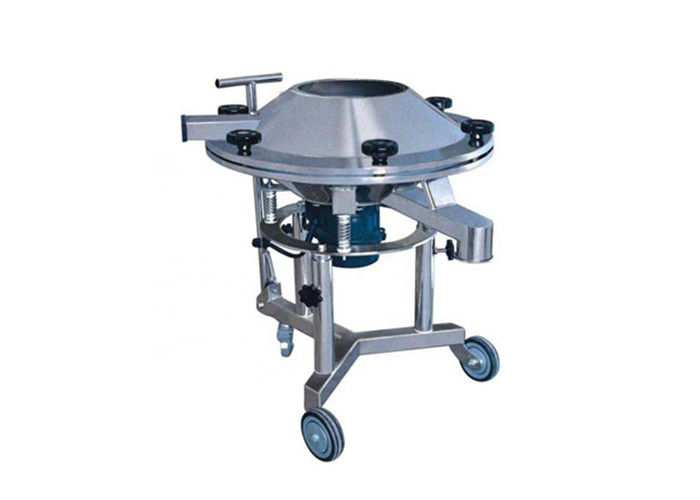

Movable Solid Liquid Separator Ultrasonic Sieving Machine For Liquid Slurry

Movable Solid Liquid Separator Ultrasonic Sieving Machine For Liquid Slurry

  • Movable Solid Liquid Separator Ultrasonic Sieving Machine For Liquid Slurry
  • Movable Solid Liquid Separator Ultrasonic Sieving Machine For Liquid Slurry
Movable Solid Liquid Separator Ultrasonic Sieving Machine For Liquid Slurry
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Features: High-frequency Vibration Characteristics: High Screening Accuracy, High Efficiency, And High Screen Utilization Etc.
Diameter: 450mm, 600mm, 800mm, 1000mm, 1200mm Etc. Vibration Frequency: 3000 Times Per Minute
Power Source: One Verticle Vibrating Motor Motion: Three Dimensional Motion
Purpose: Removal Of Impurities, Solid-liquid Separation Etc. Application: Suitable For Mineral Processing, Coal Preparation, Chemical, Brick, Food, Pharmaceutical, Alkali, Chemical Fertilizer, Paper Making Etc.
High Light:

wet screening equipment

,

sieve separator machine

Movable Solid Liquid Separator Ultrasonic Sieving Machine For Liquid Slurry



Introduction of Movable High Frequency Vibrating Sieve Machine for Liquid Slurry​:

Movable High Frequency Vibrating Sieve Machine for Liquid Slurry has high efficiency, small amplitude, and high screening frequency. It is an effective equipment for screening and classifying fine-grained materials. The high-frequency sieve has created better separation conditions, so that materials smaller than the separation size, especially the particles with a larger specific gravity, pass through the sieve holes and become the under-sieve product.



More Information About Movable High Frequency Vibrating Sieve Machine for Liquid Slurry​:

Name high frequency vibrating screen, high frequency vibro sifter
Features high-frequency vibration
Layers of Screen 1~2 layers of screen
Motion three dimensional motion
Power Source one set of verticle vibrating motor
Frequency 3000 times per minute
Exciting Force 3000N~15000N
Diameter 450mm, 600mm, 800mm, 1000mm, 1200mm
Material stainless steel 304, 316L etc.
Application ceramic glazes, ceramic slurry, powder coating, soybean milk, etc.



Features of Movable High Frequency Vibrating Sieve Machine for Liquid Slurry:

1. High vibration frequency and low amplitude can effectively reduce the surface tension of the pulp, which is conducive to the separation and delamination of fine and heavy materials and accelerates the penetration of fine and heavy materials.
2. Using laminated screen, single-layer aperture increases, screen life increases, anti-blocking and anti-wear
3. The vibrator uses the principle of resonance. The dual-mass body works in the critical resonance state. The required driving power is small, there is no large starting current at startup, and the noise is low.
4. The rubber spring supports the screen frame, vibration isolation and sound absorption, low noise, small dynamic load of the equipment, and no concrete foundation is required.
5. The sieve machine is designed with a new principle and is a highly efficient vibrating screen machine with a new structure.
6. The exciter drives the screen surface to make high-frequency vibration through the transmission mechanism, and the screen box is stationary. The vibration system is designed to work in a near-resonance state. The whole machine is supported by vibration reduction, so that the ground basically does not bear dynamic loads. The sieve machine does not need to be a foundation. It can be directly installed on a solid and flat ground or an ordinary steel structure platform to work normally.



Purpose of Movable High Frequency Vibrating Sieve Machine for Liquid Slurry​​:

1. Solid-liquid Separation: the high frequency vibro screen machine can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.

2. Removal of Impurities: the high frequency vibrating sieve can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.



Working Principle of Movable High Frequency Vibrating Sieve Machine for Liquid Slurry:

  The main working part of the high frequency vibrating screen is a rotor with a hammer (also known as a hammer head). The motor drives the rotor to rotate at high speed in the crushing cavity. The material is fed into the machine from the upper feeding port, and is crushed by the impact, impact, shearing and grinding of a high-speed moving hammer. In the lower part of the rotor, there is a sieve plate, and the particle size of the crushed material that is smaller than the sieve hole size is discharged through the sieve plate. The coarse particle size that is larger than the sieve size is retained on the sieve plate and continues to be hit and ground by the hammer drain the machine.



Center of Gravity Angle Main Usage Effects
rough classification the raw material flows from the center line to the circumferential direction
15° general screening start the vortex motion
45° precision grading the longest vortex motion
>90° special purpose raw materials concentrate to the center

Movable Solid Liquid Separator Ultrasonic Sieving Machine For Liquid Slurry 0



Technical Parameters of Movable High Frequency Vibrating Sieve Machine for Liquid Slurry:

Diameter
(mm)
Power
(kw)
Effective Diameter of Mesh
(mm)
Exciting Force(kN) Weight
(kg)
450 0.18 420 3 50
600 0.25 600 5 65
800 0.55 800 8 78
1000 0.75 970 10 130
1200 1.1 1170 15 170



Application of Movable High Frequency Vibrating Sieve Machine for Liquid Slurry:

  High frequency vibrating sieve is suitable for dry, wet sieving, classification and dehydration of various materials in industries such as ore dressing, coal preparation, chemical industry, brick making, food, pharmaceutical, alkali making, fertilizer, paper making and other industries. It is used for fine-grain classification in the ore classification process of the beneficiation plant. At the appropriate feed concentration, feed size (-200 mesh size content), and the difference between the size under the sieve and the feed size is less than 30% Under the conditions, the screening efficiency is as high as 70% or more.



Movable Solid Liquid Separator Ultrasonic Sieving Machine For Liquid Slurry 1
