|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Features:||Screen Frame Heightening, The Outlet Is At The Vibration Body||Purpose:||Filtering Slurry, Solid-liquid Separation, Removal Of Impurity|
|Characteristics:||Large Output, Long Screen Service, Single-mesh Design Etc.||Material:||Stainless Steel 304, 316L Etc.|
|Surface Treatment:||Polish, Paint, Sandblast Etc.||Filter Precision:||Can Reach 500 Mesh|
|Screen Structure:||Single-mesh Screen||Application:||Coating, White Clay Mud, Ceramic Slurry, Ceramic Glaze Etc.|
wet screening equipment,
wet vibrating screen

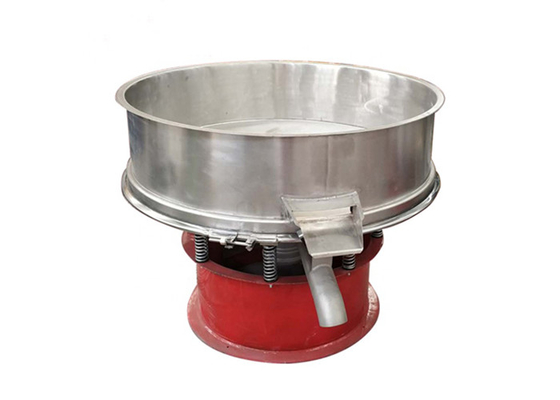

Ceramic Slurry Mud Solid Liquid Separator Special Tumbler Screener Machine
Introduction of Economic Ceramic Slurry Mud Special Vibrating Filter Screening Machine:
Economic Ceramic Slurry Mud Special Vibrating Filter Screening Machine is also well known as the ceramic glaze filter sieve or ceramic slurry screen machine. It is mainly used for ceramic glaze, or ceramic slurry filtration to remove impurities.
Application of Economic Ceramic Slurry Mud Special Vibrating Filter Screening Machine:
1. Ceramic industry: ceramic slurry, ceramic glaze, etc.
2. Paper industry: coating, white clay mud, black and white liquid, waste liquid, paper making liquid, wastewater recycling, etc.
3. Environmental protection: garbage, human waste, urine, waste oil, food waste water, waste water processing, etc.
4. Chemical industry: paint, coating, bleach, etc.
5. Pharmaceutical industry: traditional Chinese medicine slurry, western medicine slurry, pharmaceutical intermediates, etc.
6. Food industry: soy sauce, vinegar, soybean milk, fruit juice, pineapple juice, rice wine, rice wine, bean dregs, yeast solution, beverages, etc.
7. Pollution treatment: wastewater, waste oil, pig drying urine, dyeing and finishing wastewater, etc.
Working Principle of Economic Ceramic Slurry Mud Special Vibrating Filter Screening Machine:
The ceramic mud filter screen machine adopts vertical motor as the excitation source, the motor, the lower two ends are installed eccentric block. By adjusting the phase angle of the eccentric block can change the rotating motion of the motor to horizontal, vertical, inclined three-dimensional motion, and then transfer this motion to the screen surface.
1. When the upper and lower eccentric blocks are adjusted to 90 degrees, the material is concentrated from all around to the middle and filtered with wet type.
2. When the upper and lower eccentric blocks are adjusted to 45 degrees, the material is dispersed in a rapid swirl, which is used to sift fine materials.
3. When the upper and lower eccentric blocks are adjusted to 15 degrees, the material is dispersed in a swirling shape to screen the general material.
4. When the upper and lower eccentric blocks are adjusted to 0 degrees, the material is dispersed from the middle to the four sides, which is used to sift the rough material in large quantities.
|Center of Gravity Angle||Purpose||Effect|
|0°||rough classification||the raw material flows from the center line to the circumferential direction|
|15°||general screening||start the vortex motion|
|45°||precision grading||the longest vortex motion|
|>90°||special purpose||raw materials concentrate to the center|
Purpose of Economic Ceramic Slurry Mud Special Vibrating Filter Screening Machine:
1. Solids classification in liquid medium
-Separation of solids into sized fraction in liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal
2. Solid-liquid separation
-Dewatering solids of liquids
-Foods, chemicals, pulp
Characteristics of Economic Ceramic Slurry Mud Special Vibrating Filter Screening Machine:
1. According to the manufacturing experience of ceramics, food, medicine, chemical and other industries, the whole machine design is more reasonable, the use is simpler, and the maintenance is more convenient.
2. The slurry filter screen is specially designed with a screen frame, which has a higher height and effectively prevents slurry splashing.
3. Sandblasting / plastic spraying (optional) treatment of vibrating body and sieve frame, the industry has better anti-corrosion and anti-rust effect, and the equipment is used longer.
4. The ceramic slurry filter screen uses a 4-level aluminum housing vibration motor (optional), which has faster heat dissipation, simpler maintenance and longer service life than other brands in the industry.
5, mature vibration motor technology, the overall equipment is more energy-efficient, smaller power consumption, stronger excitation force.
6. Adopt high rubber content sealing ring to effectively prevent slurry leakage.
7, no cover design, easy to observe the screen surface, the discharge port can be freely rotated 360 degrees, the screen is easy to replace and clean.
8. The mature single-net double-hoop net rack is selected, and the under-sieve material outlet is located on the vibrating body, which speeds up the discharge speed and has higher efficiency per unit time.
9. The height of the bottom can be designed according to the user's requirements, without foundation installation.
Technical Parameters of Economic Ceramic Slurry Mud Special Vibrating Filter Screening Machine:
|Diameter||Power||Effective Diameter||Largest Vibration Force|
|800 mm||0.55 KW||800 mm||8 KN|
|1000 mm||0.75 KW||970 mm||10 KN|
|1200 mm||1.1 KW||1170 mm||15 KN|
Note: The above data are for reference only. Our company reserve the right to modify the above data.
Firstly, kaolin, ceramic powder and other raw materials are ground and mixed uniformly by a ball mushroom machine according to the proportion of the ceramic formula, and then they are passed through the first pass of a vibrating screen and sieved. At this time, the number of sieved meshes is between 30-50 mesh. The sieved raw material enters the slurry tank, and then water is added and mixed thoroughly by a stirrer. The slurry is sieved through a vibrating screen. At this time, the number of sieved mesh is between 80-325 mesh. The number of meshes depends on the requirements of the product. The resulting slurry then enters a ceramic kiln for drying into ceramic particles, is then shaped by a press, and then calcined into a kiln. After polishing, uranium needs to be applied when making uranium bricks. When applying uranium, it is necessary to filter the uranium material with a vibration filter. The above is the main process of ceramic production.
